72042 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) FUEL TANK AND HYDRO RESERVOIR Parts Diagram

Yard Tractor

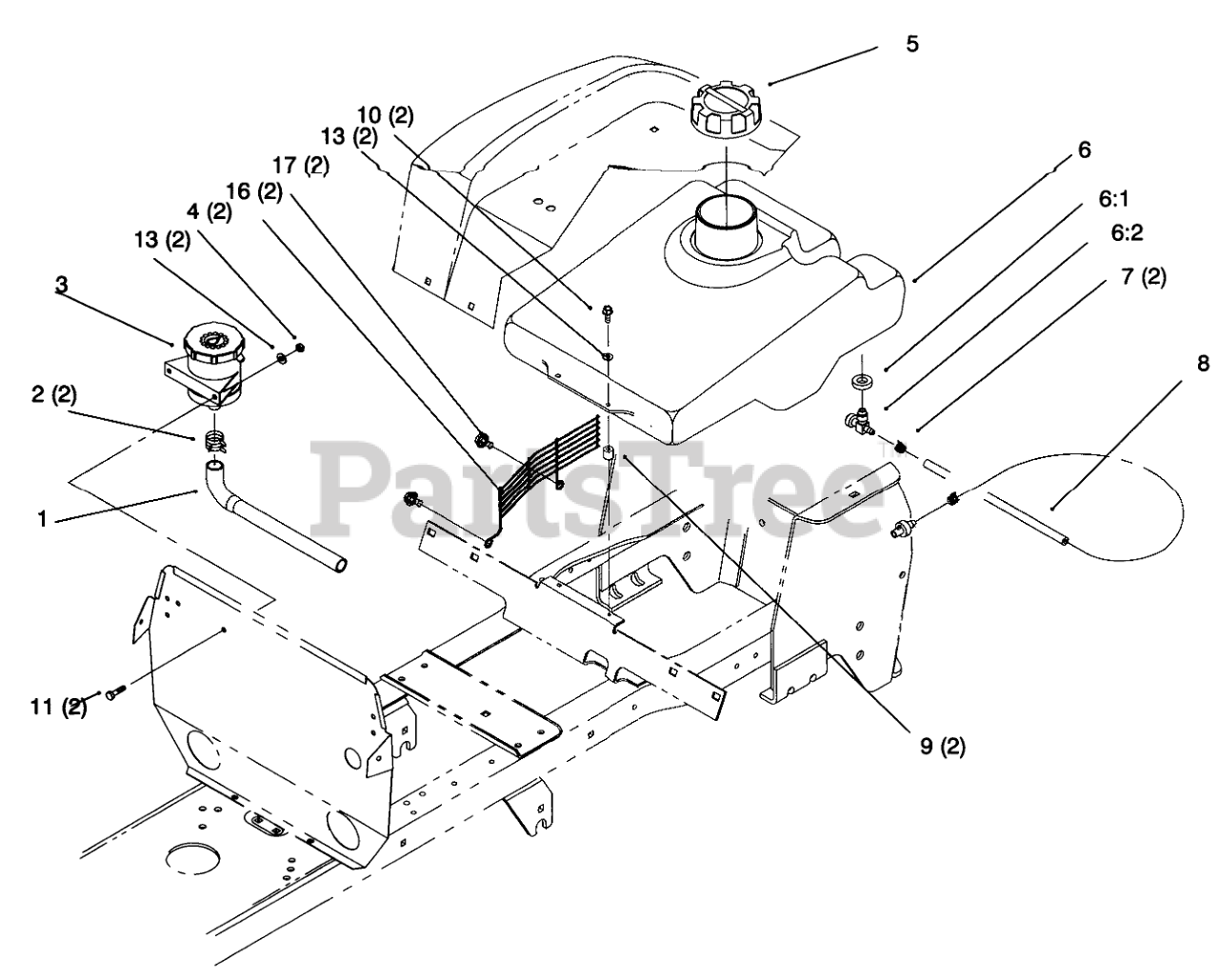

FUEL TANK AND HYDRO RESERVOIR Parts Diagram

  • Title

1

Toro 92-6737

Hose (Only On: 72043, 72063, 72103)

$184.99

$

Usually ships in 3-6 days

0

2

Toro 2412-129

Clamp-Hose (Only On: 72043, 72063, 72103)

$4.99

$

In Stock, Qty 7

0

3

Toro 79-3500

Reservoir (Only On: 72043, 72063, 72103)

$

$

Not available

4

Toro 3296-42

Nut-Lock (Only On: 72043, 72063, 72103)

$0.99

$

In Stock, Qty 20+

0

5

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 10

0

6

Toro 92-6506

Tank-Gas
(Superseded to 94-6928)

$

$

Not available

6:1

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

6:2

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 5

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 92-6754

Hose-Fuel Line (Only On: 72042, 72043, 72062, 72063)

$41.99

$

Usually ships in 3-6 days

0

8

Toro 93-1627

Hose-Fuel Line (Only On: 72103)

$

$

Not available

9

Toro 93-1144

Spacer-Fuel Tank (Only On: 72043, 72063, 72103)

$

$

Not available

10

Toro 32104-96

Screw-HHST (Only On: 72043, 72063, 72103)

$6.49

$

In Stock, Qty 5

0

10

Toro 32144-4

Screw-TAP (Only On: 72042, 72062)

$1.49

$

In Stock, Qty 20+

0

11

Toro 321-4

Screw-HH (Only On: 72043, 72063, 72103)

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-22

Washer-Flat (Only On: 72043, 72063, 72103)

$0.99

$

In Stock, Qty 20+

0

16

Toro 93-9275

Guard-Fan (Only On: 72063, 72103)

$

$

Not available

17

Toro 32144-14

Screw-HWHTF (Only On: 72063, 72103)

$4.99

$

In Stock, only 3 left!

0
