72042 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) IGNITION/ELECTRICAL Parts Diagram

Yard Tractor

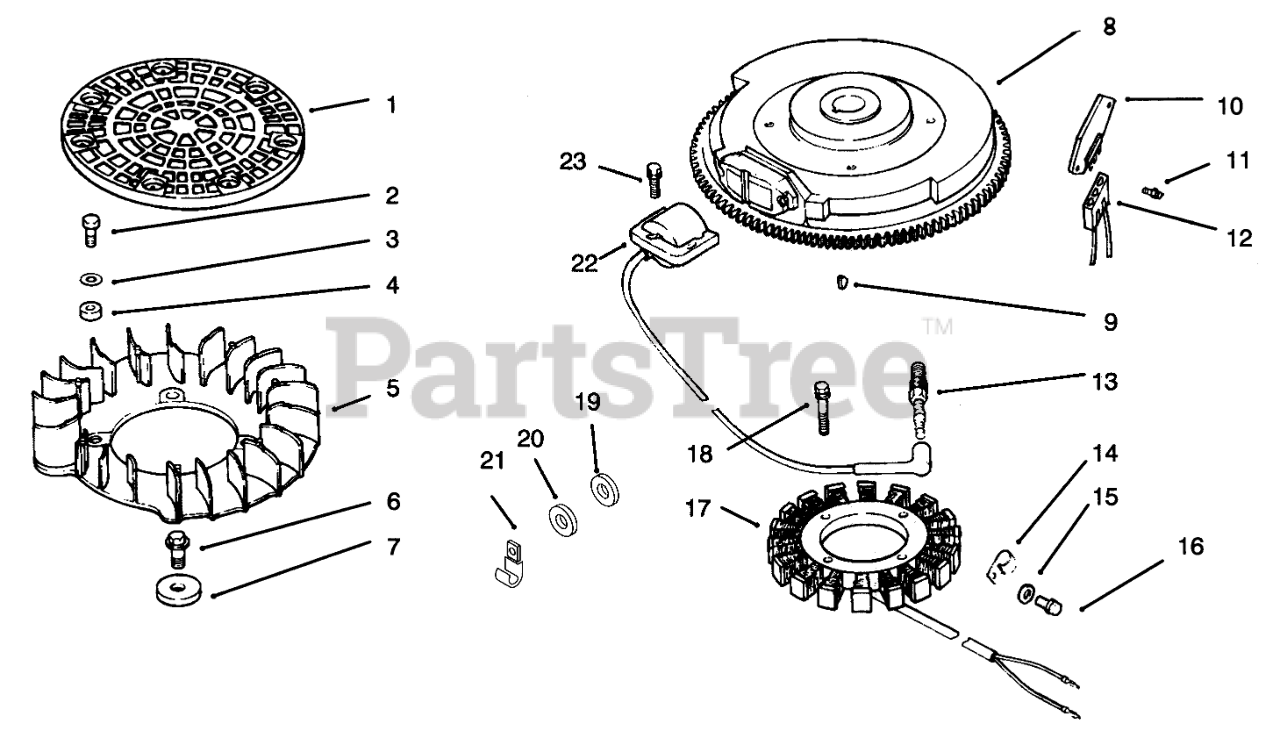

IGNITION/ELECTRICAL Parts Diagram

  • Title

1

Toro 2416217

Screen-Grass (Only On: 72103)

$

$

Currently unavailable

2

Toro M-0401025

Screw M4x0.7x24 (Only On: 72103)

$

$

Currently unavailable

3

Kohler X-25-92

Washer-Flat (Only On: 72103)
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

4

2411204

Spacer-Fan (Only On: 72103)

$

$

Not available

5

2415703

Fan (Only On: 72103)

$

$

Not available

6

Kohler M-0639016

Screw M6x1.0x16 (Only On: 72103)
(Superseded to M-639016)

$2.49

$

In Stock, only 3 left!

0

7

1211201

Spacer-Fan (Only On: 72103)

$

$

Not available

8

2402504

Flywheel ASM (Only On: 72103)

$

$

Not available

9

Kohler X-42-15

Key (Only On: 72103)
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 5

0

10

Kohler 25 403 03

Rectifier-Regulator (Only On: 72103)
(Superseded to 25 403 03-S)

$105.99

$

In Stock, Qty 8

0

11

Kohler 24 086 06

Screw-Phillips (Only On: 72103)
(Superseded to 24 086 06-S)

$2.49

$

In Stock, Qty 7

0

12

Kohler 236602

Connector-Regulator (Only On: 72103)
(Superseded to 236602-S)

$7.99

$

In Stock, Qty 13

0

13

Kohler 12 132 02

Spark Plug (Only On: 72103)
(Superseded to 12 132 02-S)

$3.49

$

In Stock, Qty 20+

0

14

Kohler 48 154 02

Clip-Stator Harness (Only On: 72103)
(Superseded to 48 154 02-S)

$16.99

$

Usually ships in 2-5 days

0

15

Kohler 12 468 03

Washer-Flywheel Screw (Only On: 72103)
(Superseded to 12 468 03-S)

$6.49

$

In Stock, only 1 left!

0

16

Kohler 12 086 14

Screw-Flywheel Mounting (Only On: 72103)
(Superseded to 25 086 361-S)

$3.49

$

Usually ships in 2-5 days

0

17

2408501

Stator-15 Amp (Only On: 72103)

$

$

Not available

18

Kohler M-0548025

Screw M5x0.8x25 (Only On: 72103)
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

19

Kohler X-25-63

Washer-Flat (Only On: 72103)
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

20

Kohler X-25-92

Washer-Flat (Only On: 72103)
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

21

Kohler 235173

Clip-Cable (Only On: 72103)
(Superseded to 235173-S)

$11.99

$

Usually ships in 2-5 days

0

22

Kohler 24 584 01

Module-Ignition (Only On: 72103)
(Superseded to 24 584 01-S)

$

$

Not available

23

Kohler M-0545020

Screw M5x0.8x20 (Only On: 72103)

$

$

Not available

2411318

Decal-Grass Screen (Only On: 72103)

Note: Not illustrated

$

$

Not available

2417606

Harness-Wire (Only On: 72103)

Note: Not illustrated

$

$

Not available

2451804

Lead-Green (Only On: 72103)

Note: Not illustrated

$

$

Not available
