72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) CRANKCASE Parts Diagram

Lawn & Garden Tractor

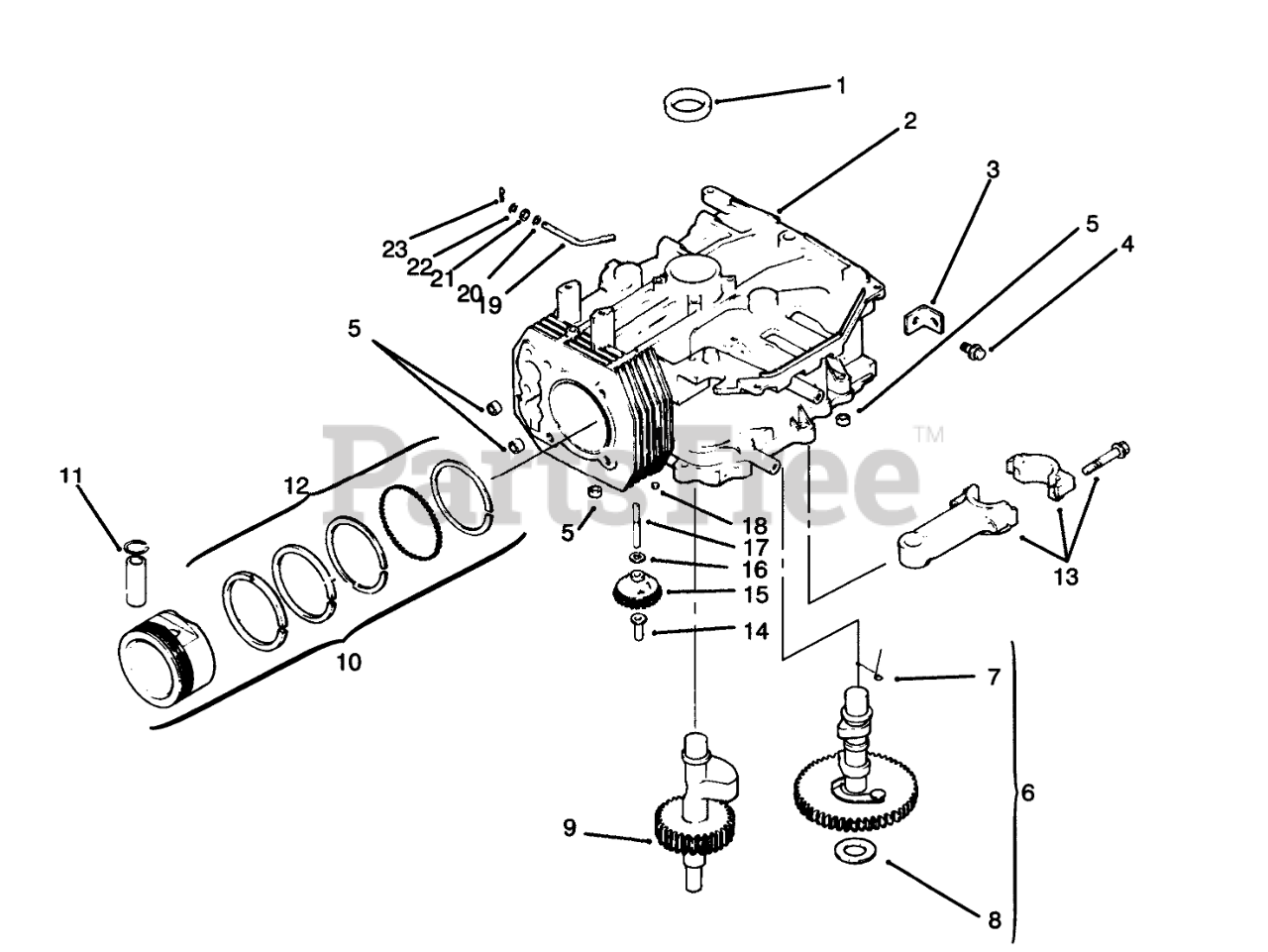

CRANKCASE Parts Diagram

  • Title

1

12_032_03

Seal-Oil

$

$

Not available

2

Toro 12_522_19

Block-Short

Note: Not illustrated

$

$

Currently unavailable

3

Toro 12_445_02

Strap-Liting

$

$

Currently unavailable

4

Kohler M-0839025

Screw
(Superseded to M-839025)

$2.49

$

In Stock, only 3 left!

0

5

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

6

12_010_02

Camshaft Assembly

$

$

Not available

7

12_089_18

Spring-Actuating

Note: Included in a service kit or in an assembly

$

$

Not available

8

Toro 12_422_07

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_08

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_09

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_10

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_11

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_12

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_13

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

9

12_144_19

Shaft-Balance

$

$

Not available

10

12_874_07

Piston ASM STD Incl 11-2

$

$

Not available

10

12_874_08

Piston ASM .25 Incl 11-2

$

$

Not available

10

12_874_09

Piston ASM .50 Incl 11-2

$

$

Not available

11

12_018_02

Retainer-Piston Pin

Note: Included in a service kit or in an assembly

$

$

Not available

12

12_018_07

Ring Set STD

$

$

Not available

12

12_018_08

Ring Set .25

$

$

Not available

12

12_018_09

Ring Set .50

$

$

Not available

13

12_067_01

Connecting Rod STD

$

$

Not available

13

12_067_02

Connecting Rod .25

$

$

Not available

14

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

15

12_043_05

Gear-Governor ASM

$

$

Not available

16

Kohler M-0631005

Washer
(Superseded to M-631005)

$2.49

$

In Stock, Qty 8

0

17

12_144_02

Shaft-Govenor Gear

$

$

Not available

18

Toro 52_139_09

Cup

$

$

Currently unavailable

19

12_144_01

Rod-Push

$

$

Not available

20

Kohler SM-0631015

Washer

$

$

Not available

21

12_032_01

Seal

$

$

Not available

22

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 10

0

23

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable

12_722_59

Gasket Set

Note: Not illustrated

$

$

Not available
