72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) FENDER AND FOOTREST Parts Diagram

Lawn & Garden Tractor

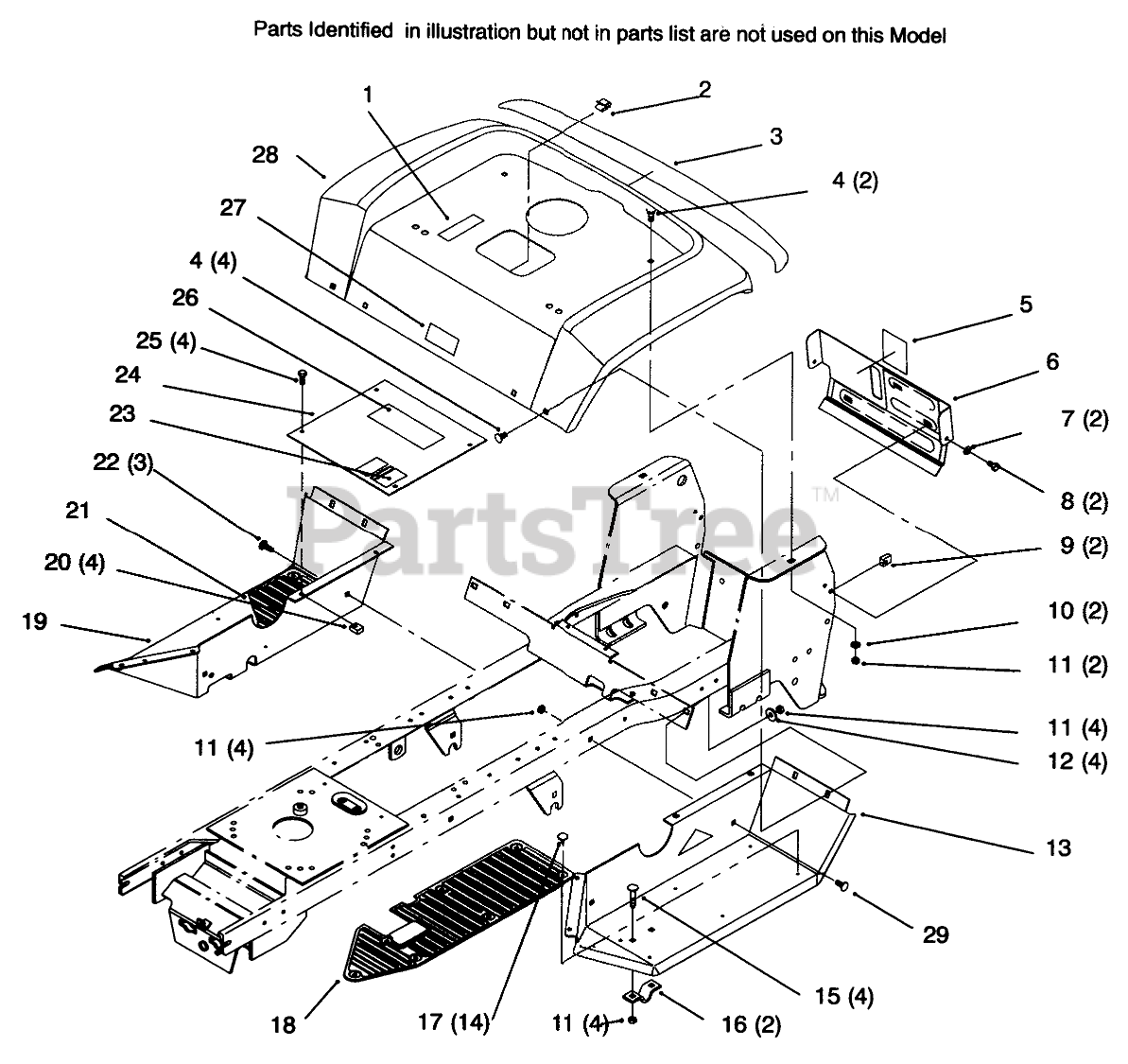

FENDER AND FOOTREST Parts Diagram

  • Title

2

Toro 702366

CLIP-RETAINER, WIRE

$7.99

$

Usually ships in 3-6 days

0

3

Toro 92-6730

DECAL - REAR FENDER

$21.99

$

Usually ships in 3-6 days

0

4

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

5

Toro 92-6727

DECAL-LEVEL, FUEL

$10.99

$

Usually ships in 3-6 days

0

6

Toro 94-1717-03

WA- REAR COVER (BLACK)

$

$

Not available

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 609900

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 94-2869

WASHER

$1.49

$

In Stock, Qty 5

0

13

Toro 92-6745-01

LH FOOTREST

$298.99

$

Usually ships in 3-6 days

0

15

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

16

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

17

Toro 3290-479

FASTENER-PANEL

$3.99

$

In Stock, Qty 20+

0

18

Toro 92-6690

FOOT MAT-LH

$

$

Not available

19

Toro 92-6744-01

FOOTREST-RH

$298.99

$

Usually ships in 3-6 days

0

20

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

21

Toro 92-6689

FOOT MAT-RH

$

$

Not available

22

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

23

Toro 92-6725

DECAL - HOC

$13.99

$

Usually ships in 3-6 days

0

24

Toro 93-0489-01

PLT - FTREST W/DECAL

$

$

Not available

25

Toro 92-7020

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

26

Toro 92-8946

DECAL-DANGER

$6.49

$

Usually ships in 3-6 days

0

27

Toro 76-1340

DECAL - USA

$14.99

$

In Stock, only 1 left!

0

28

Toro 92-6795-01

FENDER

$

$

Not available

29

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0
