72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) STARTING SYSTEM Parts Diagram

Lawn & Garden Tractor

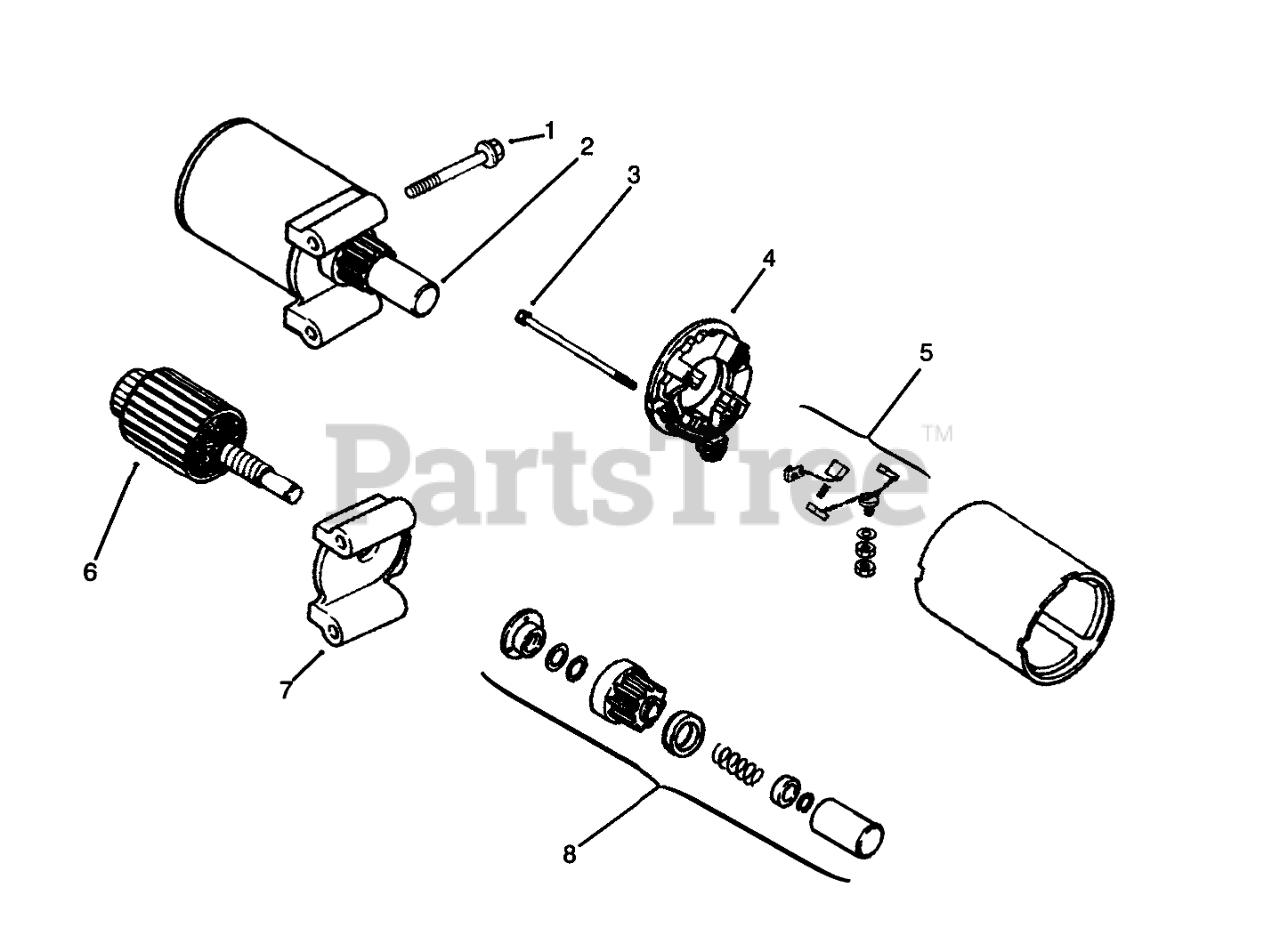

STARTING SYSTEM Parts Diagram

  • Title

1

Toro M0839070

Screw M8x1.25x70

$

$

Currently unavailable

2

12_098_13

Starter ASM Incl 3-8

$

$

Not available

3

12_086_25

Screw-HF

Note: Included in a service kit or in an assembly

$

$

Not available

4

12_227_11

Cap-Commutator Incl 5

Note: Included in a service kit or in an assembly

$

$

Not available

5

82_755_28

Kit-Brush And Spring

Note: Included in a service kit or in an assembly

$

$

Not available

6

12_170_03

Armature-Starter

Note: Included in a service kit or in an assembly

$

$

Not available

7

Toro 12_227_05

Cap-Drive End

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

12_755_53

Kit-Drive

Note: Included in a service kit or in an assembly

$

$

Not available

52_357_01

Lubricant

Note: Not illustrated

$

$

Not available
