72046 (265-H) - Toro Lawn & Garden Tractor (SN: 089000001 - 089000399) (1998) FRAME Parts Diagram

Lawn & Garden Tractor

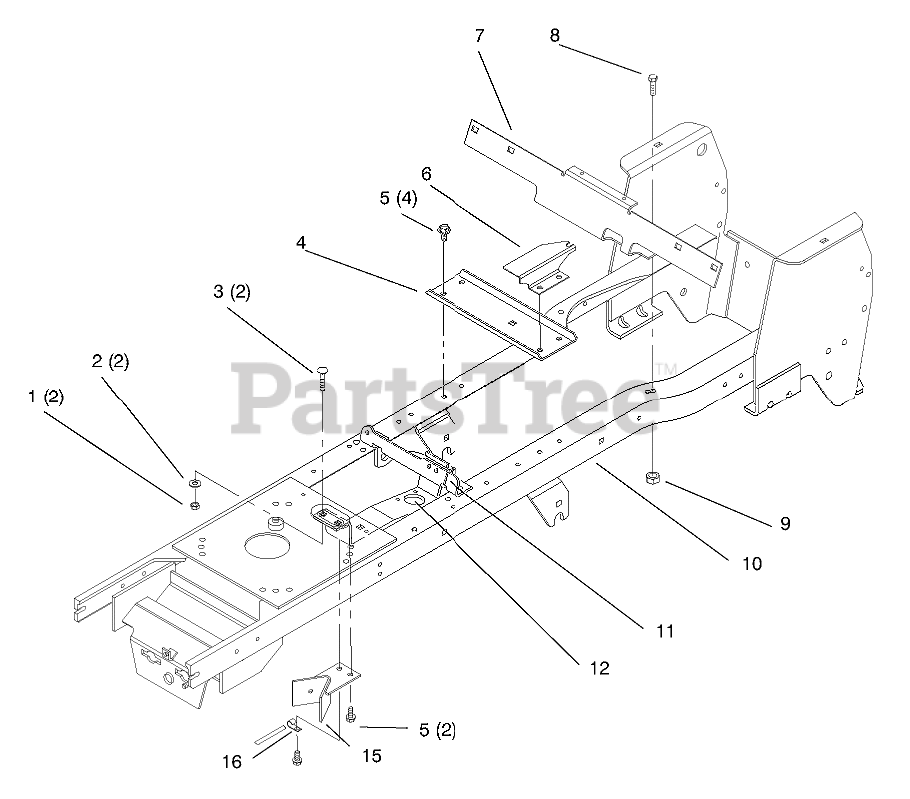

FRAME Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

4

Toro 92-6868-03

BRACKET-IDLER PLATE

$33.99

$

Usually ships in 3-6 days

0

5

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

6

Toro 92-6964-03

BRACKET-HOC GAGE

$

$

Not available

7

Toro 92-6674-03

SUPPORT - FENDER
(Superseded to 100-1341-03)

$

$

Not available

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 94-2668

Frame
(Superseded to 99-6772-03)

$1287.99

$

Usually ships in 3-6 days

0

12

Toro 92-6992-03

STEERING BRKT WA

$

$

Not available

13

Toro 93-7324

Decal-Installation (Only On: 72064

$

$

Not available

14

Toro 92-8747

DECAL-ATTACH A-MATIC

$6.49

$

In Stock, only 1 left!

0

15

Toro 78-2491-03

WLDMT-PTO STOP

$45.99

$

Usually ships in 3-6 days

0

16

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0
