72063 (264-H) - Toro Yard Tractor (SN: 059000001 - 059000498) (1995) HOOD AND GRILL Parts Diagram

Yard Tractor

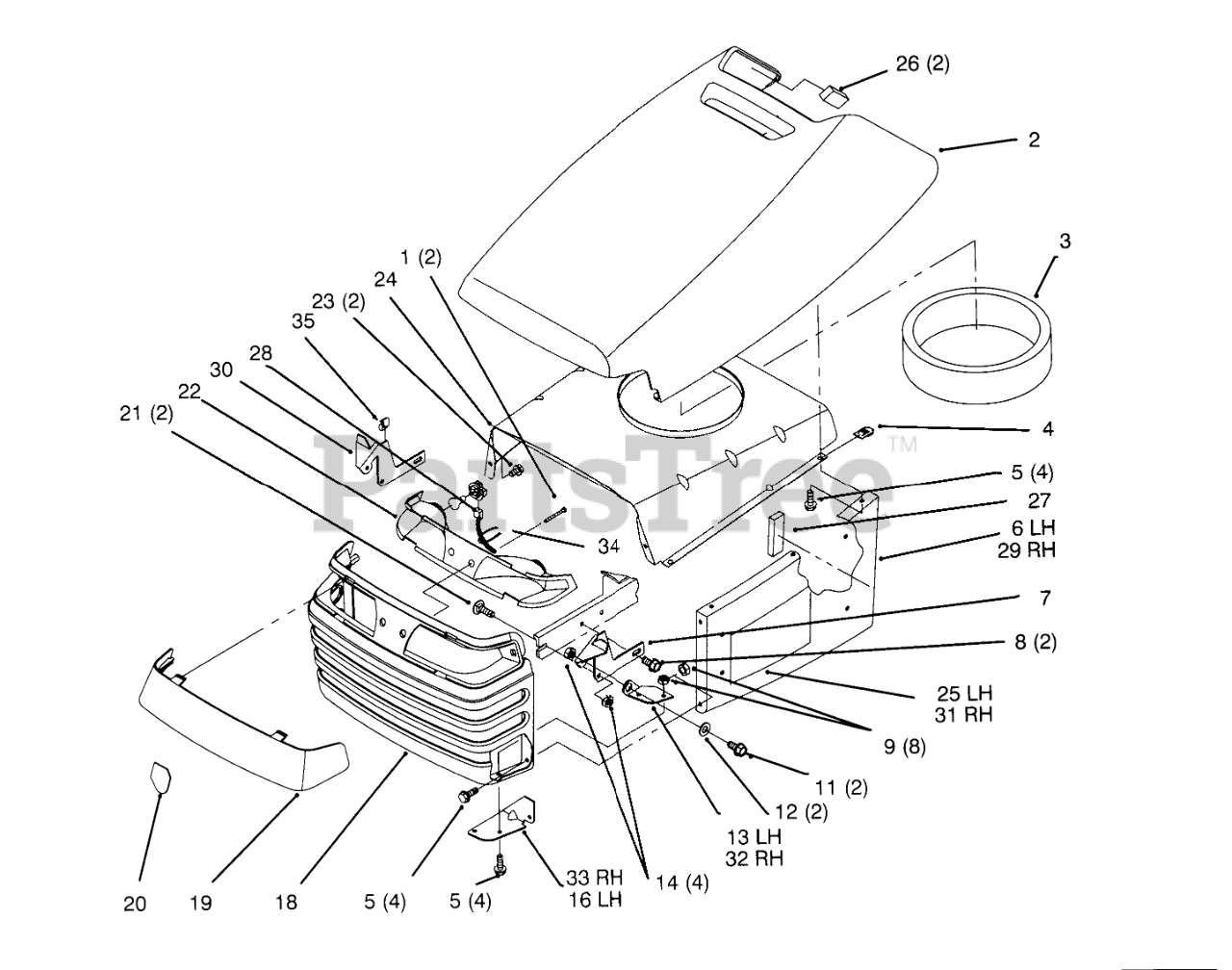

HOOD AND GRILL Parts Diagram

  • Title

1

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

2

Toro 93-0490

HOOD ASM

$

$

Not available

3

Toro 92-7076

Inlet-Seal Air (Only On: 72103)

$63.99

$

Usually ships in 3-6 days

0

3

Toro 92-7077

Inlet-Seal Air (Only On: 72042, 72043, 72062, 72063)

$85.99

$

Usually ships in 3-6 days

0

4

Toro 92-7006

NUT

$4.99

$

Usually ships in 3-6 days

0

5

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

6

Toro 93-0491

HOOD-SIDE, LH

$165.99

$

Usually ships in 3-6 days

0

7

Toro 92-6918-03

BRACKET-HINGE, LH

$60.99

$

Usually ships in 3-6 days

0

8

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

9

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

13

Toro 92-6997-03

HINGE-HOOD, LH

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 92-7049-03

BRACKET-HOOD HINGE, RH

$6.99

$

Usually ships in 3-6 days

0

18

Toro 93-0494

Screen/Grill ASM
(Superseded to 100-1344)

$

$

Not available

19

Toro 92-6656

LENS - HEADLIGHT

$90.99

$

Usually ships in 3-6 days

0

20

Toro 92-6987

EMBLEM-HORSEHEAD
(Superseded to 95-4248)

$28.99

$

Usually ships in 3-6 days

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 88-3970

HEADLIGHT REFLECTOR ASM

$152.99

$

Usually ships in 3-6 days

0

23

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

24

Toro 92-6914-03

BAFFLE-HOOD, UPPER

$

$

Not available

25

Toro 92-6728

DECAL - LH HOOD

$

$

Not available

26

Toro 92-7147

Foam-Hood
(Superseded to 94-1980)

$3.49

$

In Stock, Qty 8

0

27

Toro 92-7148

FOAM-SIDEPANEL

$3.49

$

Usually ships in 3-6 days

0

28

Toro 88-4320

HARNESS-WIRE, LIGHTS

$65.99

$

Usually ships in 3-6 days

0

29

Toro 93-0492

HOOD-SIDE, RH

$

$

Not available

30

Toro 92-6917-03

BRACKET-HINGE, RH

$

$

Not available

31

Toro 92-6729

DECAL - RH HOOD

$

$

Not available

32

Toro 92-6996-03

HINGE-HOOD, RH

$10.99

$

Usually ships in 3-6 days

0

33

Toro 92-7048-03

BRACKET-HOOD HINGE, LH

$6.99

$

Usually ships in 3-6 days

0

34

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

35

Toro 702366

CLIP-RETAINER, WIRE

$7.99

$

Usually ships in 3-6 days

0
