72071 (265-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) BLOWER HOUSING & BAFFLES Parts Diagram

Lawn & Garden Tractor

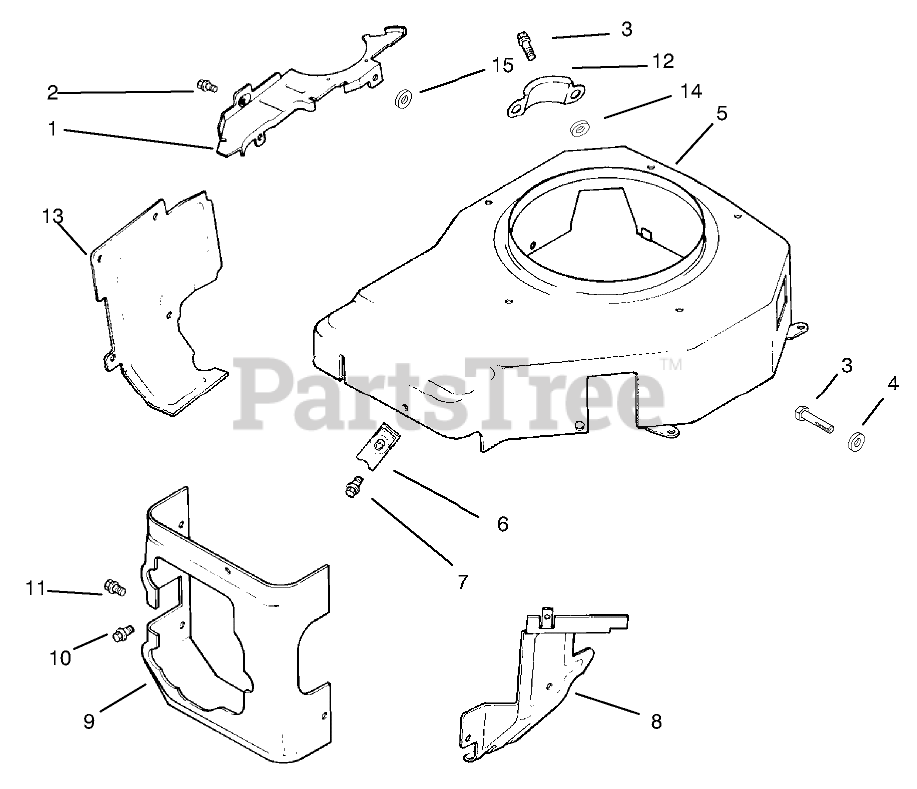

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title

1

1214607

Plate-Blower Housing (Only On: 92003, 92043)

$

$

Not available

2

Kohler M-0545010

Screw M5x0.8x10 (Only On: 92003, 92043)
(Superseded to M-545010)

$4.49

$

In Stock, Qty 13

0

3

Kohler 24 086 18

Screw-Phillips (Only On: 92003, 92043)
(Superseded to 24 086 18-S)

$2.49

$

Usually ships in 2-5 days

0

4

Kohler X-25-92

Washer-Flat (Only On: 92003, 92043)
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

5

1202732

Housing-Blower (Only On: 92003, 92043)

$

$

Not available

6

2515402

Clip (Only On: 92003, 92043)

$

$

Not available

7

Kohler M-0545020

Screw M5x0.8x20 (Only On: 92003, 92043)

$

$

Not available

8

1206305

Baffle-Carburetor (Only On: 92003, 92043)

$

$

Not available

9

1206308

Baffle-Cylinder Head (Only On: 92003, 92043)

$

$

Not available

10

Kohler M-0645016

Screw-HH M6x1.0x16 (Only On: 92003, 92043)
(Superseded to M-645016)

$3.99

$

In Stock, Qty 20+

0

11

Kohler M-0645020

Screw-HH M6x1.0x20 (Only On: 92003, 92043)
(Superseded to M-645020)

$2.49

$

In Stock, Qty 20+

0

12

2409605

Cover-Pinion (Only On: 92003, 92043)

$

$

Not available

13

1206301

Baffle-Cylinder Barrel (Only On: 92003, 92043)

$

$

Not available

14

Kohler 220534

Washer Plain 5/16 (Only On: 92003, 92043)
(Superseded to 220534-S)

$5.49

$

In Stock, Qty 5

0

15

2446810

Washer Plain 1/4 (Only On: 92003, 92043)

$

$

Not available
