72071 (265-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) FENDER & FOOTREST ASSEMBLY Parts Diagram

Lawn & Garden Tractor

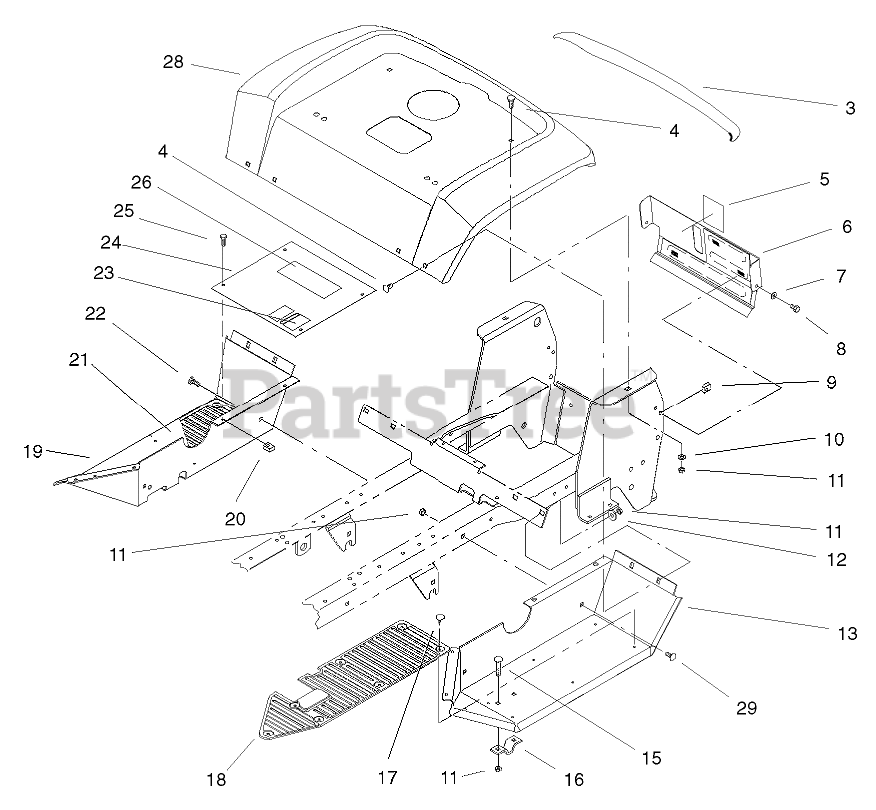

FENDER & FOOTREST ASSEMBLY Parts Diagram

  • Title

3

Toro 95-0802

DECAL - REAR FENDER
(Superseded to 106-5845)

$

$

Not available

4

Toro 3230-31

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

5

Toro 92-6727

DECAL-LEVEL, FUEL

$10.99

$

Usually ships in 3-6 days

0

6

Toro 99-6765-03

REAR PANEL ASM

$

$

Not available

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 609900

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 94-2869

WASHER

$1.49

$

In Stock, Qty 5

0

13

Toro 92-6746-01

FOOTREST-LH

$

$

Not available

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

17

Toro 3290-479

FASTENER-PANEL

$3.99

$

In Stock, Qty 20+

0

18

Toro 92-6688

FOOTPAD-LH

$

$

Not available

19

Toro 92-6747-01

FOOTREST-RH

$

$

Not available

20

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

21

Toro 92-6687

FOOTPAD-RH

$

$

Not available

22

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

23

Toro 92-6725

Decal-HOC (only on: 72050)

$13.99

$

Usually ships in 3-6 days

0

23

Toro 92-7092

Decal-HOC Int-l (only on: 72071)

$

$

Not available

24

Toro 93-0489-01

Plt-Ftrest w/Decal (only on: 72050)

$

$

Not available

24

Toro 94-4243

Plate-Footrest w/Decals (only on: 72071)

$

$

Not available

25

Toro 92-7020

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

26

Toro 93-7314

Decal-Danger (only on: 72071)

$

$

Not available

26

Toro 92-8946

Decal-Danger (only on: 72050)

$6.49

$

Usually ships in 3-6 days

0

28

Toro 92-6795-01

FENDER

$

$

Not available

29

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
