72081 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) HYDRAULIC RESERVOIR ASSEMBLY Parts Diagram

Yard Tractor

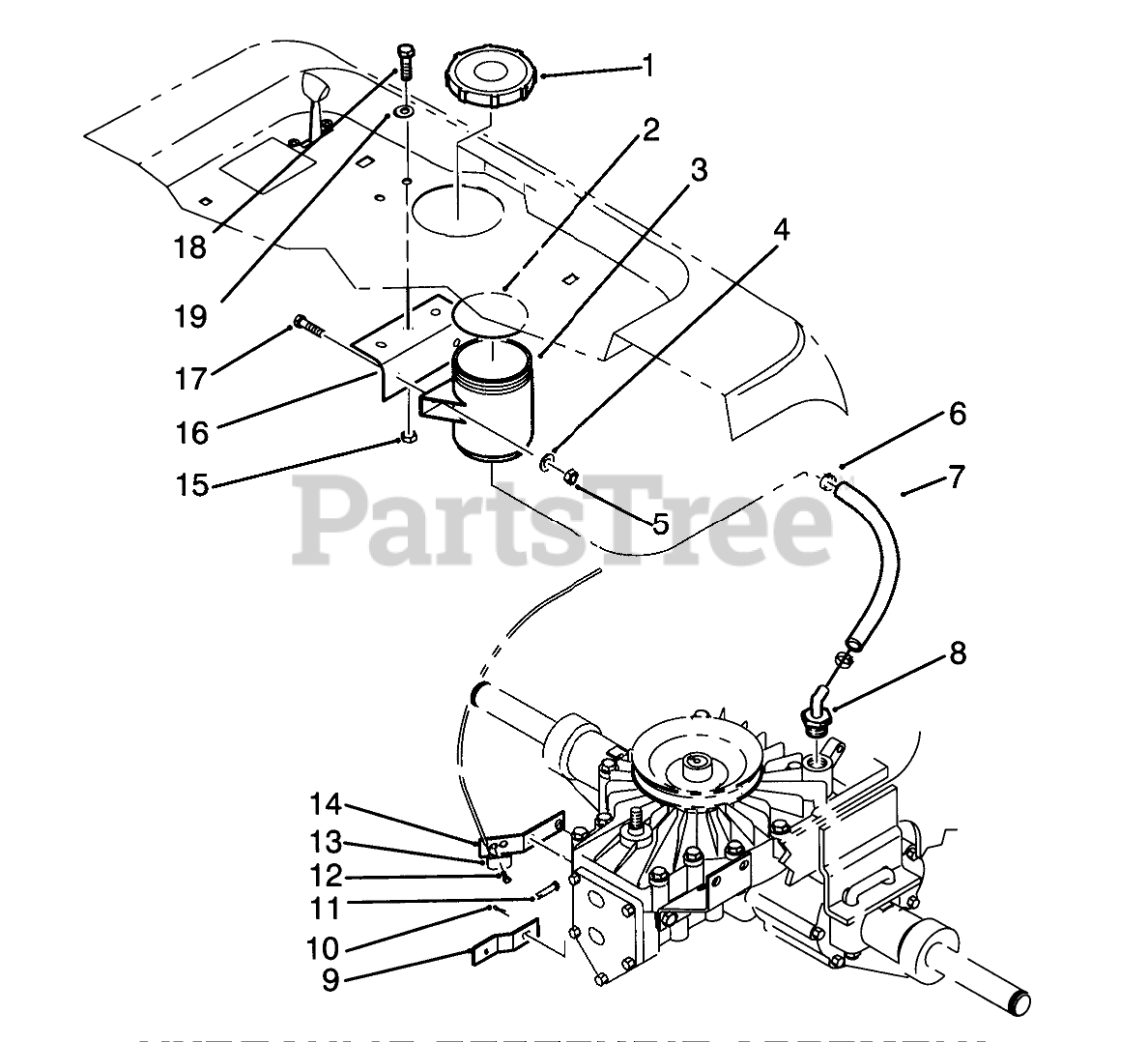

HYDRAULIC RESERVOIR ASSEMBLY Parts Diagram

  • Title

1

Toro 79-1100

ASS'Y-RESERVOIR

$

$

Not available

2

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

3

Toro 79-3510

RESERVOIR
(Superseded to 79-3500)

$

$

Not available

Toro 79-3500

Reservoir Assembly (Incl. Ref. #1-3)

$

$

Not available

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 79-2380

CLAMP .875

$

$

Not available

7

Toro 79-2360

HOSE-7"

$8.49

$

Usually ships in 3-6 days

0

8

Toro 79-7080

HOSE BARB

$

$

Not available

9

Toro 116398

Plate

$

$

Not available

10

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

11

Toro 932948

PIN

$

$

Not available

12

Toro 926566

Screw
(Superseded to 9265664)

$

$

Not available

13

Toro 111688

CLAMP THROTTLE
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

14

Toro 79-0380

PLATE-MTG

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 78-8810

BRACKET R

$

$

Not available

17

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
