72085 (267-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) FUEL TANK AND HYDRO RESERVOIR Parts Diagram

Lawn & Garden Tractor

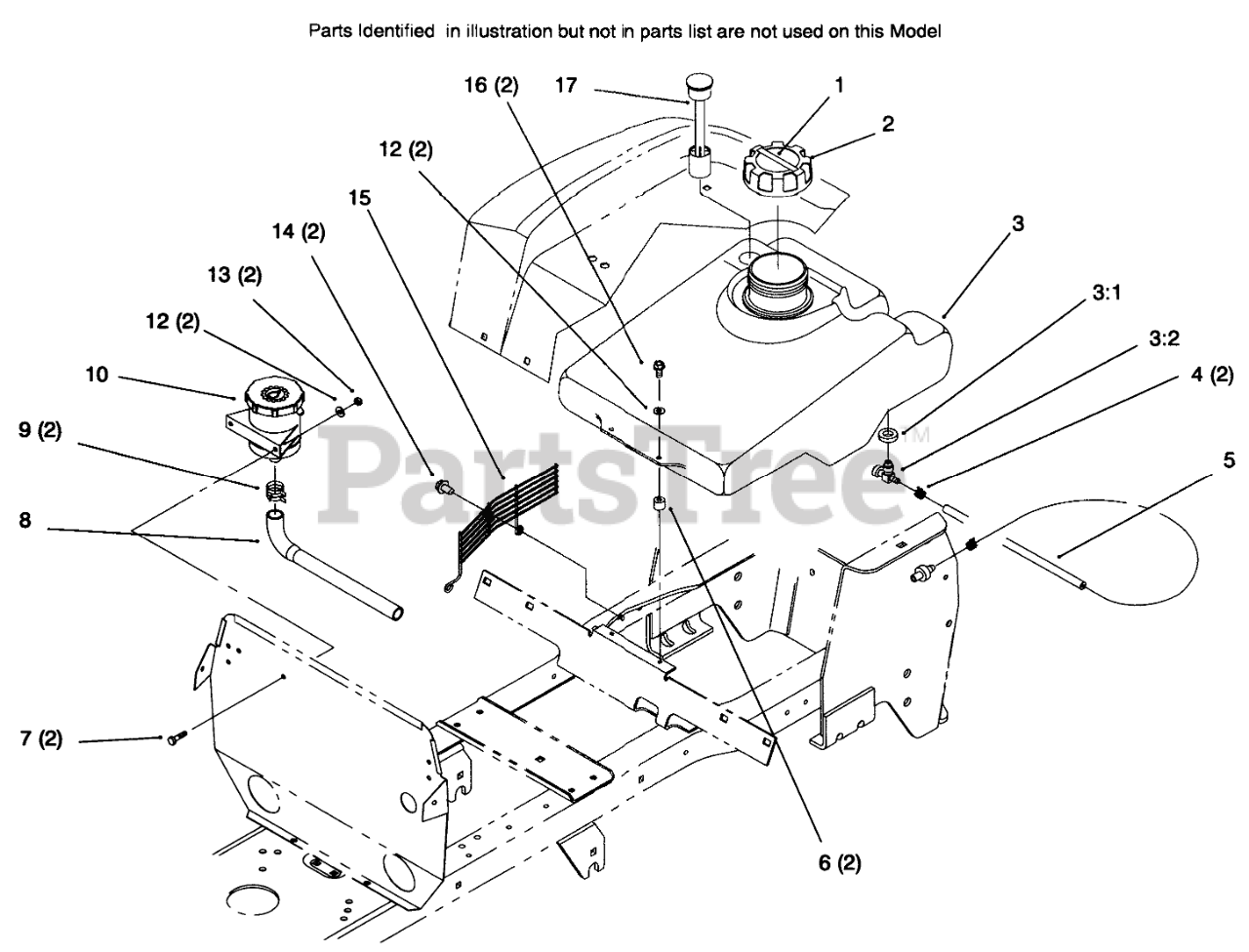

FUEL TANK AND HYDRO RESERVOIR Parts Diagram

  • Title

1

Toro 93-7328

Decal-Oil Check (Only On: 72104)

$

$

Not available

2

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 10

0

3

Toro 94-6928

TANK-GAS

$

$

Not available

3:1

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

3:2

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 5

0

4

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

5

Toro 93-1627

HOSE - FUEL LINE TWIN

$

$

Not available

6

Toro 93-1144

SPACER - FUEL TANK

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 92-6737

HOSE - HYDRO

$184.99

$

Usually ships in 3-6 days

0

9

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

10

Toro 79-3500

ASS'Y-RESERVOIR

$

$

Not available

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 32141-14

Screw-HH (Only On: 72104)

$

$

Currently unavailable

15

Toro 93-9275

Guard-Fan (Only On: 72104)

$

$

Not available

16

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0
