72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) FRAME Parts Diagram

Lawn & Garden Tractor

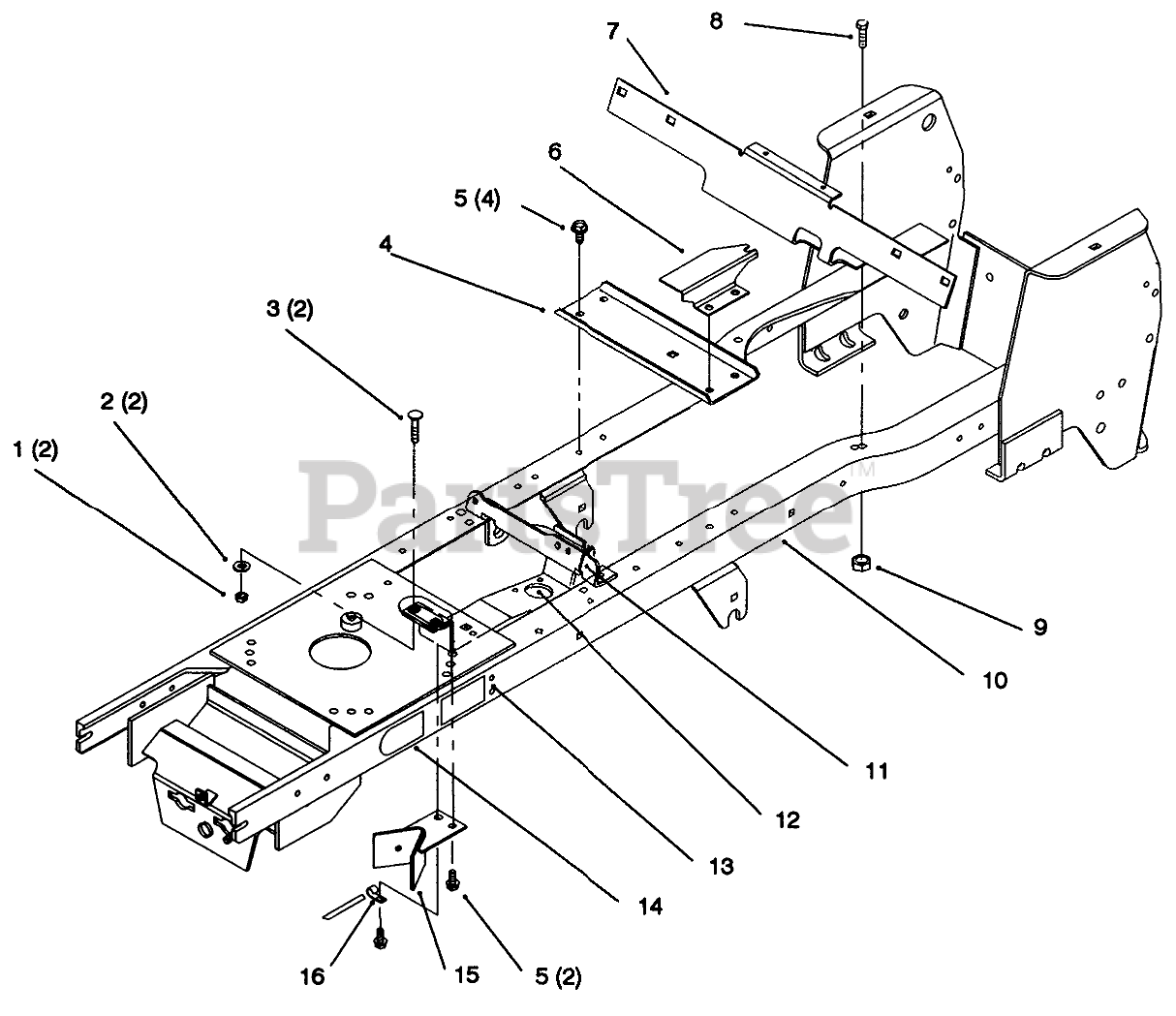

FRAME Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

4

Toro 92-6868-04

Bracket-Idler

$

$

Currently unavailable

5

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

6

Toro 92-6964-04

Bracket-HOC

$

$

Currently unavailable

7

Toro 92-6674-04

Support-Fender

$

$

Currently unavailable

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 94-2668

Frame
(Superseded to 99-6772-03)

$1287.99

$

Usually ships in 3-6 days

0

11

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

12

Toro 92-6992-04

Bracket-Steering

$

$

Currently unavailable

14

Toro 92-8747

DECAL-ATTACH A-MATIC

$6.49

$

In Stock, only 1 left!

0

15

Toro 78-2491-04

Stop-PTO

$

$

Currently unavailable

16

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0
