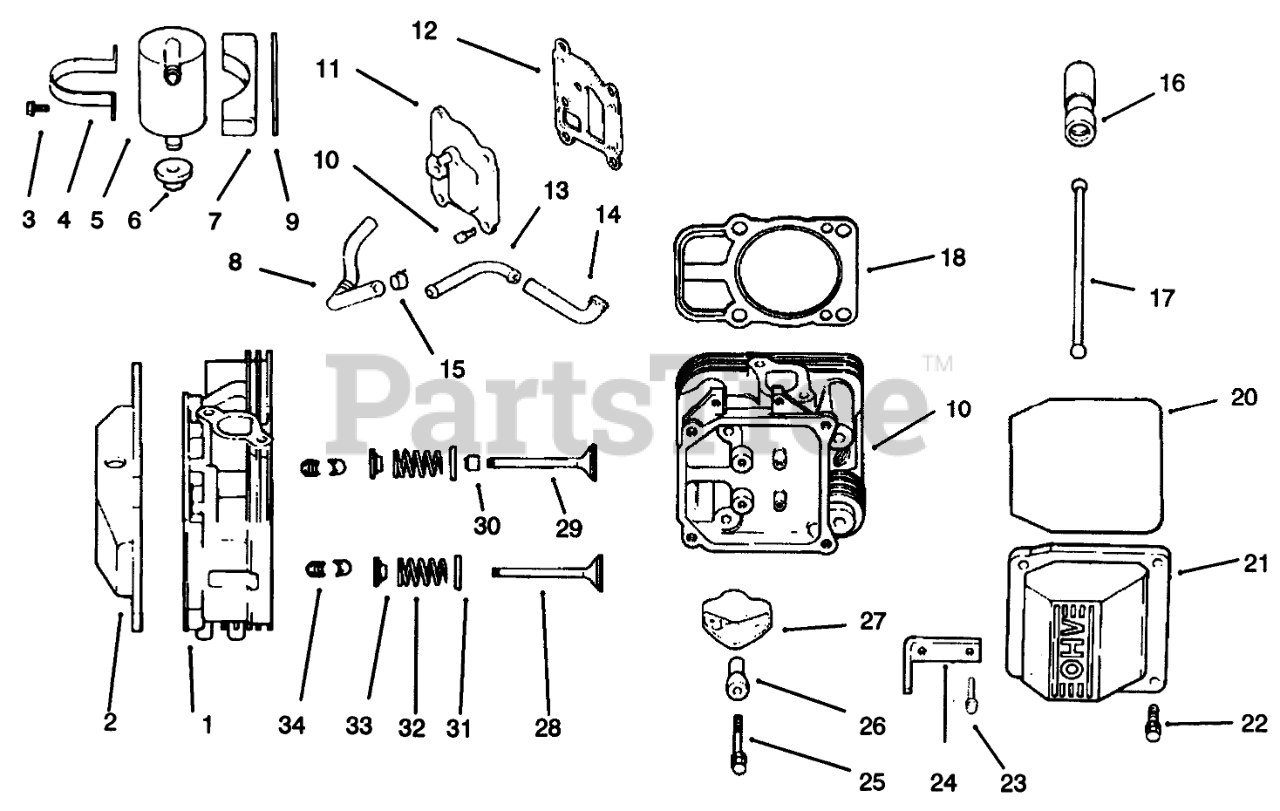

72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) HEAD/VALVE/BREATHER Parts Diagram

Lawn & Garden Tractor

HEAD/VALVE/BREATHER Parts Diagram

  • Title

1

24_318_11

Head ASM-#1 Cylinder

$

$

Not available

2

24_755_76

Kit-Valve Incl 6 20-22

$

$

Not available

3

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

4

24_445_02

Strap-Breather

$

$

Not available

5

24_755_57

Kit-Breather Incl 3-9

$

$

Not available

6

Toro 25_313_02

Grommet-Rubber

$

$

Currently unavailable

7

24_126_44

Bracket-Breather Sep

$

$

Not available

8

24_326_13

Hose-Breather

$

$

Not available

9

24_112_12

Spacer

$

$

Not available

10

Kohler M-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, Qty 20+

0

11

Toro 24_096_15

Cover-Breather

$

$

Currently unavailable

12

Toro 24_041_23

Gasket-Breather

$

$

Currently unavailable

13

24_294_06

Fitting

$

$

Not available

14

24_326_14

Hose-Breather

$

$

Not available

15

Toro X-_26-9

Clamp-Hose

$

$

Currently unavailable

16

Toro 12_351_01

Lifter-Valve

$

$

Currently unavailable

17

24_411_05

Rod-Push

$

$

Not available

18

Toro 24_041_08

Gasket-Cylinder Head

$

$

Currently unavailable

19

24_318_12

Head ASM-#2 Cylinder

$

$

Not available

20

Toro 24_153_12

O-Ring

$

$

Currently unavailable

21

Toro 24_755_74

Kit Valve Incl 20-22

$

$

Currently unavailable

22

Toro 24_086_32

Screw-Shoulder

$

$

Currently unavailable

23

12_086_16

Screw

$

$

Not available

24

Toro 24_445_01

Strap-Lifting

$

$

Currently unavailable

25

Kohler M-0640034

Screw

$

$

Not available

26

24_599_01

Pivot-Rocker Arm

$

$

Not available

27

25_186_01

Arm-Rocker

$

$

Not available

28

Toro 24_016_01

Valve-Exhaust

$

$

Currently unavailable

28

Toro 24_016_02

Valve-Exhaust (.25)

$

$

Currently unavailable

29

Toro 24_017_01

Valve-Intake

$

$

Currently unavailable

29

Toro 24_017_02

Valve-Intake (.25)

$

$

Currently unavailable

30

Toro 24_032_05

Seal-Valve Stem

$

$

Currently unavailable

31

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, Qty 14

0

32

Toro 24_089_02

Spring-Valve

$

$

Currently unavailable

33

Toro 12_173_01

Cap-Valve Spring

$

$

Currently unavailable

34

Toro 12_755_03

Kit-Retainer

$

$

Currently unavailable

24_033_03

Kit-Breather Incl 11-12

$

$

Not available

24_755_66

Kit-Valve Incl 17, 26-27

$

$

Not available
