72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) CRUISE CONTROL Parts Diagram

Yard Tractor

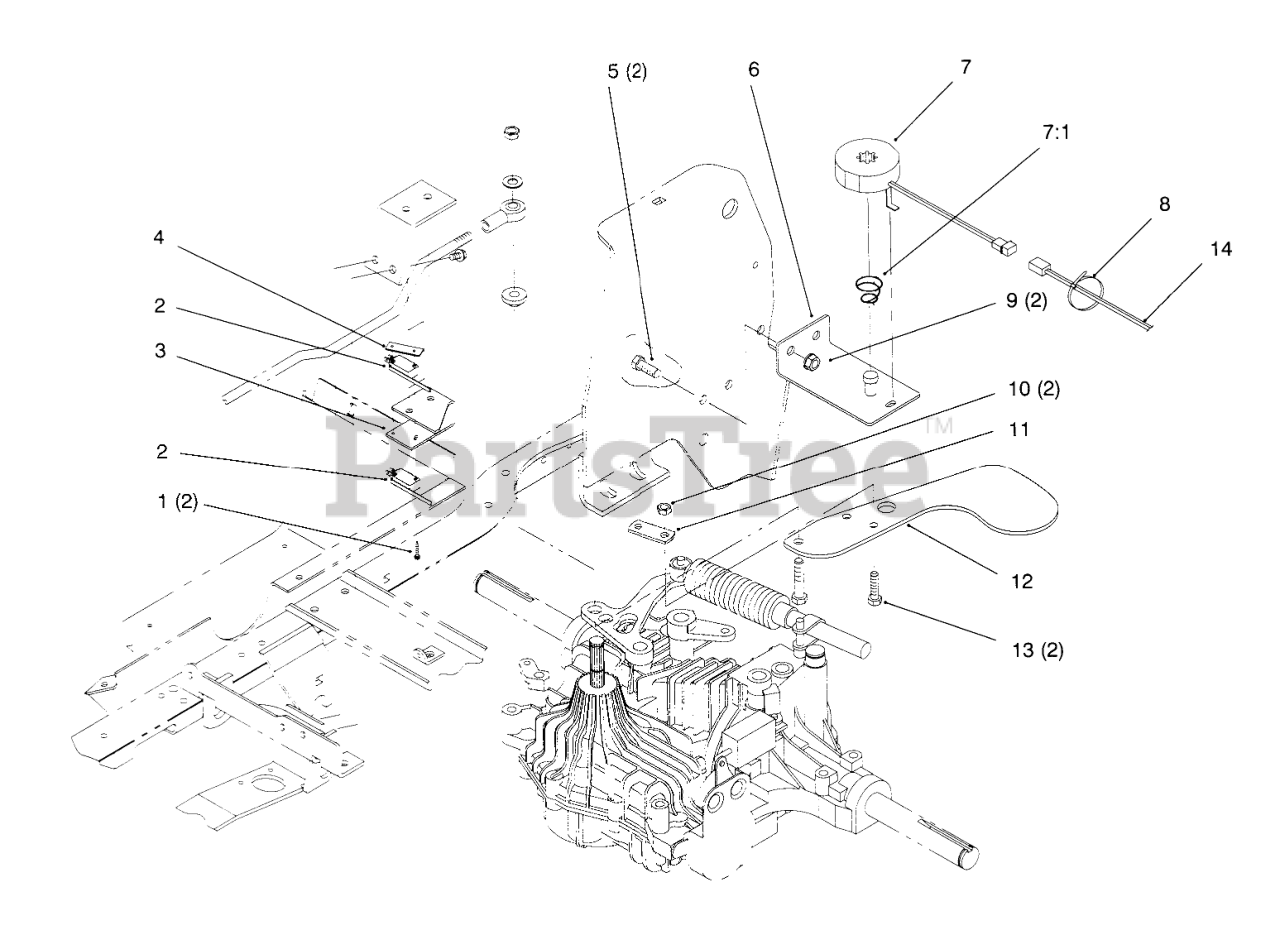

CRUISE CONTROL Parts Diagram

  • Title

1

Toro 93-0539

Screw (Only On: 72103)

$0.99

$

In Stock, only 1 left!

0

2

Toro 88-9930

Switch-Micro (Only On: 72103)

$35.99

$

In Stock, only 1 left!

0

3

Toro 93-0520-03

Bracket-Micro Sw (Only On: 72103)

$

$

Not available

4

Toro 3290-354

Nut-Speed (Only On: 72103)

$9.99

$

Usually ships in 3-6 days

0

5

Toro 323-6

Screw-HH (Only On: 72103)

$2.49

$

In Stock, Qty 20+

0

6

Toro 93-0512-03

Cruise Bracket (Only On: 72103)
(Superseded to 93-0512)

$

$

Not available

7

Toro 93-4366

Magnet Assembly (INCL 7: Only On: 72103)
(Superseded to 99-8090)

$301.99

$

Usually ships in 3-6 days

0

7:1

Toro 93-6601

Spring-Conical (Only On: 72103)

$2.49

$

Usually ships in 3-6 days

0

8

Toro 614249

Tie Strap (Only On: 72103)

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-39

Nut-Lock (Only On: 72103)

$2.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

Nut-Lock (Only On: 72103)

$2.49

$

In Stock, Qty 20+

0

11

Toro 93-0515

Clamp-Cruise (Only On: 72103)

$

$

Not available

12

Toro 93-0511

Arm-Cruise (Only On: 72103)

$

$

Not available

13

Toro 322-16

Screw-HH (Only On: 72103)

$3.99

$

Usually ships in 3-6 days

0

14

Toro 93-4364

Harness-Wire (Only On: 72103)

$

$

Not available
