72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) IGNITION/ELECTRICAL (KOHLER ENGINE CV16S-PS61514) Parts Diagram

Yard Tractor

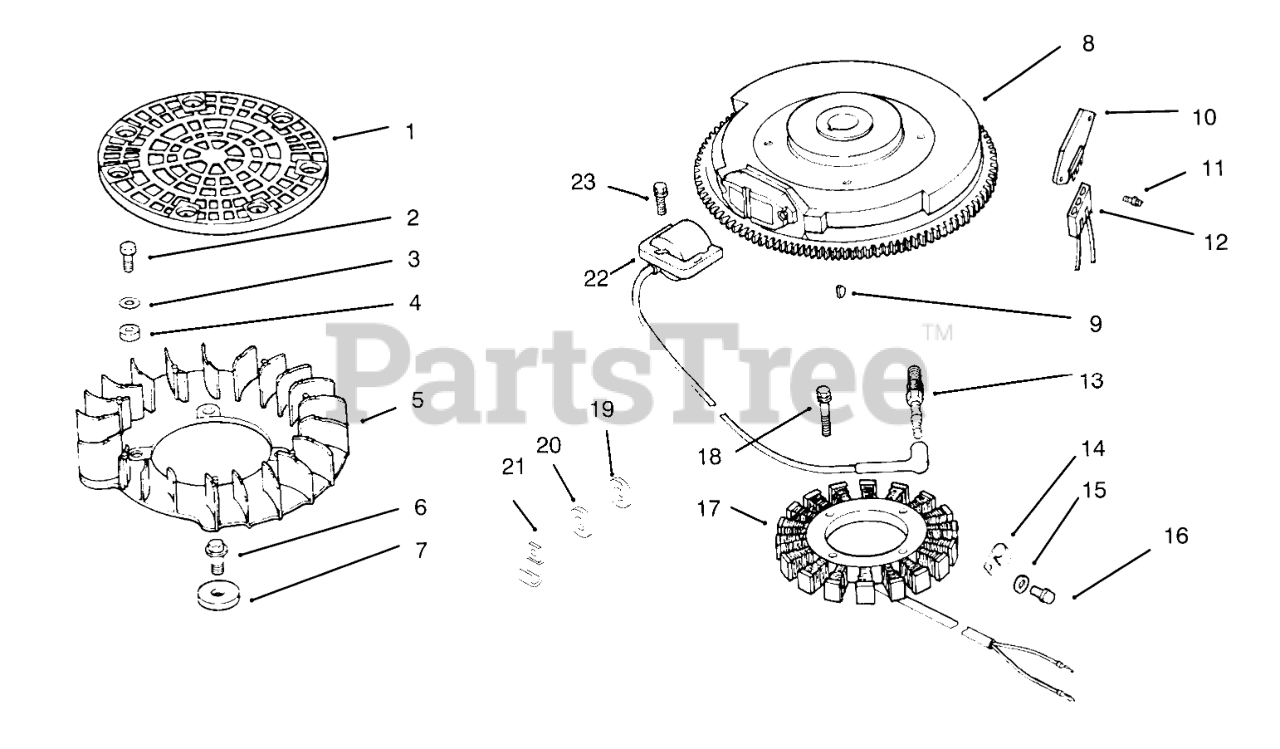

IGNITION/ELECTRICAL (KOHLER ENGINE CV16S-PS61514) Parts Diagram

  • Title

1

24_162_17

Screen-Grass (Only On: 72103)

$

$

Not available

2

Toro M-0401025

Screw M4x0.7x24 (Only On: 72103)

$

$

Currently unavailable

3

Kohler X-25-92

Washer-Flat (Only On: 72103)
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

4

Toro 24_112_04

Spacer-Fan (Only On: 72103)

$

$

Currently unavailable

5

24_157_03

Fan (Only On: 72103)

$

$

Not available

6

Kohler M-0639016

Screw M6x1.0x16 (Only On: 72103)
(Superseded to M-639016)

$2.49

$

In Stock, only 3 left!

0

7

12_112_01

Spacer-Fan (Only On: 72103)

$

$

Not available

8

24_025_04

Flywheel ASM (Only On: 72103)

$

$

Not available

9

Kohler X-42-15

Key (Only On: 72103)
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 5

0

10

Toro 25_403_03

Rectifier-Regulator (Only On: 72103)

$

$

Currently unavailable

11

Toro 24_086_06

Screw-Phillips (Only On: 72103)

$

$

Currently unavailable

12

Kohler 236602

Connector-Regulator (Only On: 72103)
(Superseded to 236602-S)

$7.99

$

In Stock, Qty 12

0

13

12_132_02

Spark Plug (Only On: 72103)

$

$

Not available

14

Toro 48_154_02

Clip-Stator Harness (Only On: 72103)

$

$

Currently unavailable

15

Toro 12_468_03

Washer-Flywheel Screw (Only On: 72103)

$

$

Currently unavailable

16

12_086_14

Screw-Flywheel Mounting (Only On: 72103)

$

$

Not available

17

Toro 24_085_01

Stator-15 Amp (Only On: 72103)

$

$

Currently unavailable

18

Kohler M-0548025

Screw M5x0.8x25 (Only On: 72103)
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

19

Kohler X-25-63

Washer-Flat (Only On: 72103)
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

20

Kohler X-25-92

Washer-Flat (Only On: 72103)
(Superseded to X-25-92-S)

$2.99

$

In Stock, only 2 left!

0

21

Kohler 235173

Clip-Cable (Only On: 72103)
(Superseded to 235173-S)

$11.99

$

Usually ships in 2-5 days

0

22

Toro 24_584_01

Module-Ignition (Only On: 72103)

$

$

Currently unavailable

23

Kohler M-0545020

Screw M5x0.8x20 (Only On: 72103)

$

$

Not available

Toro 24_113_18

Decal-Grass Screen (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_176_06

Harness-Wire (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_518_04

Lead-Green (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable
