72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) OIL PAN/LUBRICATION (KOHLER ENGINE CV16S-PS61514) Parts Diagram

Yard Tractor

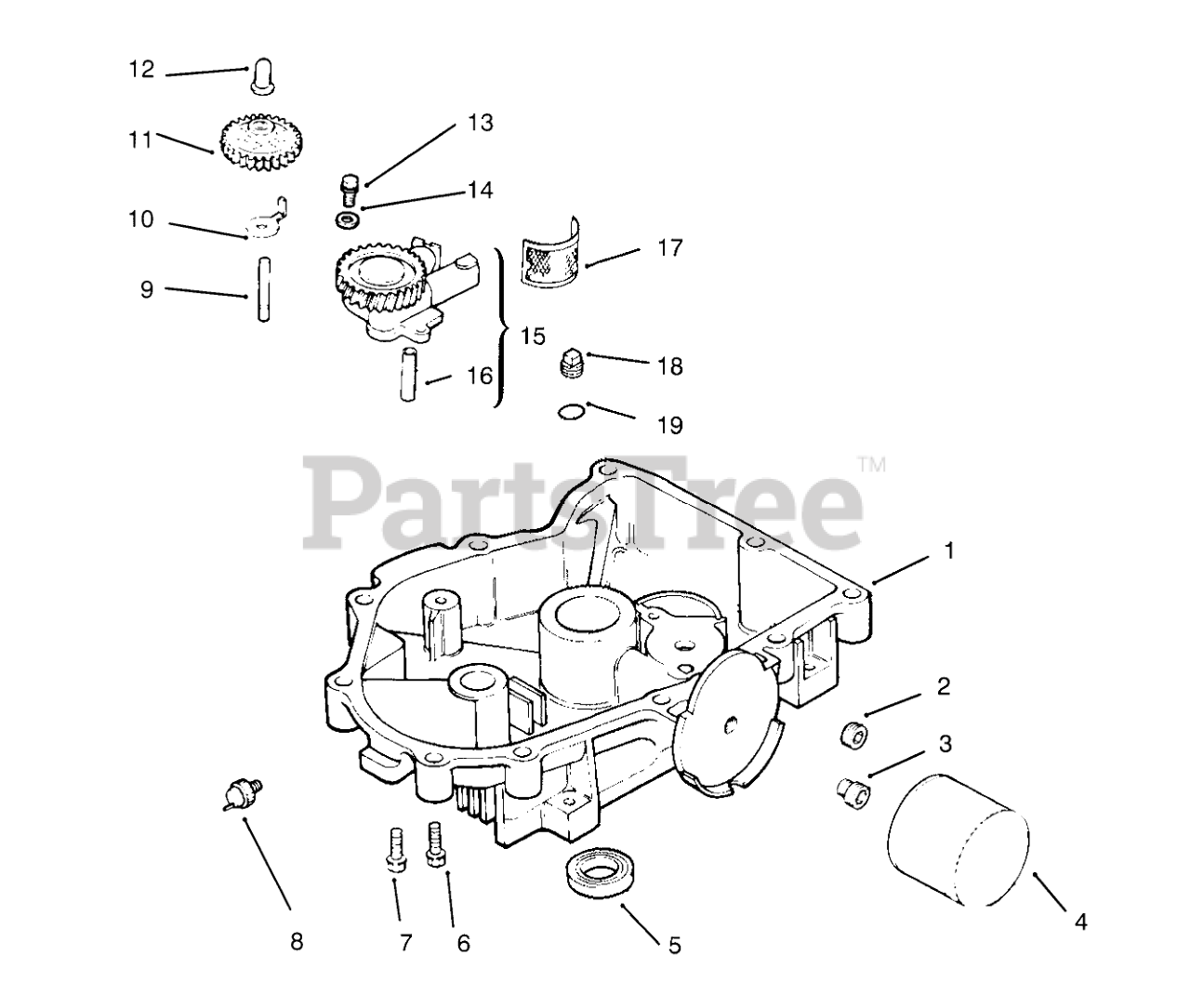

OIL PAN/LUBRICATION (KOHLER ENGINE CV16S-PS61514) Parts Diagram

  • Title

1

Toro 24_199_01

Oil Pan (Only On: 72103)

$

$

Currently unavailable

2

Kohler X-75-32

Plug-HS 3/8 NPTF (Only On: 72103)
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

3

Toro 24_136_01

Nipple-Oil Filter (Only On: 72103)

$

$

Currently unavailable

4

12_050_01

Filter-Oil (Only On: 72103)

$

$

Not available

5

Toro 52_032_08

Seal-Oil (Only On: 72103)

$

$

Currently unavailable

6

24_086_17

Screw M8x1.25x45 (Only On: 72103)

$

$

Not available

7

Toro 24_086_16

Screw M8x1.25x45 (Only On: 72103)

$

$

Currently unavailable

8

Toro 52_099_06

Switch-Oil Pressure (Only On: 72103)

$

$

Currently unavailable

9

12_144_02

Shaft-Governor Gear (Only On: 72103)

$

$

Not available

10

Toro 52_448_02

Tab-Locking (Only On: 72103)

$

$

Currently unavailable

11

Toro 24_043_11

Governor Gear ASM (Only On: 72103)

$

$

Currently unavailable

12

Toro 12_380_01

Pin-Governor Regulating (Only On: 72103)

$

$

Currently unavailable

13

Kohler M-0645025

Screw-Valve Cover (Only On: 72103)
(Superseded to M-645025)

$2.49

$

In Stock, Qty 12

0

14

Kohler SM-0631005

Washer-Governor (Only On: 72103)

$

$

Not available

15

Toro 24_393_05

Oil Pump ASM INCL 16 (Only On: 72103)

$

$

Currently unavailable

16

24_123_05

Tube-Oil Pickup (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

17

12_162_02

Screen-Oil Pickup (Only On: 72103)

$

$

Not available

18

Kohler X-75-10

Plug-SH 3/8 NPTF (Only On: 72103)
(Superseded to 25 139 57-S)

$2.49

$

In Stock, Qty 14

0

19

Toro 24_153_08

O Ring (Only On: 72103)

$

$

Currently unavailable

25_113_05

Decal-Oil Sentry (Only On: 72103)

Note: Not illustrated

$

$

Not available
