72107 (268-HE) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) BATTERY ASSEMBLY Parts Diagram

Lawn & Garden Tractor

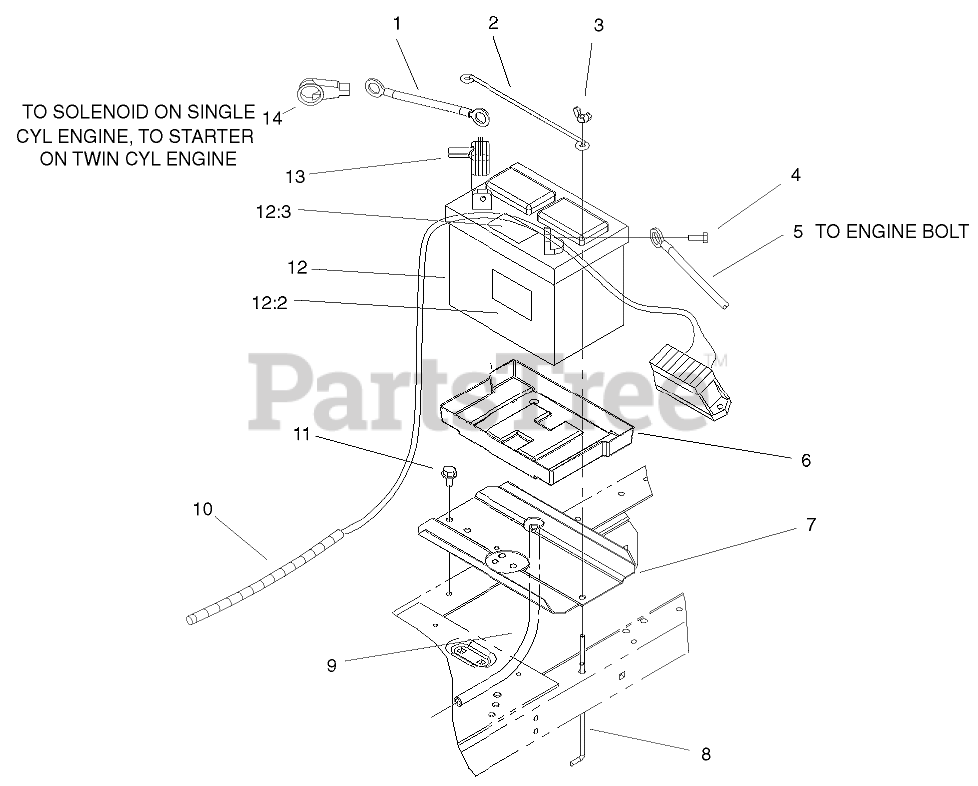

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 92-6989

WIRE-21 INCH

$25.99

$

Usually ships in 3-6 days

0

2

Toro 117316

ROD-BATTERY HOLD DWN

$25.99

$

In Stock, only 1 left!

0

3

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 93-0324

CABLE

$42.99

$

Usually ships in 3-6 days

0

6

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

7

Toro 78-6820-03

PLATE-BATTERY

$35.99

$

Usually ships in 3-6 days

0

8

Toro 109547

HOOK

$10.99

$

In Stock, Qty 5

0

9

Toro 114720

TUBE-21" BATTERY DRAIN

$6.99

$

Usually ships in 3-6 days

0

10

Toro 100-4160

HARNESS - WIRE, 268-H

$

$

Not available

11

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

12

Toro 94-6666

ASM-BATTERY W/DECALS
(Superseded to 104-8162)

$

$

Not available

12:2

Toro 93-6668

DECAL-BATTERY

$18.99

$

Usually ships in 3-6 days

0

12:3

Toro 93-7276

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

13

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

14

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$6.99

$

Usually ships in 3-6 days

0
