72107 (268-HE) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) CRUISE CONTROL ASSEMBLY Parts Diagram

Lawn & Garden Tractor

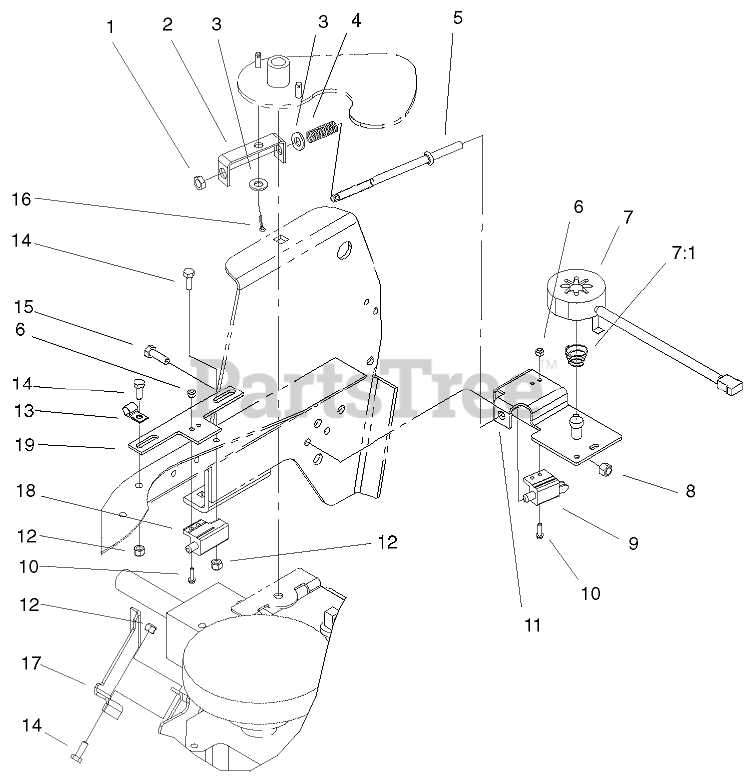

CRUISE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

2

Toro 100-6055-03

BRACKET

$

$

Not available

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 38-2340

SPRING-COMPRESSION

$

$

Not available

5

Toro 100-1348

ROD

$

$

Not available

6

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

7

Toro 99-8090

MAGNET ASM

$301.99

$

Usually ships in 3-6 days

0

7:1

Toro 93-6601

SPRING-COMPRESSION

$2.49

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 95-1653

SWITCH-POLE, SINGLE

$19.99

$

In Stock, only 1 left!

0

10

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

11

Toro 100-3452-03

BRACKET-CRUISE

$

$

Not available

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 100-8722-03

ARM

$

$

Not available

18

Toro 100-8725

SWITCH-DOUBLE, POLE
(Superseded to 1-633110)

$22.99

$

In Stock, only 3 left!

0

19

Toro 100-8723-03

PLATE-SWITCH

$

$

Not available
