72116 (270-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) HOOD AND GRILL ASSEMBLY Parts Diagram

Lawn & Garden Tractor

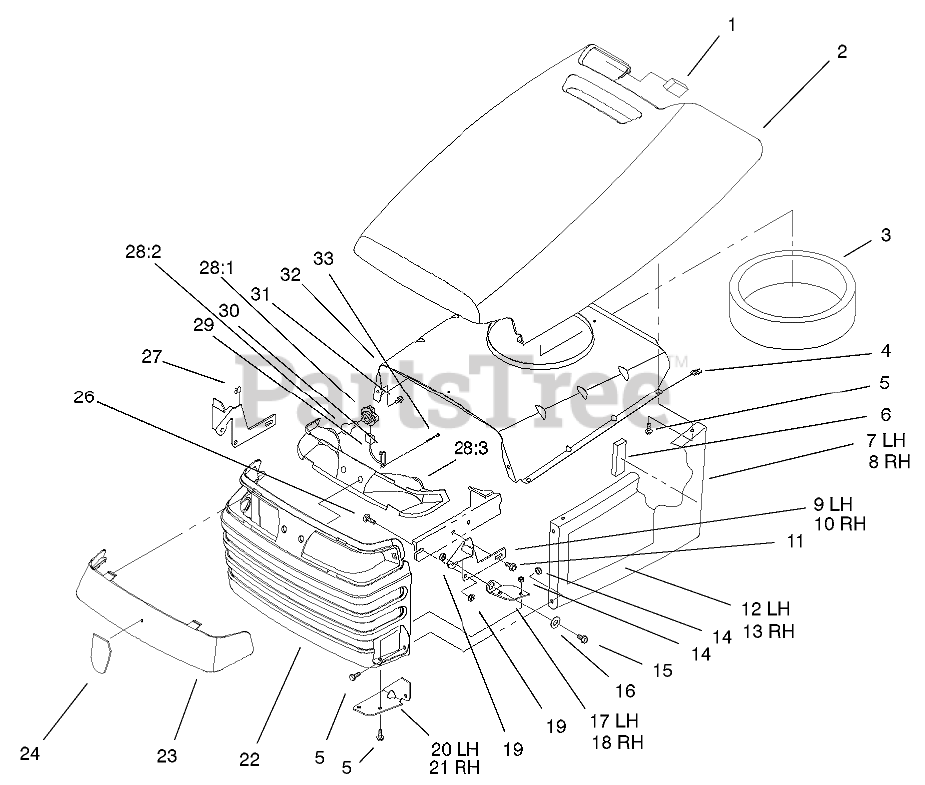

HOOD AND GRILL ASSEMBLY Parts Diagram

  • Title

1

Toro 94-1980

FOAM-HOOD

$3.49

$

In Stock, Qty 8

0

2

Toro 92-6658

HOOD-TOP
(Superseded to 93-0490)

$

$

Not available

3

Toro 92-7076

SEAL-AIR INLET, TWIN

$63.99

$

Usually ships in 3-6 days

0

4

Toro 92-7006

NUT

$4.99

$

Usually ships in 3-6 days

0

5

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

6

Toro 92-7148

FOAM-SIDEPANEL

$3.49

$

Usually ships in 3-6 days

0

7

Toro 92-6652

SIDE-HOOD, LH
(Superseded to 93-0491)

$165.99

$

Usually ships in 3-6 days

0

8

Toro 92-6650

SIDE-HOOD, RH
(Superseded to 93-0492)

$

$

Not available

9

Toro 92-6918-03

BRACKET-HINGE, LH

$60.99

$

Usually ships in 3-6 days

0

10

Toro 92-6917-03

BRACKET-HINGE, RH

$

$

Not available

11

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

12

Toro 95-0801

DECAL-HOOD, LH

$

$

Not available

13

Toro 95-0800

DECAL-HOOD, RH

$

$

Not available

14

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

17

Toro 92-6997-03

HINGE-HOOD, LH

$

$

Not available

18

Toro 92-6996-03

HINGE-HOOD, RH

$10.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 92-7049-03

BRACKET-HOOD HINGE, RH

$6.99

$

Usually ships in 3-6 days

0

21

Toro 92-7048-03

BRACKET-HOOD HINGE, LH

$6.99

$

Usually ships in 3-6 days

0

22

Toro 100-1344

GRILL

$

$

Not available

23

Toro 92-6656

LENS - HEADLIGHT

$90.99

$

Usually ships in 3-6 days

0

24

Toro 92-6987

EMBLEM-HORSEHEAD
(Superseded to 95-4248)

$28.99

$

Usually ships in 3-6 days

0

26

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

28:1

Toro 111686

SOCKET-LIGHT
(Superseded to 116262)

$47.99

$

Usually ships in 3-6 days

0

28:2

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

28:3

Toro 93-8741

REFLECTOR-LIGHT

$

$

Not available

28

Toro 88-3970

HEADLIGHT REFLECTOR ASM

Note: Not illustrated

$152.99

$

Usually ships in 3-6 days

0

29

Toro 88-4320

HARNESS-WIRE, LIGHTS

$65.99

$

Usually ships in 3-6 days

0

30

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

31

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

32

Toro 92-6914-03

BAFFLE-HOOD, UPPER

$

$

Not available

33

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0
