72116 (270-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) LIFT LEVER AND HOC ASSEMBLY Parts Diagram

Lawn & Garden Tractor

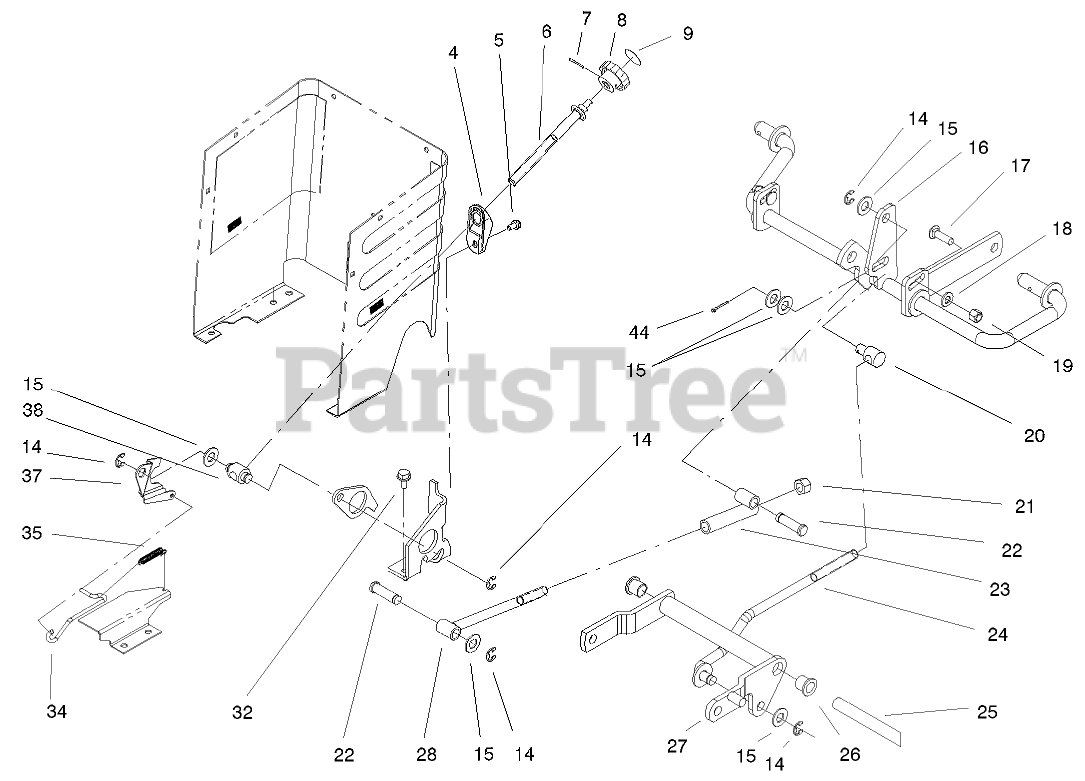

LIFT LEVER AND HOC ASSEMBLY Parts Diagram

  • Title

4

Toro 92-6794

WEDGE - HOC

$

$

Not available

5

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 92-6965

ROD - HOC

$

$

Not available

7

Toro 933141

PIN-SPIROL

$1.99

$

Usually ships in 3-6 days

0

8

Toro 115593

KNOB

$10.99

$

Usually ships in 3-6 days

0

9

Toro 78-9740

DECAL-HEIGHT KNOB

$

$

Not available

14

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 15

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 79-3401-03

SHAFT-GAGE

$310.99

$

Usually ships in 3-6 days

0

17

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

21

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 79-1250

PIN

$17.99

$

Usually ships in 3-6 days

0

23

Toro 78-7390

TUBE

$

$

Not available

24

Toro 78-2431

ROD

$100.99

$

Usually ships in 3-6 days

0

25

Toro 94-4944

SHAFT-PIVOT, PEDAL

$

$

Not available

26

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, Qty 5

0

27

Toro 92-6855-03

ARM-PIVOT

$163.99

$

Usually ships in 3-6 days

0

28

Toro 78-7360

ROD

$

$

Not available

32

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

34

Toro 92-6978

ROD - HOC INDICATOR

$

$

Not available

35

Toro 92-7007

SPRING - EXTENSION

$10.99

$

Usually ships in 3-6 days

0

37

Toro 92-6979

PLATE - HOC GAGE

$

$

Not available

38

Toro 78-2140

TRUNNION

$

$

Not available

44

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0
