72116 (270-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) TWIN CYLINDER ENGINE, MUFFLER AND PTO ASSEMBLY Parts Diagram

Lawn & Garden Tractor

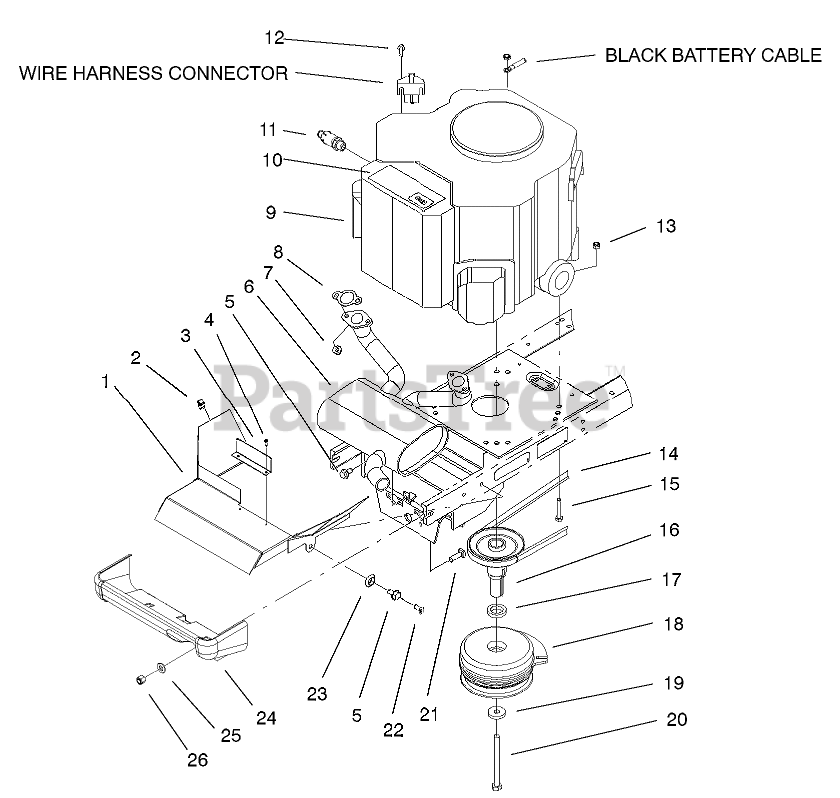

TWIN CYLINDER ENGINE, MUFFLER AND PTO ASSEMBLY Parts Diagram

  • Title

1

Toro 94-6950-03

Muffler Baffle ASM
(Superseded to 94-6950)

$

$

Not available

2

Toro 702366

CLIP-RETAINER, WIRE

$7.99

$

Usually ships in 3-6 days

0

3

Toro 99-6764-03

Guard-Throttle (onlyon: 72116)

$

$

Not available

4

Toro 100-1320

Screw-Panhead Torx(only on: 72116)

$

$

Not available

5

Toro 32144-14

Screw-HWH (onlyon: 72108)

$4.99

$

In Stock, only 3 left!

0

6

Toro 100-3543

MUFFLER-TWIN

$1426.99

$

Usually ships in 3-6 days

0

7

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 5

0

8

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

9

Toro 94-3515

Engine-Kohler 20(only on: 72116)

$

$

Not available

9

Toro 94-3514

Engine-Kohler 20(only on: 72108)

$7143.99

$

Usually ships in 3-6 days

0

10

Toro 94-2870

DECAL - TORO POWER + 20

$

$

Not available

11

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, Qty 6

0

12

Toro 32144-118

SCREW-PPH

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 100-3469

V-BELT

$115.99

$

In Stock, Qty 5

0

15

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

16

Toro 92-6888

PULLEY-ENGINE

$175.99

$

Usually ships in 3-6 days

0

17

Toro 100-1340

SPACER-CLUTCH

$20.99

$

In Stock, only 1 left!

0

18

Toro 100-6059

Clutch-PTO (only on:72108)
(Superseded to 103-9950)

$491.99

$

Usually ships in 3-6 days

0

18

Toro 100-6060

Clutch-Elec PTO (onlyon: 72116)

$

$

Not available

19

Toro 112843

WASHER

$3.49

$

In Stock, Qty 20+

0

20

Toro 9114466

SCREW-HH

$90.99

$

Usually ships in 3-6 days

0

21

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

22

Toro 100-1325

Screw-CountersunkTorx (only on: 72116)

$

$

Not available

23

Toro 100-1326

Washer-Countersunk(only on: 72116)

$

$

Not available

24

Toro 100-3541-01

MUFFLER SHIELD ASM

$

$

Not available

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
