72211 (417 XT) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH541V-BS04 Parts Diagram

Garden Tractor

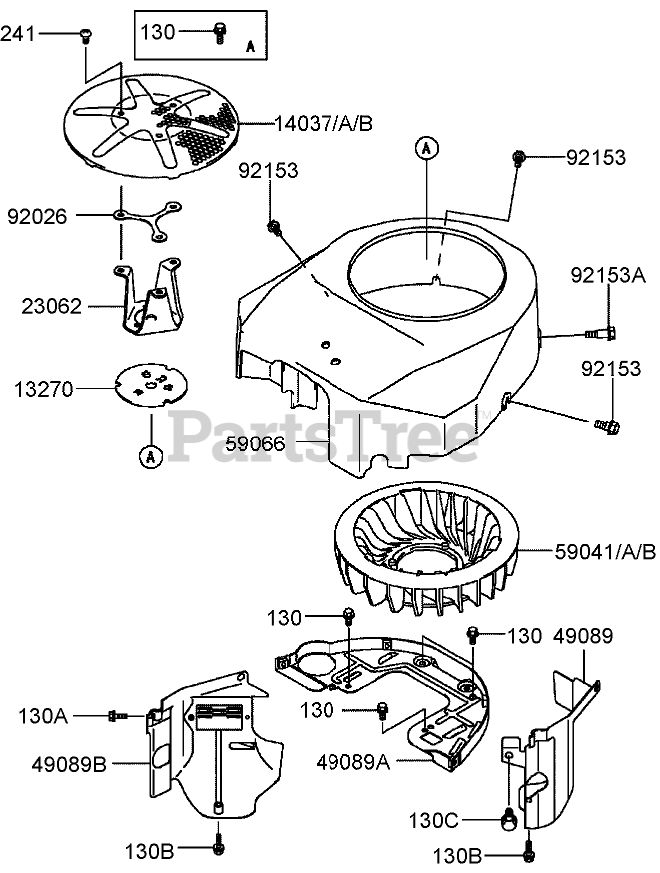

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH541V-BS04 Parts Diagram

  • Title

13270

Kawasaki 13270-7007

Plate

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 7

0

14037A

Toro 14037-7020

SCREEN

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

14037B

Kawasaki 14037-7020-9H

Screen
(Superseded to 14037-7010)

Note: Obtain parts from www.kawpowerepc.com

$33.99

$

In Stock, Qty 9

0

14037

Kawasaki 14037-7010

Screen
(Superseded to 14037-7020-9H)

Note: Obtain parts from www.kawpowerepc.com

$33.99

$

In Stock, Qty 9

0

23062

Kawasaki 23062-7010

Bracket
(Superseded to 23062-7008)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 8

0

49089

Kawasaki 49089-7002

Shroud-Engine

Note: Obtain parts from www.kawpowerepc.com

$28.99

$

In Stock, only 1 left!

0

49089B

Kawasaki 49089-7034

Shroud-Engine
(Superseded to 49089-7001)

Note: Obtain parts from www.kawpowerepc.com

$26.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7032

Shroud-Engine
(Superseded to 49089-7003)

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

In Stock, only 1 left!

0

59041A

Toro 59041-7010

Fan
(Superseded to 59041-7012)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59041B

Toro 59041-7010

Fan
(Superseded to 59041-7012)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59041

Toro 59041-7001

Fan

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

59066

Kawasaki 59066-7011

Housing-Fan
(Superseded to 59066-7001)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92026

Kawasaki 92026-7007

Spacer

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

Bolt

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-7008

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 10

0

130B

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 10

0

130C

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 9

0

241

Kawasaki 241B0612

Bolt-Flanged
(Superseded to 241AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 3 left!

0
