73-05BF01 (A-60) - Toro 26" Rear-Engine Riding Mower (1977) RIDING MOWER Parts Diagram

26" Rear-Engine Riding Mower

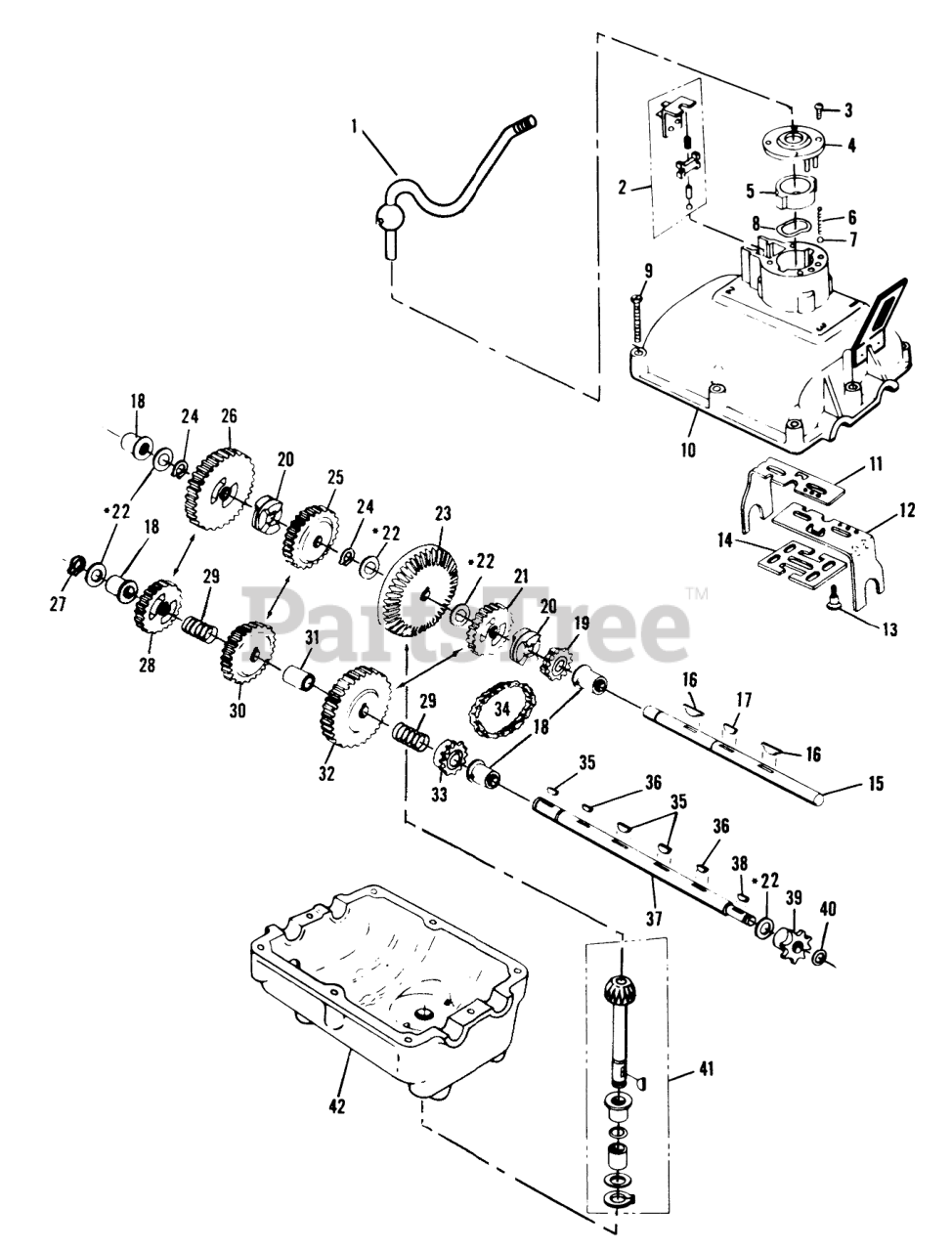

RIDING MOWER Parts Diagram

  • Title

Toro 225608

Transmission Assembly Complete

$

$

Currently unavailable

1

Toro 225526

Shift Lever Assembly

$

$

Currently unavailable

2

Toro 225527

Switch Assembly, Kit

$

$

Currently unavailable

3

Toro 225528

Screw, Truss Hd, 10-24 x 1/2 In.
(Superseded to 107913)

$

$

Not available

4

Toro 225529

Cover, Nylon

$

$

Currently unavailable

5

Toro 225530

Insert, Nylon
(Superseded to 107909)

$

$

Not available

6

Toro 225531

Spring, Detent
(Superseded to 107915)

$

$

Not available

7

Toro 225532

Bail, Detent
(Superseded to 103590)

$

$

Not available

8

Toro 225533

Wave Washer
(Superseded to 107908)

$

$

Not available

9

Toro 225534

Screw, Hex Hd, 1/4-20 x 1-5/16 In.

$

$

Not available

10

Toro 225535

Housing, Upper

$

$

Not available

11

Toro 225536

Fork, Shifter, R.H.

$

$

Not available

12

Toro 225537

Fork, Shifter, L.H.

$

$

Currently unavailable

13

Toro 225538

Screw, Shoulder

$

$

Not available

14

Toro 225539

Plate, Shifter Lockout

$

$

Not available

15

Toro 225540

Shaft, Drive

$

$

Not available

16

Toro 225541

Key, Hi-Pro

$

$

Not available

17

Toro 225542

Key, Woodruff
(Superseded to 107919)

$

$

Not available

18

Toro 225543

Bearing, Flange
(Superseded to 2119-458)

$

$

Not available

19

Toro 225544

Sprocket, 12-Tooth

$

$

Not available

20

Toro 225545

Collar, Clutch
(Superseded to 107849)

$

$

Not available

21

$

$

Not available

22

Toro 225547

Washer .031 Thk
(Superseded to 107842)

Note: Used in various combinations to maintain proper clearance.

$

$

Not available

22

Toro 225548

Washer .040 Thk
(Superseded to 107840)

Note: Used in various combinations to maintain proper clearance.

$

$

Not available

22

Toro 225549

Washer .050 Thk
(Superseded to 107838)

Note: Used in various combinations to maintain proper clearance.

$

$

Not available

22

Toro 225550

Washer .060 Thk
(Superseded to 107837)

Note: Used in various combinations to maintain proper clearance.

$

$

Not available

22

Toro 225551

Washer .025 Thk
(Superseded to 107843)

Note: Used in various combinations to maintain proper clearance.

$

$

Not available

22

Toro 225552

Washer .035 Thk

Note: Used in various combinations to maintain proper clearance.

$

$

Not available

22

Toro 225553

Washer .045 Thk
(Superseded to 107839)

Note: Used in various combinations to maintain proper clearance.

$

$

Not available

22

Toro 225554

Washer .020 Thk
(Superseded to 107844)

Note: Used in various combinations to maintain proper clearance.

$

$

Not available

23

Toro 225555

Gear, Bevel 42-Tooth

$

$

Not available

24

Toro 225025

Snap Ring

$

$

Not available

25

Toro 225556

Gear 25-Tooth

$

$

Not available

26

Toro 225557

Gear 30-Tooth

$

$

Not available

27

Toro 225021

"E" Ring

$

$

Not available

28

Toro 225558

Gear 20-Tooth
(Superseded to 107864)

$

$

Not available

29

Toro 225559

Spring, Compression

$

$

Not available

30

Toro 225560

Gear 25-Tooth

$

$

Not available

31

Toro 225561

Spacer

$

$

Not available

32

Toro 225562

Gear 30-Tooth

$

$

Not available

33

Toro 225563

Sprocket, 12-Tooth

$

$

Not available

34

Toro 225564

Chain, 22 Pitches

$

$

Not available

35

Toro 225565

Key, Woodruff
(Superseded to 107856)

$

$

Not available

36

Toro 225566

Key, Woodruff
(Superseded to 107854)

$

$

Not available

37

Toro 225567

Shaft, Output

$

$

Not available

38

Toro 225568

Key, Woodruff

$

$

Not available

39

Toro 225640

Sprocket, 8-Tooth

$

$

Not available

40

Toro 225570

Ring, Retaining

$

$

Not available

41

Toro 225571

Input Shaft Assy, Kit
(Superseded to 2119-614)

$

$

Not available

42

Toro 225572

Housing, Lower

$

$

Not available

72

Toro 803689

Tag, Warranty (Not Illustr.)

$

$

Currently unavailable
