73320 (310-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) TRANSMISSION 8-SPEED Parts Diagram

Garden Tractor

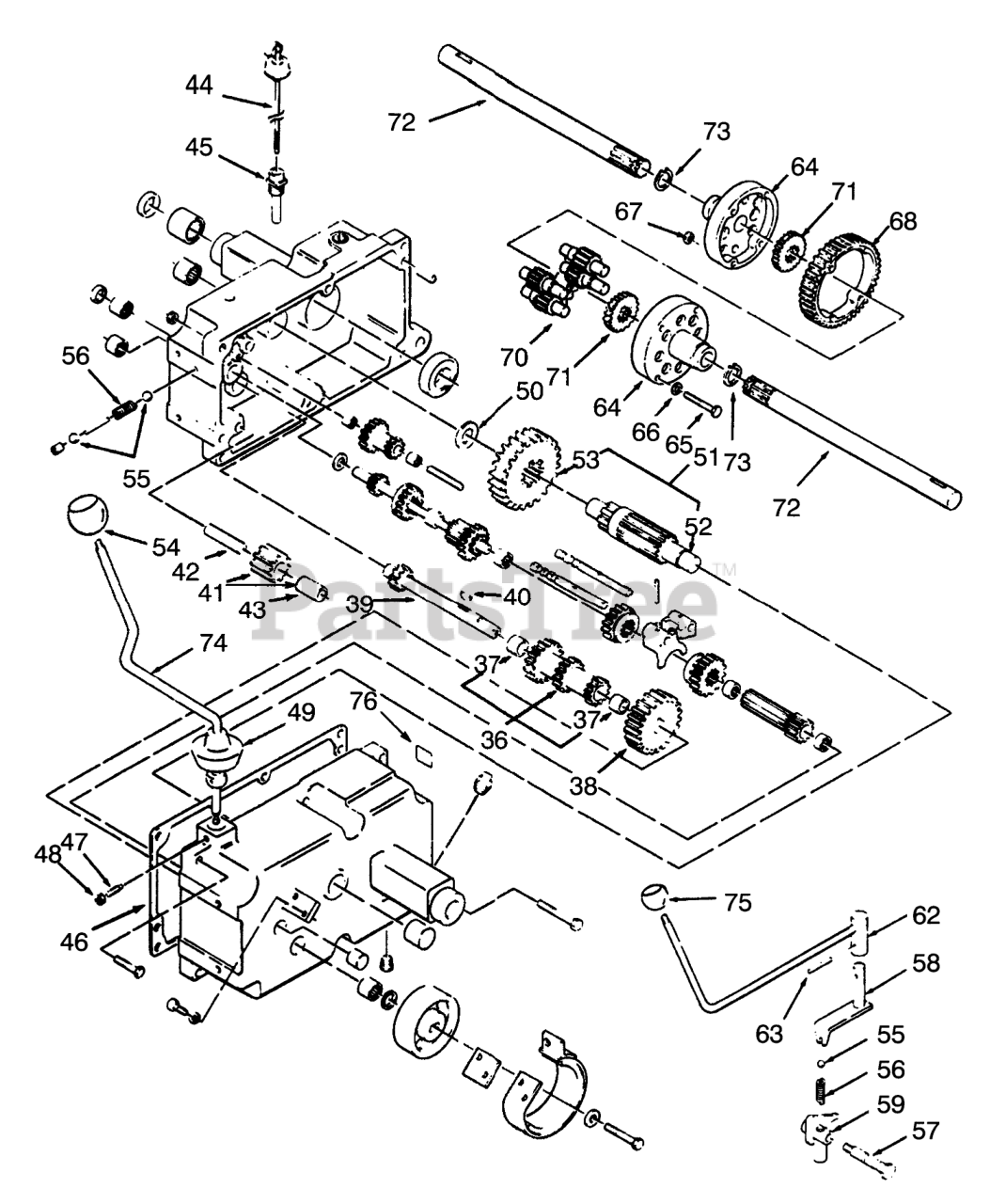

TRANSMISSION 8-SPEED Parts Diagram

  • Title

36

Toro 7269

Gear Assembly (Incl. Ref. #37)

$

$

Not available

37

Toro 1504

BUSHING-BRONZE

$43.99

$

Usually ships in 3-6 days

0

38

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

39

Toro 83-3530

SHAFT-CLUSTER

$462.99

$

Usually ships in 3-6 days

0

40

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

41

Toro 4204

Gear Assembly, Reverse Idler (Incl. Ref. #43)

$161.99

$

Usually ships in 3-6 days

0

42

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

43

Toro 1516

BUSHING

$12.99

$

Usually ships in 3-6 days

0

44

Toro 101847

Dipstick
(Superseded to 101847-03)

$

$

Not available

45

Toro 102703

NIPPLE-FILL, TRANSMISSION

$

$

Not available

46

Toro 3912

GASKET-TRANSMISSION

$8.99

$

In Stock, Qty 5

0

47

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 9

0

48

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

49

Toro 3577

COVER-DUST

$

$

Not available

50

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

51

Toro 102974

Gear Assembly (Incl. Ref. #52 & 53)

$

$

Not available

52

Toro 101625

PINION SHAFT

$

$

Not available

53

Toro 101626

GEAR

$

$

Not available

54

Toro 108758

KNOB

$13.99

$

In Stock, Qty 5

0

55

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 4 left!

0

56

Toro 106030

SPRING-SHIFT STOP

$2.99

$

Usually ships in 3-6 days

0

57

Toro 7213

BOLT-DETENT

$54.99

$

Usually ships in 3-6 days

0

58

Toro 7214

SHIFT ASM

$40.99

$

Usually ships in 3-6 days

0

59

Toro 116636

SHIFT FORK ASM
(Superseded to 116636-03)

$

$

Not available

62

Toro 110727

SHIFT ROD ASM

$79.99

$

Usually ships in 3-6 days

0

63

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

64

Toro 111197

END CAP-DIFFERENTIAL

$

$

Not available

65

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

66

Toro 107374

WASHER

$0.99

$

Usually ships in 3-6 days

0

67

Toro 108881

NUT

$6.49

$

In Stock, Qty 10

0

68

Toro 105063

DIFFERENTIAL BULL GR

$

$

Not available

70

Toro 101623

GEAR-PINION, 11T

$113.99

$

Usually ships in 3-6 days

0

71

Toro 3908

AXLE GEAR

$152.99

$

Usually ships in 3-6 days

0

72

Toro 5961

AXLE-REAR

$

$

Not available

73

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 11

0

74

Toro 110725

ASM-Rod
(Superseded to 95-7684)

$171.99

$

In Stock, only 1 left!

0

75

Toro 83-2710

KNOB

$14.99

$

Usually ships in 3-6 days

0

76

Toro 104955

Decal-Unidrive
(Superseded to 94-1834)

$4.49

$

In Stock, Qty 7

0
