73380 (312-8) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) CRANKCASE AND CYLINDER HEAD Parts Diagram

Garden Tractor

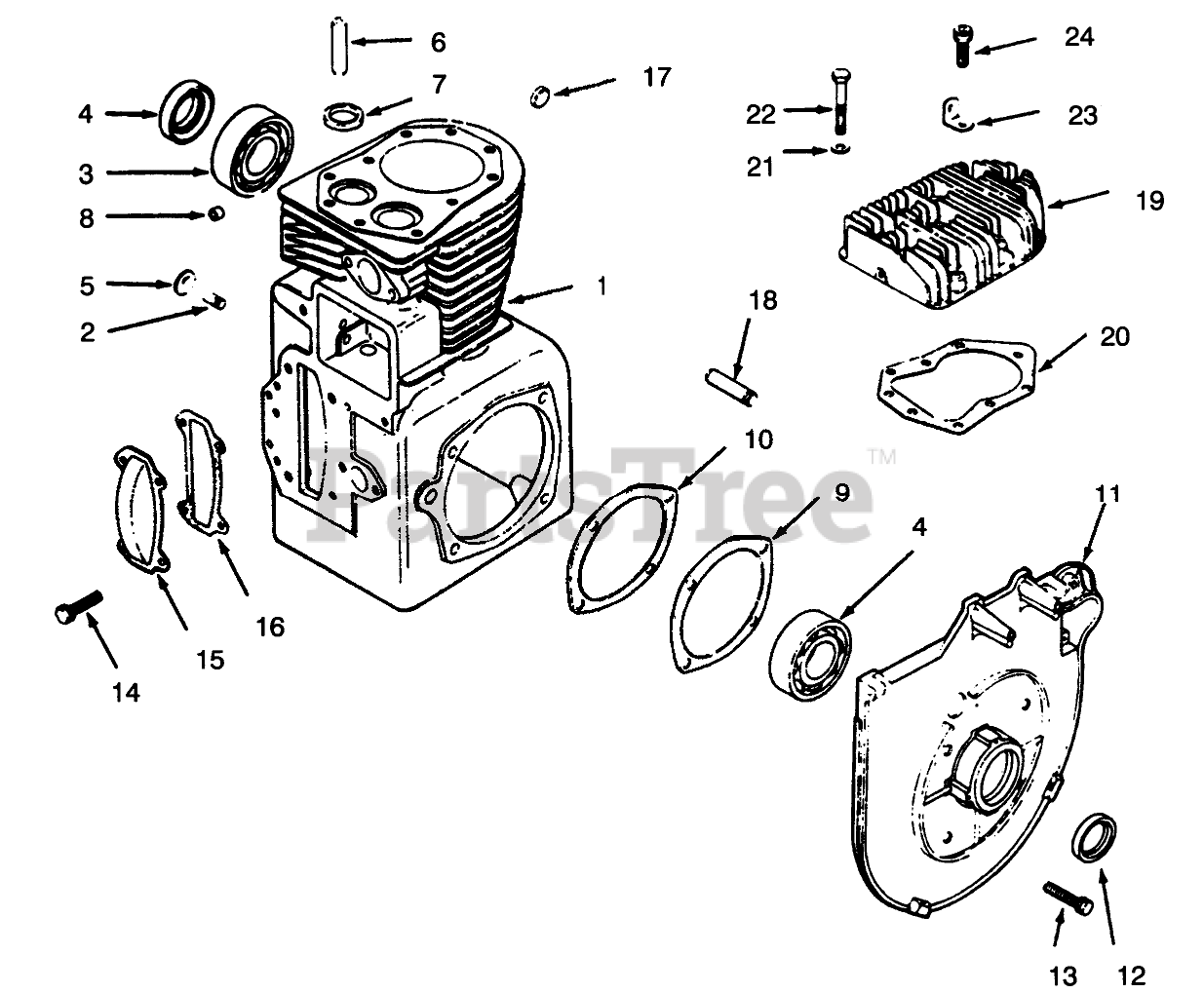

CRANKCASE AND CYLINDER HEAD Parts Diagram

  • Title

1

Toro KH10691

Block-Cylinder Service With Short Block (Includes Crankshaft)

$

$

Not available

Toro KH10721

312

$

$

Not available

2

Toro KH10061

Governor Gear Shaft

$

$

Not available

3

Toro KH10067

Ball Bearing

$

$

Not available

4

Toro KH10269

Seal

$

$

Not available

5

Toro KH10562

Plug

$

$

Not available

6

Toro KH10015

Guide-Valve

$

$

Not available

7

Toro KH10028

Exhaust Valve Insert

$

$

Not available

8

Toro KH10049

Bearing

$

$

Not available

9

Toro KH10272

Gasket

$

$

Not available

10

Toro KH10311

Gasket

$

$

Not available

11

Toro KH10687

Bearing Plate

$

$

Not available

12

Toro KH10268

Seal

$

$

Not available

13

Toro KH10549

Screw

$

$

Not available

14

Toro KH10545

Screw

$

$

Not available

15

Toro KH10661

Cover

$

$

Not available

16

Toro KH10055

Gasket

$

$

Not available

18

Toro KH10081

Shaft-Balance Gear

$

$

Not available

19

Toro KH10261

Cylinder Head

$

$

Not available

20

Toro KH10700

Gasket

$

$

Not available

21

Toro KH10145

Washer

$

$

Not available

22

Toro KH10144

Screw

$

$

Not available

23

Toro KH10312

Lifting Strap

$

$

Not available

24

Toro KH10290

Screw

$

$

Not available
