73400 (314-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) FUEL SYSTEM Parts Diagram

Garden Tractor

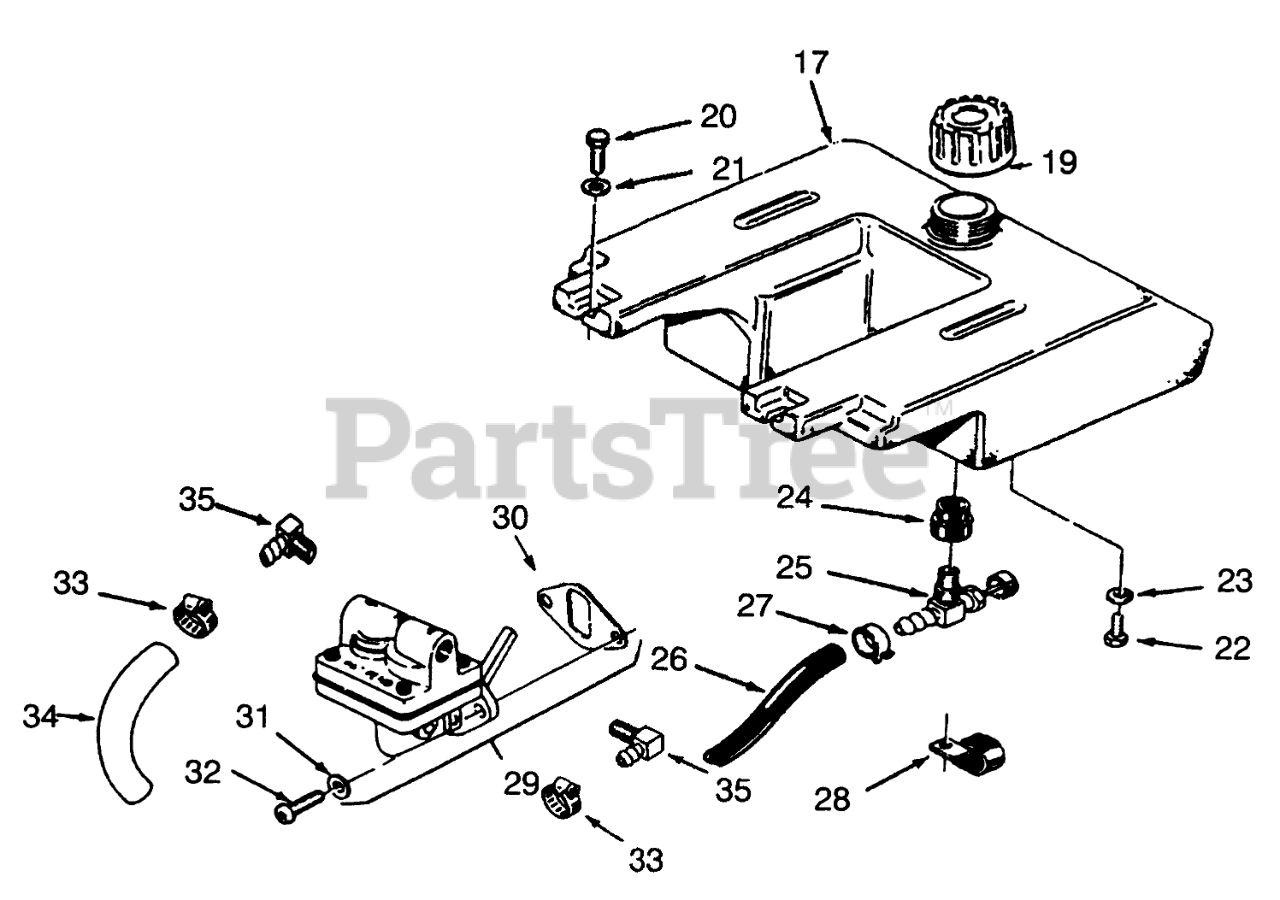

FUEL SYSTEM Parts Diagram

  • Title

17

Toro 106234

TANK-FUEL

$390.99

$

Usually ships in 3-6 days

0

18

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

20

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

25

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 5

0

26

Toro 103787

Fuel Line 62
(Superseded to 110521)

$

$

Not available

27

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

28

Toro 950154

Clamp

$

$

Not available

29

Toro KH10319

Pump Assy-Fuel (Incl. Ref.#30 & 31)

$

$

Not available

30

Toro 92-7261

Gasket-Fuel Pump

$

$

Not available

31

Toro KH10569

Washer

$

$

Not available

32

Toro KH10552

Screw-Pozidrive

$

$

Not available

33

Toro KH10586

Clamp

$

$

Not available

34

Toro 92-7250

Line-Fuel 5" Lg

$

$

Not available

35

Toro KH10123

Connector 90

$

$

Not available
