73401 (314-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) DRIVE BELT AND PULLEYS Parts Diagram

Garden Tractor

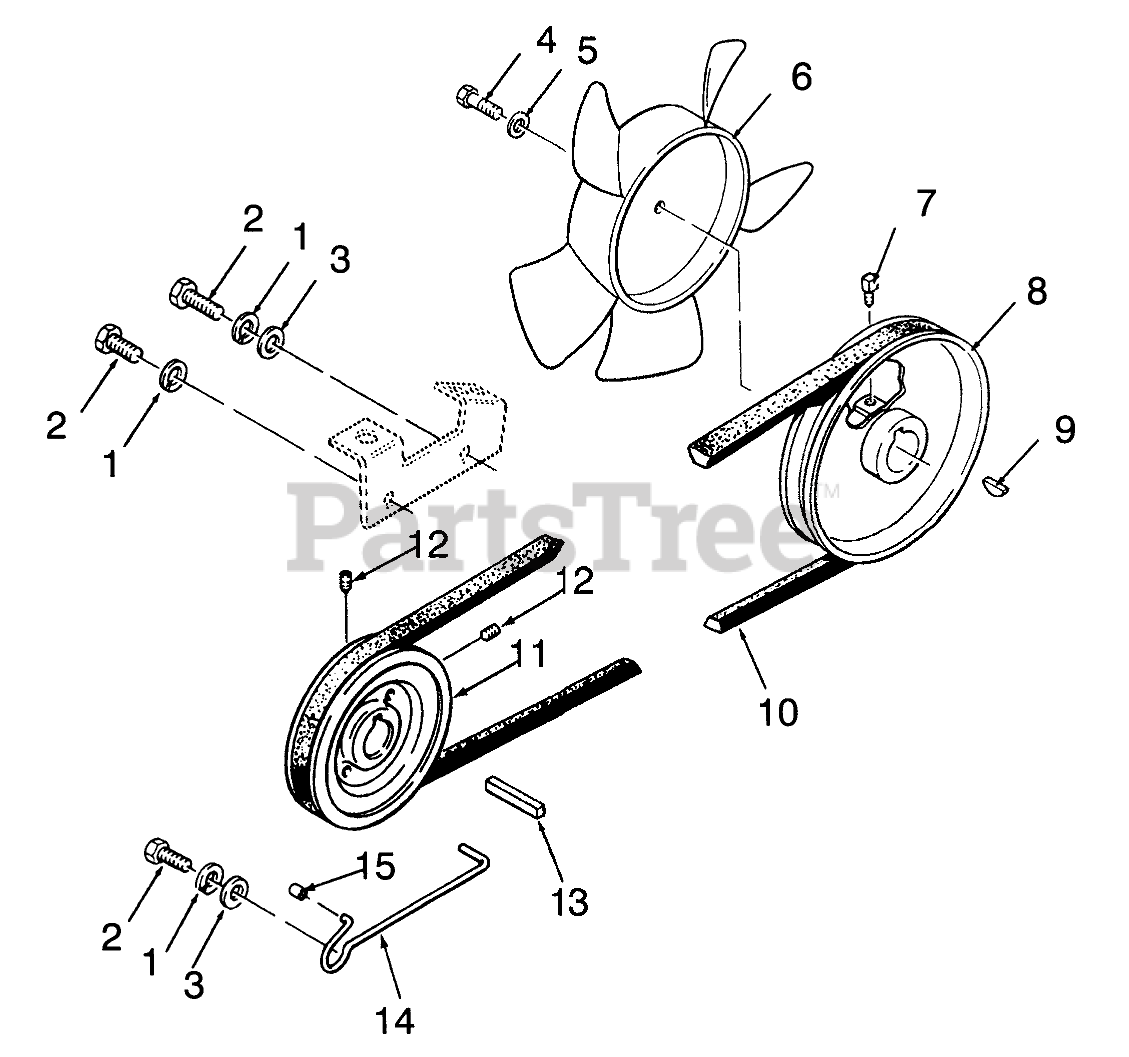

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

4

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

5

Toro 103995

WASHER

$9.49

$

In Stock, only 4 left!

0

6

Toro 108393

NYLON FAN-L-CW

$35.99

$

In Stock, only 4 left!

0

7

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 6

0

8

Toro 108316

PULLEY

$

$

Not available

9

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$5.49

$

In Stock, Qty 10

0

10

Toro 108501

V-BELT TRANS DRIVE

$59.99

$

In Stock, Qty 6

0

11

Toro 7443

PULLEY

$

$

Not available

12

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

13

Toro 105453

Key

$1.99

$

In Stock, only 2 left!

0

14

Toro 111242

GUIDE BELT

$18.99

$

Usually ships in 3-6 days

0

15

Toro 112841

CAP

$

$

Not available
