73401 (314-H) - Toro Garden Tractor (SN: 059000261 - 059001260) (1995) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

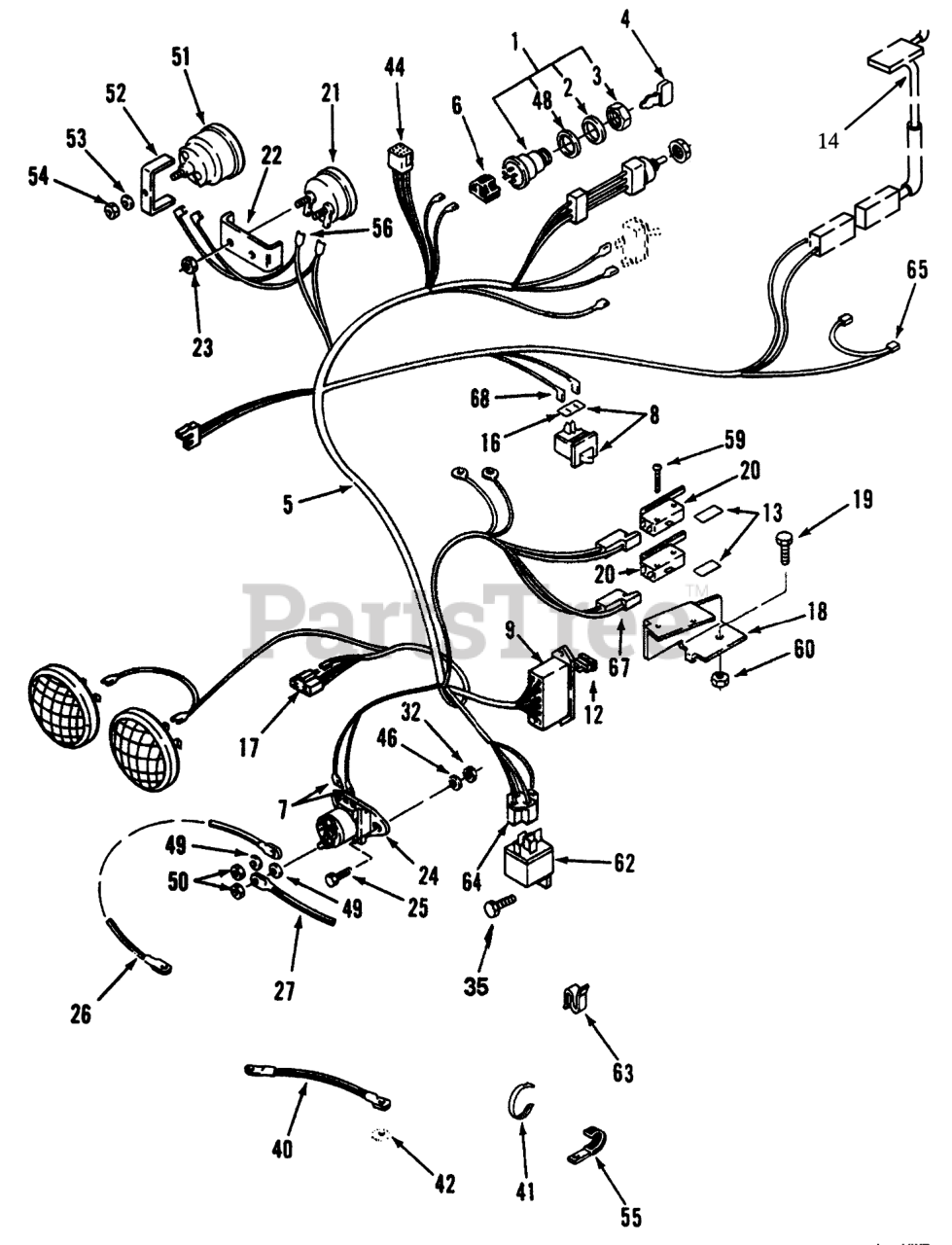

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 116338

KEY SWITCH ASM

$76.99

$

In Stock, Qty 5

0

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$27.99

$

In Stock, Qty 12

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 4 left!

0

3

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

4

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 13

0

5

Toro 79-3610

Harness Assy-Wiring (Incl. Ref. #6, 7, 9, 44 & 64-68)

$

$

Not available

6

Toro 104926

CONNECTOR BODY ELECT

$3.99

$

In Stock, only 2 left!

0

7

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

8

Toro 115230

SWITCH - CLUTCH

$30.99

$

Usually ships in 3-6 days

0

9

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$21.99

$

In Stock, only 3 left!

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 2 left!

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

13

Toro 111642

BARRIER - SWITCH

$

$

Not available

14

Toro 38-1420

SWITCH-SEAT

$

$

Not available

17

Toro 112185

5-CONTACT CONN BODY

$7.99

$

Usually ships in 3-6 days

0

18

Toro 115411

BRACKET-SWITCH

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

20

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

21

Toro 79-0060

VOLTMETER

$143.99

$

Usually ships in 3-6 days

0

22

Toro 78-0080

CLAMP-MOUNTING

$5.99

$

Usually ships in 3-6 days

0

23

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

24

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 11

0

25

Toro 9601524

SCREW1/4-20X5/8 WHIZ
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

26

Toro 111069

ASSY WIRE

$

$

Not available

27

Toro 111074

CABLE-BLACK

$25.99

$

Usually ships in 3-6 days

0

32

Toro 116497

Nut
(Superseded to 32103-22)

$2.99

$

In Stock, only 2 left!

0

35

Toro 910794

BOLT

$

$

Not available

40

Toro 109910

WIRE GROUND

$4.99

$

Usually ships in 3-6 days

0

41

Toro 100571

PLASTIC TIE

$

$

Not available

42

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

44

Toro 102651

Terminal

$

$

Not available

48

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

49

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

50

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

51

Toro 78-0020

Meter-Hour (Incl. Ref. #52-54)
(Superseded to 66-2950)

$

$

Not available

52

Toro 114017

BRKT-GAUGE MOUNTING

$

$

Not available

53

Toro 920120

Lockwasher
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

54

Toro 915962

Hex Nut
(Superseded to 32149-9)

$1.49

$

Usually ships in 3-6 days

0

55

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

59

Toro 9104784

SCREW-PHL 4-40X1 1/4

$1.49

$

Usually ships in 3-6 days

0

60

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

62

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

63

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

64

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

65

Toro 6921

Sur-Plug

$

$

Currently unavailable

68

Toro 518077

Terminal

$

$

Currently unavailable
