73401 (314-H) - Toro Garden Tractor (SN: 059000261 - 059001260) (1995) FRONT AXLE AND STEERING Parts Diagram

Garden Tractor

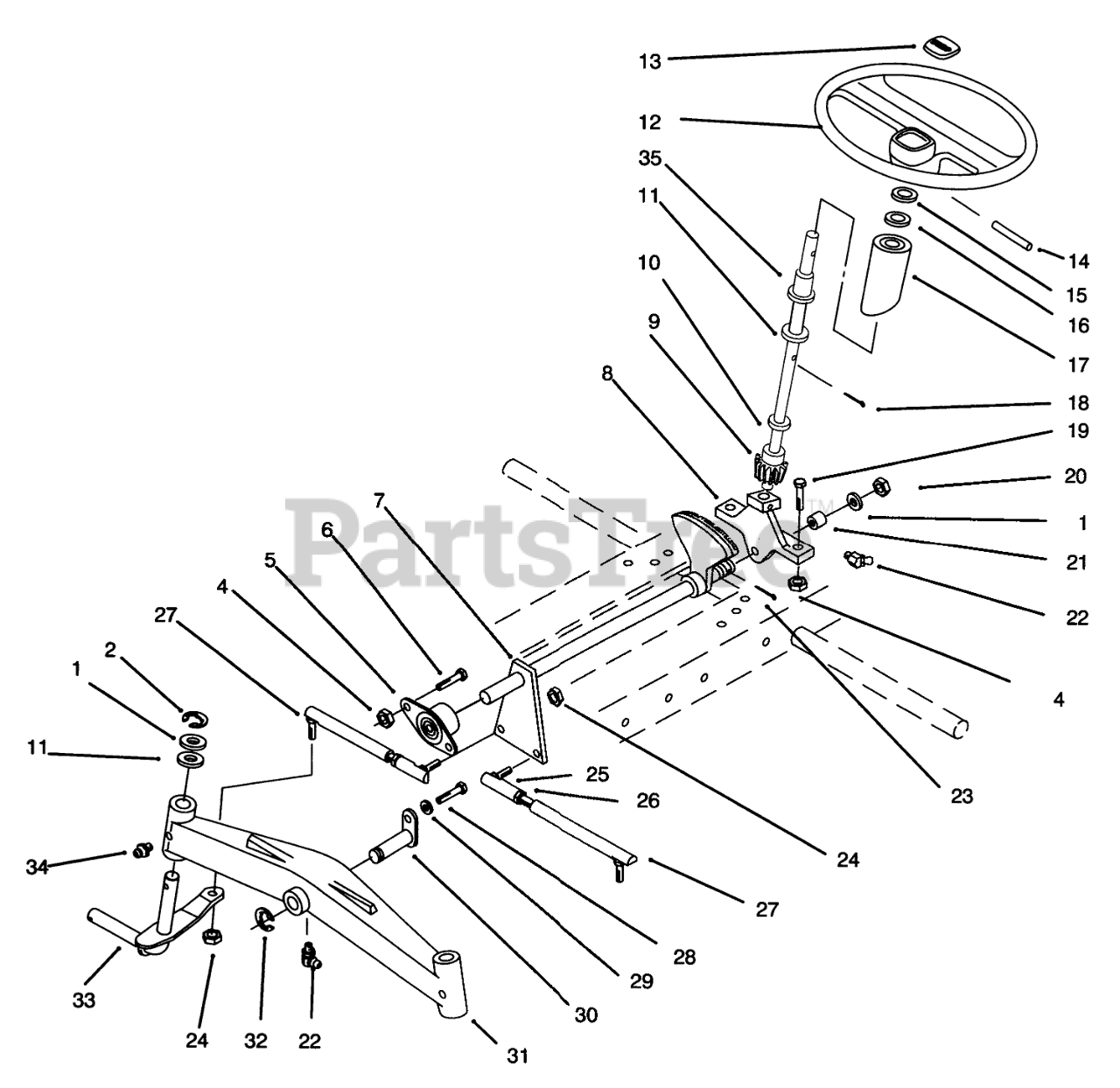

FRONT AXLE AND STEERING Parts Diagram

  • Title

1

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 6472

BEARING-FLANGED

$21.99

$

In Stock, only 2 left!

0

6

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

7

Toro 78-2880

Shaft
(Superseded to 78-2880-03)

$218.99

$

Usually ships in 3-6 days

0

8

Toro 88-2710

Support-Steering
(Superseded to 88-2710-03)

$

$

Not available

9

Toro 92-4987

STEERING SHAFT ASM

$176.99

$

In Stock, only 1 left!

0

10

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

11

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

12

Toro 76-1420

Steering Wheel (Incl. Ref. #13)

$217.99

$

Usually ships in 3-6 days

0

13

Toro 78-0370

STRG-WHL INSERT TORO

$

$

Not available

14

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

15

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 2 left!

0

16

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 2 left!

0

17

Toro 113443

TUBE-STEERING

$

$

Not available

18

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, Qty 6

0

19

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

In Stock, only 2 left!

0

21

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

22

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, only 4 left!

0

23

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 4 left!

0

26

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

27

Toro 78-2900

Tie Rod Assembly (Incl. Ref. #25 & 26)

$64.99

$

In Stock, only 4 left!

0

28

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 6216

PIN AND PLATE ASM

$44.99

$

In Stock, only 1 left!

0

31

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

32

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

33

Toro 113381

LH SPINDLE ASM
(Superseded to 113381-01)

$95.99

$

In Stock, only 1 left!

0

Toro 113382

RH SPINDLE WA
(Superseded to 113382-01)

Note: Not illustrated

$95.99

$

In Stock, only 1 left!

0

34

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

35

Toro 109189

BEARING-FLANGED

$2.99

$

In Stock, Qty 20+

0
