73401 (314-H) - Toro Garden Tractor (SN: 059001261 - 059999999) (1995) TRANSAXLE ASSEMBLY Parts Diagram

Garden Tractor

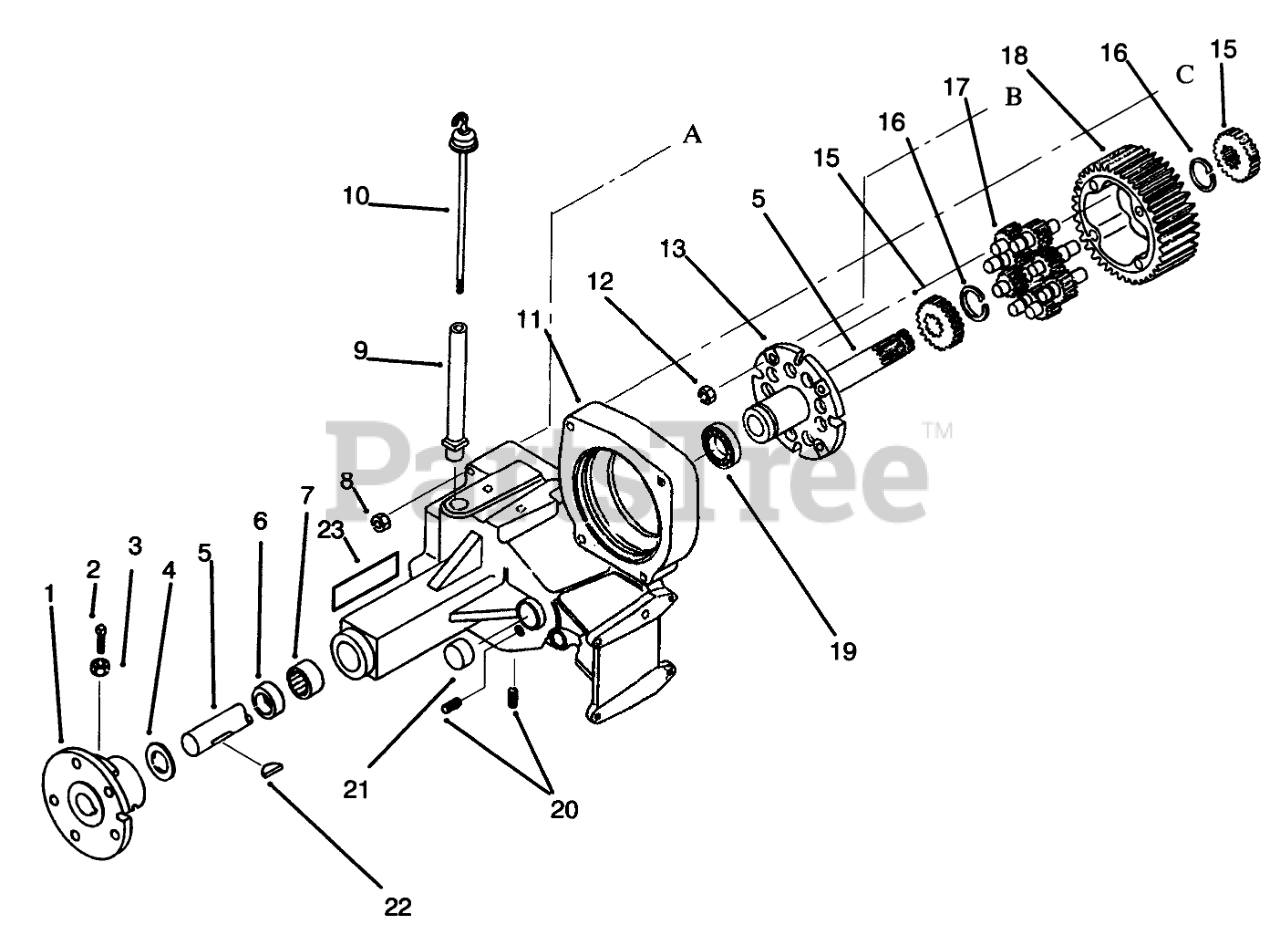

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 105763

Hub Rear
(Superseded to 105763-03)

Note: Note: In Illustration Center lines A, B and C Continue on next page

$165.99

$

Usually ships in 3-6 days

0

2

Toro 3243-5

SCREW-SET, SQH

Note: Note: In Illustration Center lines A, B and C Continue on next page

$2.99

$

In Stock, only 3 left!

0

3

Toro 3218-3

NUT-JAM

Note: Note: In Illustration Center lines A, B and C Continue on next page

$0.99

$

In Stock, Qty 20+

0

4

Toro 106826

WASHER-THRUST

Note: Note: In Illustration Center lines A, B and C Continue on next page

$11.99

$

In Stock, Qty 6

0

5

Toro 108362

AXLE-REAR RH

Note: Note: In Illustration Center lines A, B and C Continue on next page

$

$

Not available

6

Toro 6449

SEAL-OIL

Note: Note: In Illustration Center lines A, B and C Continue on next page

$20.99

$

In Stock, only 2 left!

0

7

Toro 9416

BEARING

Note: Note: In Illustration Center lines A, B and C Continue on next page

$70.99

$

Usually ships in 3-6 days

0

8

Toro 3296-39

NUT-LOCK, NI

Note: Note: In Illustration Center lines A, B and C Continue on next page

$2.99

$

In Stock, Qty 20+

0

9

Toro 106448

NIPPLE-TRANS FILL

Note: Note: In Illustration Center lines A, B and C Continue on next page

$

$

Not available

10

Toro 110768

Dipstick
(Superseded to 110768-03)

Note: Note: In Illustration Center lines A, B and C Continue on next page

$

$

Not available

11

Toro 92-7298

Case-Transaxle, RH (Incl. Ref. #23)

Note: Note: In Illustration Center lines A, B and C Continue on next page

$

$

Not available

12

Toro 108881

NUT

Note: Note: In Illustration Center lines A, B and C Continue on next page

$6.49

$

In Stock, Qty 10

0

13

Toro 111196

END CAP-DIFFERENTIAL

Note: Note: In Illustration Center lines A, B and C Continue on next page

$254.99

$

In Stock, only 2 left!

0

15

Toro 101889

GEAR-AXLE DIFFERENTIAL

Note: Note: In Illustration Center lines A, B and C Continue on next page

$85.99

$

Usually ships in 3-6 days

0

16

Toro 105876

RING-SNAP

Note: Note: In Illustration Center lines A, B and C Continue on next page

$4.99

$

In Stock, only 2 left!

0

17

Toro 101623

GEAR-PINION, 11T

Note: Note: In Illustration Center lines A, B and C Continue on next page

$113.99

$

Usually ships in 3-6 days

0

18

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

Note: Note: In Illustration Center lines A, B and C Continue on next page

$1066.99

$

Usually ships in 3-6 days

0

19

Toro 111199

BEARING-BALL

Note: Note: In Illustration Center lines A, B and C Continue on next page

$122.99

$

In Stock, only 4 left!

0

20

Toro 281-10

PLUG

Note: Note: In Illustration Center lines A, B and C Continue on next page

$15.99

$

Usually ships in 3-6 days

0

21

Toro 1532

BEARING-NEEDLE

Note: Note: In Illustration Center lines A, B and C Continue on next page

$50.99

$

In Stock, only 4 left!

0

22

Toro 937108

KEY-WOODRUFF

Note: Note: In Illustration Center lines A, B and C Continue on next page

$4.99

$

In Stock, Qty 13

0

Toro 93-9814

Transaxle (Incl. Ref. #23)
(Superseded to 94-6672)

Note: Note: In Illustration Center lines A, B and C Continue on next page

$

$

Not available

23

Toro 88-2790

DECAL - DANGER

Note: Note: In Illustration Center lines A, B and C Continue on next page

$3.49

$

Usually ships in 3-6 days

0
