73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) FENDER, SEAT Parts Diagram

Garden Tractor

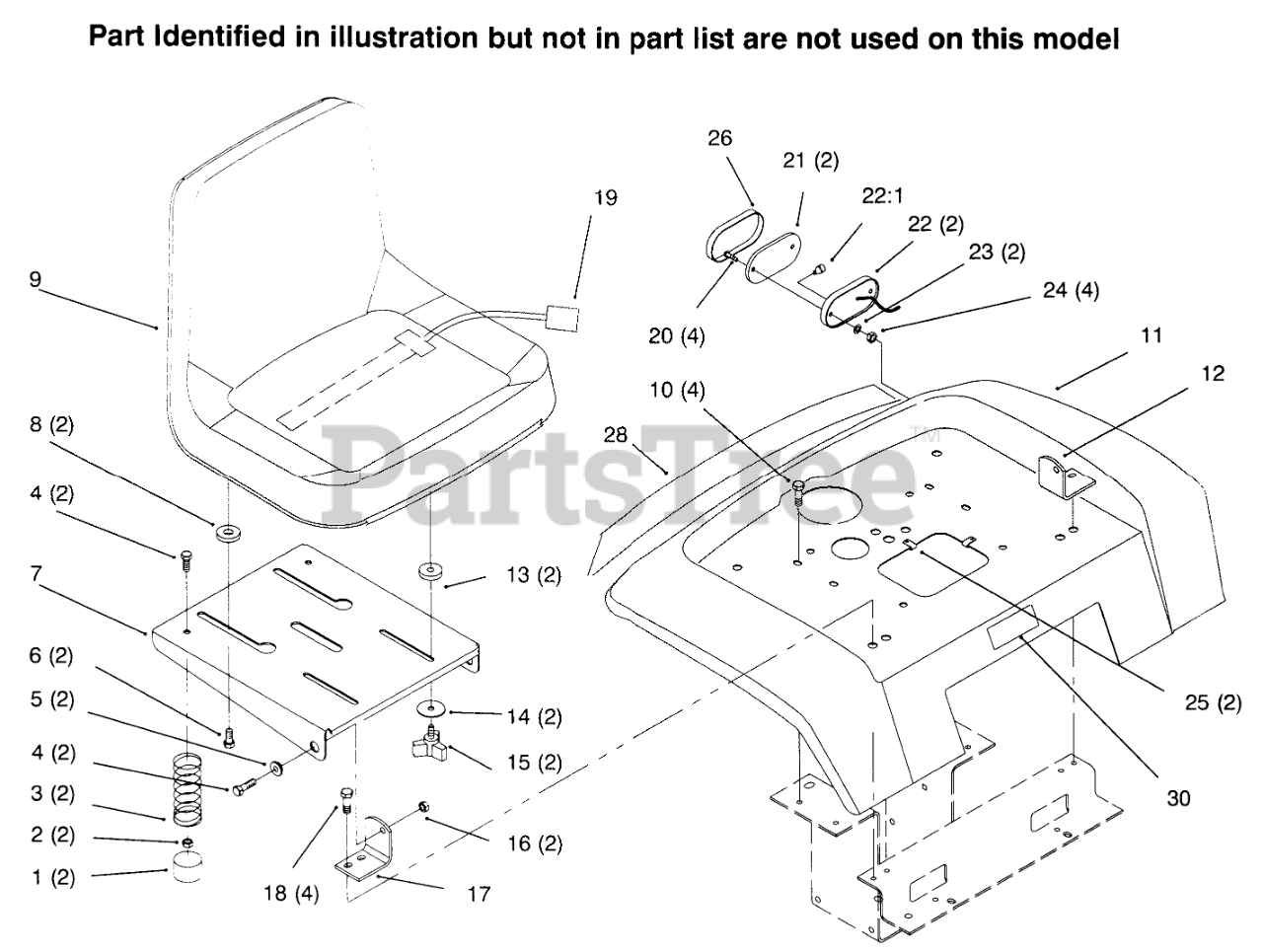

FENDER, SEAT Parts Diagram

  • Title

1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 11

0

2

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

3

Toro 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 19

0

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

6

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

7

Toro 92-6972-03

SUPPORT - SEAT (BLACK)

$

$

Not available

8

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

9

Toro 92-6511

SEAT-V-511

$

$

Not available

10

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

11

Toro 94-3722-01

FENDER

$

$

Not available

12

Toro 79-0970-03

BRACKET-PIVOT, LH

$12.99

$

Usually ships in 3-6 days

0

13

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

14

Toro 94-2869

WASHER

$1.49

$

In Stock, Qty 5

0

15

Toro 700806

KNOB

$19.99

$

In Stock, Qty 5

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 79-0950-03

BRACKET-PIVOT, RH

$14.99

$

Usually ships in 3-6 days

0

18

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

19

Toro 38-1420

SWITCH-SEAT

$

$

Not available

20

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

22

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

23

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

25

Toro 3023

SPEED CLIP

$

$

Not available

26

Toro 112564

LENS-TAIL LIGHT

$8.49

$

In Stock, Qty 12

0

28

Toro 94-6334

Decal-Rear Fender
(Superseded to 106-5846)

$25.99

$

Usually ships in 3-6 days

0

30

Toro 94-6331

DECAL - WHEELHORSE

$5.49

$

In Stock, only 2 left!

0
