73501 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) FRONT AXLE AND STEERING Parts Diagram

Garden Tractor

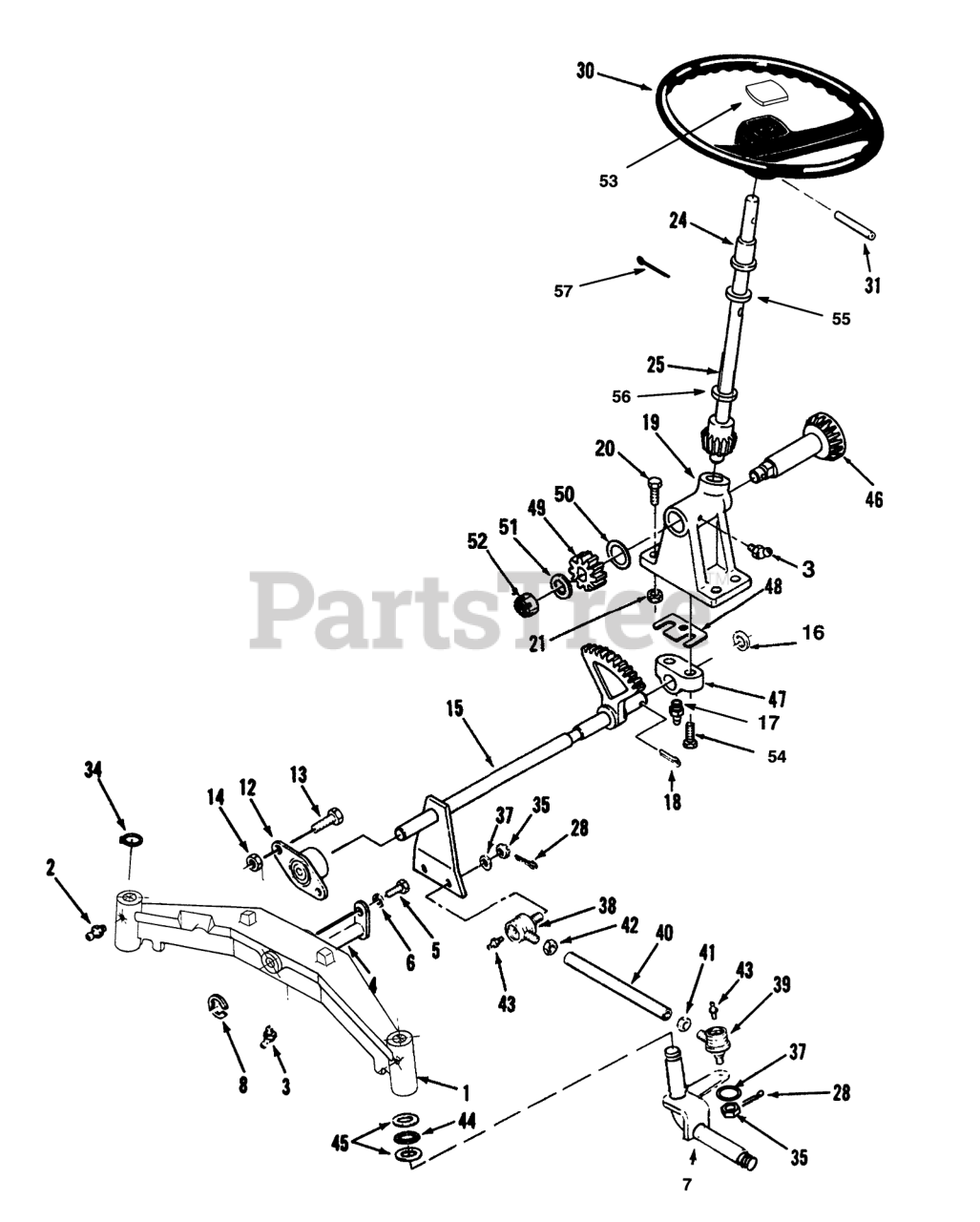

FRONT AXLE AND STEERING Parts Diagram

  • Title

1

Toro 116823

Axle-Front
(Superseded to 116823-01)

$

$

Not available

2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

3

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, only 4 left!

0

4

Toro 6216

PIN AND PLATE ASM

$44.99

$

In Stock, only 1 left!

0

5

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 112764

Spindle
(Superseded to 112764-01)

$

$

Not available

Toro 112765

Spindle
(Superseded to 112765-01)

$

$

Not available

8

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

12

Toro 6472

BEARING-FLANGED

$21.99

$

In Stock, only 2 left!

0

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 78-1490

Shaft
(Superseded to 78-1490-03)

$

$

Not available

16

Toro 920216

Washer
(Superseded to 9202164)

$3.49

$

Usually ships in 3-6 days

0

17

Toro 302-16

ZERK FITTING

$8.49

$

Usually ships in 3-6 days

0

18

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, Qty 5

0

19

Toro 78-1411

Steering Support
(Superseded to 78-1411-03)

$

$

Not available

20

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 109189

BEARING-FLANGED

$2.99

$

In Stock, Qty 20+

0

25

Toro 92-0995

WLDMT-STRG SHAFT

$370.99

$

Usually ships in 3-6 days

0

28

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

30

Toro 76-1420

Steering Wheel (Incl. Ref. #53)

$217.99

$

Usually ships in 3-6 days

0

31

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

34

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 18

0

35

Toro 915031

NUT

$1.49

$

Usually ships in 3-6 days

0

37

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

38

Toro 112772

Tie Rod End-Thread RH (Incl. Ref. #35)
(Superseded to 112772-03)

$73.99

$

In Stock, only 1 left!

0

39

Toro 112771

Tie Rod End-Thread LH (Incl. Ref. #35)
(Superseded to 112771-03)

$73.99

$

In Stock, only 1 left!

0

40

Toro 112773

Tube
(Superseded to 112773-01)

$

$

Not available

41

Toro 112775

NUT-HEX JAM 9/16-18

$

$

Not available

42

Toro 3220-11

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

43

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

44

Toro 9865

BEARING-THRUST
(Superseded to 252-66)

$12.99

$

In Stock, only 3 left!

0

45

Toro 9548

WASHER-THRUST

$

$

Not available

46

Toro 78-1450

WLDMT-C SHAFT

$

$

Not available

47

Toro 88-3240

BLOCK-BEARING

$

$

Not available

48

Toro 78-1531

SHIM-.010

$

$

Not available

49

Toro 78-1481

PINION-SPUR

$

$

Not available

50

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

51

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 915032

Nut
(Superseded to 32136-3)

$1.99

$

Usually ships in 3-6 days

0

53

Toro 78-0370

STRG-WHL INSERT TORO

$

$

Not available

54

Toro 9080376

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

55

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

56

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

57

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, Qty 6

0
