73501 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) GEARCASE, IGNITION CONTROL, ALTERNATOR AND REGULATOR Parts Diagram

Garden Tractor

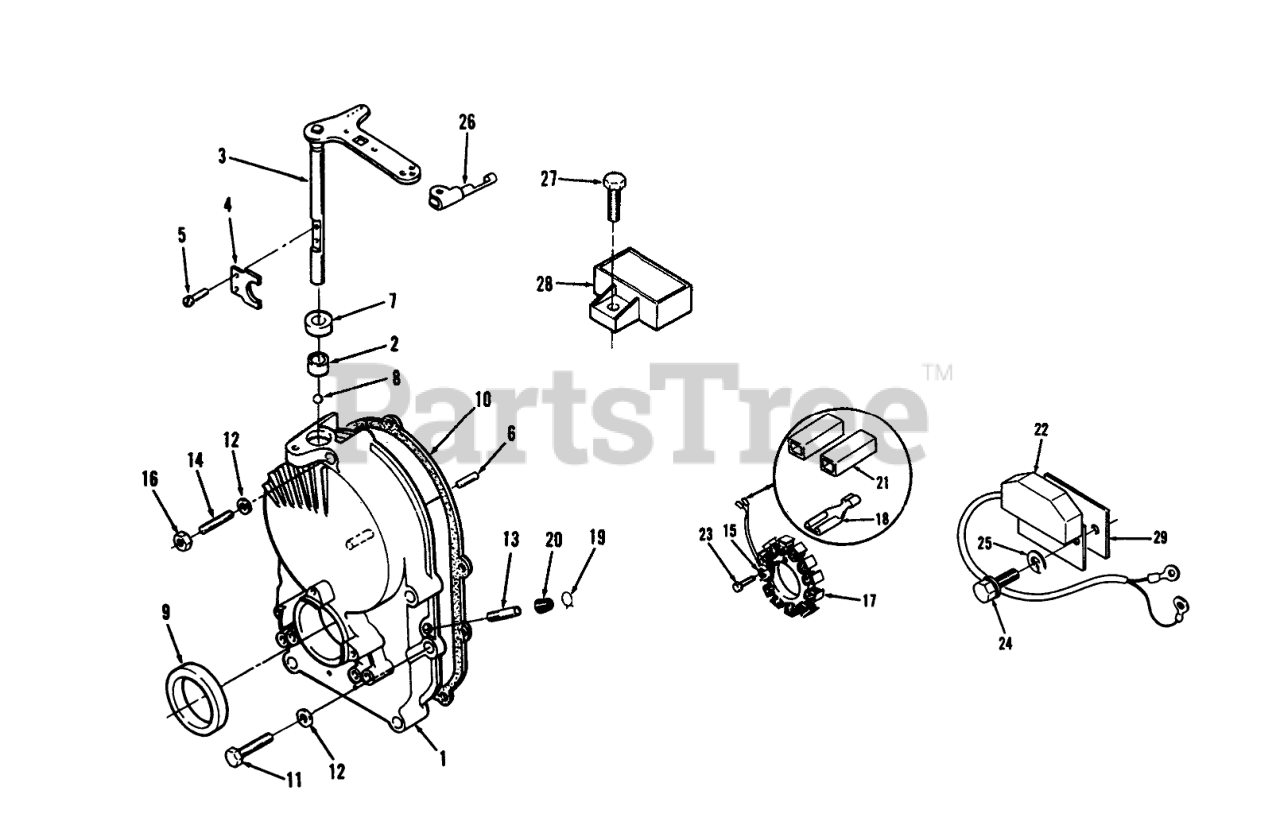

GEARCASE, IGNITION CONTROL, ALTERNATOR AND REGULATOR Parts Diagram

  • Title

1

Toro NN10825

GEAR-CASE KIT

Note: Not illustrated

$

$

Not available

2

Toro NN10329

Bearing
(Superseded to 57-9650)

Note: Not illustrated

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

Note: Not illustrated

$176.99

$

Usually ships in 3-6 days

0

4

Toro 59-0420

YOKE

Note: Not illustrated

$

$

Not available

5

Toro NN10388

Screw
(Superseded to 59-0950)

Note: Not illustrated

$

$

Not available

6

Toro NN10335

Washer
(Superseded to 59-0740)

Note: Not illustrated

$6.49

$

In Stock, only 1 left!

0

7

Toro 57-9570

SEAL

Note: Not illustrated

$

$

Not available

8

Toro 57-9630

BALL

Note: Not illustrated

$

$

Not available

9

Toro 57-9580

SEAL

Note: Not illustrated

$

$

Not available

10

Toro NN10895

Gasket
(Superseded to 71-6360)

$

$

Not available

11

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

12

Toro 57-9750

WASHER

$

$

Not available

13

Toro NN10210

Vacuum Tube
(Superseded to 59-0360)

Note: Not illustrated

$

$

Not available

14

Toro NN10352

Stud
(Superseded to 59-0790)

$

$

Not available

15

Toro 82-1610

Washer-Lock
(Superseded to 325-32)

$7.49

$

Usually ships in 3-6 days

0

16

Toro NN10426

Nut
(Superseded to 59-1130)

$

$

Not available

17

Toro NN10518

Stator (Includes Terminals)
(Superseded to 92-0967)

$343.99

$

Usually ships in 3-6 days

0

18

Toro NN10290

Stator Leads Terminal
(Superseded to 59-0590)

$4.99

$

Usually ships in 3-6 days

0

19

Toro 57-9550

CLAMP

Note: Not illustrated

$

$

Not available

20

Toro 59-0370

CAP-FUEL OUTLET

Note: Not illustrated

$

$

Not available

21

Toro 82-1000

Body-Terminal Connector Kit(Includes Terminals)

$48.99

$

Usually ships in 3-6 days

0

22

Toro NN10444

Control-Ignition
(Superseded to 71-6380)

$431.99

$

Usually ships in 3-6 days

0

23

Toro 82-1500

Screw-HH
(Superseded to 71-6390)

$

$

Not available

24

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

25

Toro 82-1660

WASHER-LOCK

$

$

Not available

26

Toro 57-9730

CLIP

$5.99

$

Usually ships in 3-6 days

0

27

Toro 59-1080

SCREW-HWH

$5.99

$

Usually ships in 3-6 days

0

28

Toro NN10261

Regulator
(Superseded to 117-2742)

$256.99

$

In Stock, only 2 left!

0

29

Toro NN10516

Insulator
(Superseded to 71-6410)

$11.99

$

Usually ships in 3-6 days

0
