73501 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) SEAT Parts Diagram

Garden Tractor

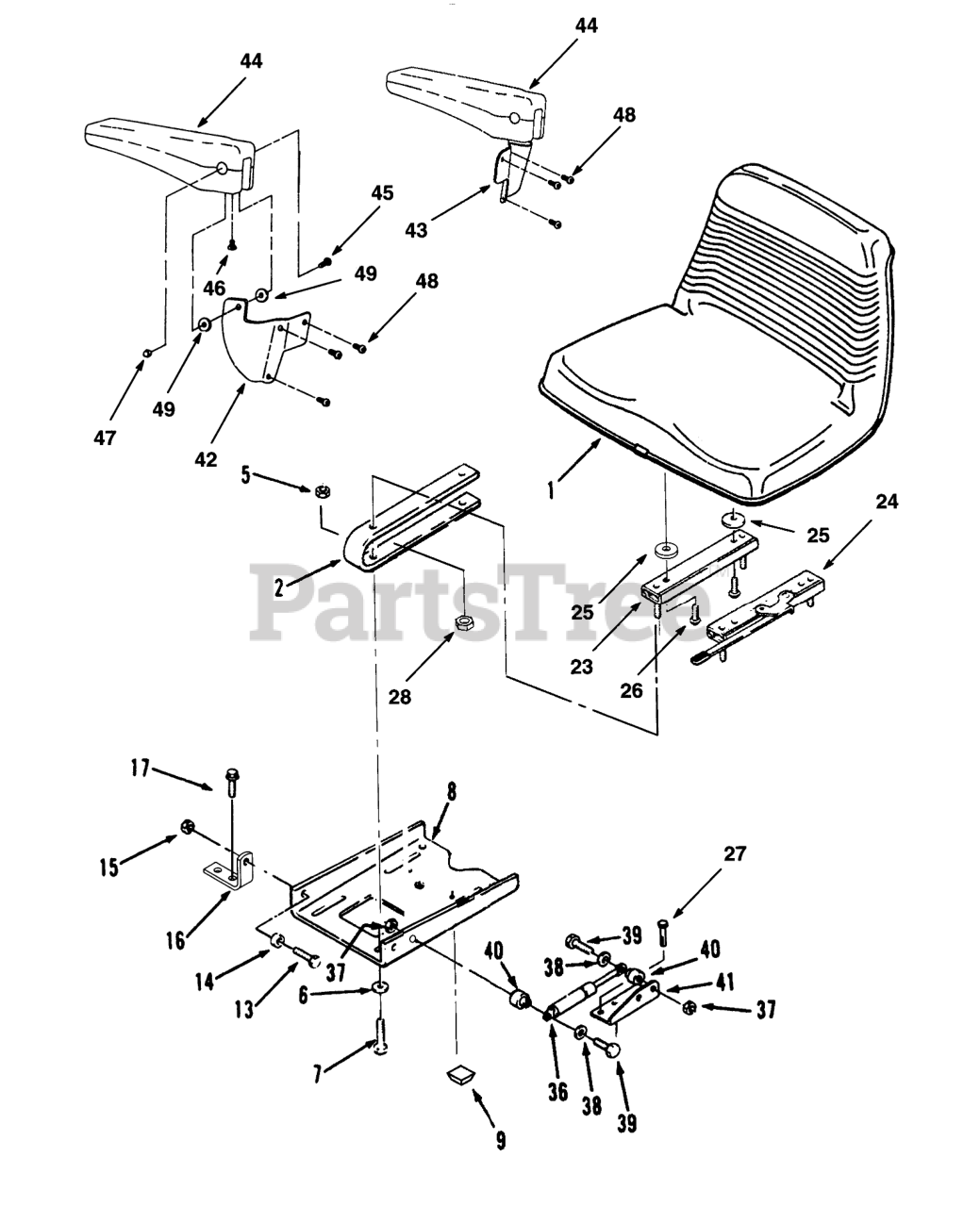

SEAT Parts Diagram

  • Title

1

Toro 88-3220

Seat
(Superseded to 98-1625)

$

$

Not available

2

Toro 114263

Seat Spring
(Superseded to 114263-03)

$189.99

$

In Stock, only 2 left!

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 78-2990

Plate-SeatPivot
(Superseded to 78-2990-03)

$

$

Not available

9

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 105524

BRACKET-PIVOT

$

$

Not available

17

Toro 913464

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

23

Toro 114265

ADJUSTER-R.H. SEAT

$

$

Not available

24

Toro 114264

Adjuster-Seat
(Superseded to 93-0319)

$

$

Not available

25

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

26

Toro 9108652

Bolt

$

$

Currently unavailable

27

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

28

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

36

Toro 114343

GAS SPRING

$113.99

$

In Stock, only 2 left!

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 114344

SPACER

$2.49

$

Usually ships in 3-6 days

0

41

Toro 114345

BRACKET-CYLINDER R

$

$

Not available

42

Toro 92-0986

LH ARM BRACKET

$

$

Not available

43

Toro 92-0987

RH ARM BRACKET

$146.99

$

Usually ships in 3-6 days

0

44

Toro 92-0988

ARMREST

$

$

Not available

45

Toro 92-0989

3/8-16X1-1/2 SCREW

$

$

Not available

46

Toro 92-0990

3/8-16 X 3/4 SCREW

$

$

Not available

47

Toro 92-0991

3/8-16 ACORN LOCKNUT

$

$

Not available

48

Toro 92-0992

3/8-16 X 5/8 SCREW

$

$

Not available

49

Toro 92-0993

NYLON SPACER

$

$

Not available

Toro 88-3230

Kit-Armrest(Incl. Ref.#42-49)

Note: Not illustrated

$

$

Not available
