73501 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000411) (1995) HYDROSTATIC LIFT LINKAGE Parts Diagram

Garden Tractor

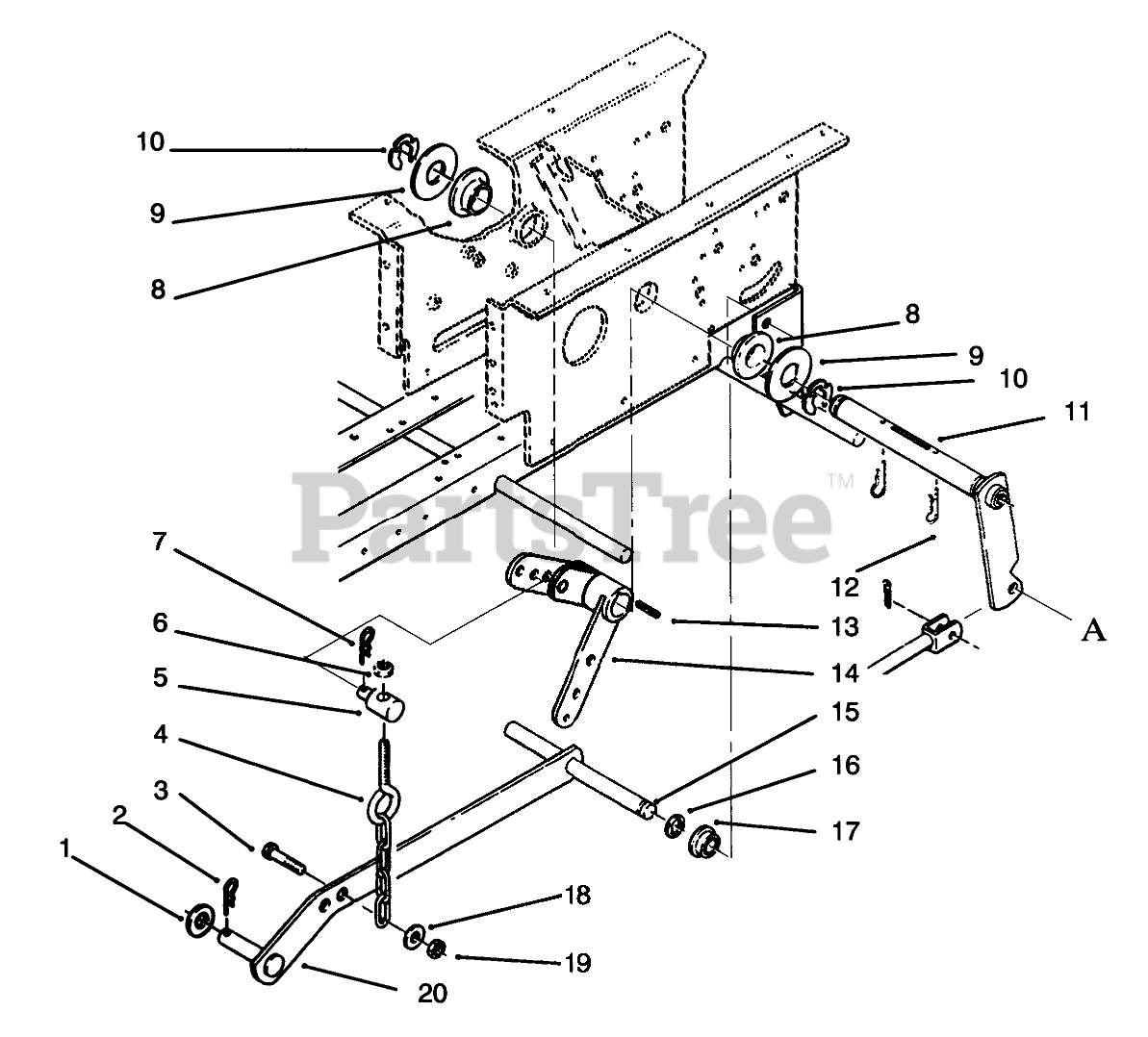

HYDROSTATIC LIFT LINKAGE Parts Diagram

  • Title

1

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 106522

CHAIN-LIFT

$31.99

$

In Stock, only 3 left!

0

5

Toro 79-5720

TRUNNION

$87.99

$

Usually ships in 3-6 days

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

8

Toro 106269

BEARING-FLANGE

$8.99

$

In Stock, only 2 left!

0

9

Toro 3256-62

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

10

Toro 32151-91

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

11

Toro 121100

WLDMT-LIFT ARM

$

$

Not available

12

Toro 9335074

PIN-HAIR

$4.99

$

In Stock, Qty 5

0

13

Toro 1121

KEY-SQUARE

$10.99

$

Usually ships in 3-6 days

0

14

Toro 79-5700

WLDMT-LIFT LEVER

$

$

Not available

15

Toro 102374

PIN-PIVOT

$17.99

$

Usually ships in 3-6 days

0

16

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 15

0

17

Toro 6229

BUSHING

$10.99

$

In Stock, only 3 left!

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 120400

Bar-Lift
(Superseded to 120400-03)

$

$

Not available
