73520 (520-H) - Toro Garden Tractor (SN: 059000178 - 059999999) (1995) BATTERY & HEADLIGHTS ASSEMBLY Parts Diagram

Garden Tractor

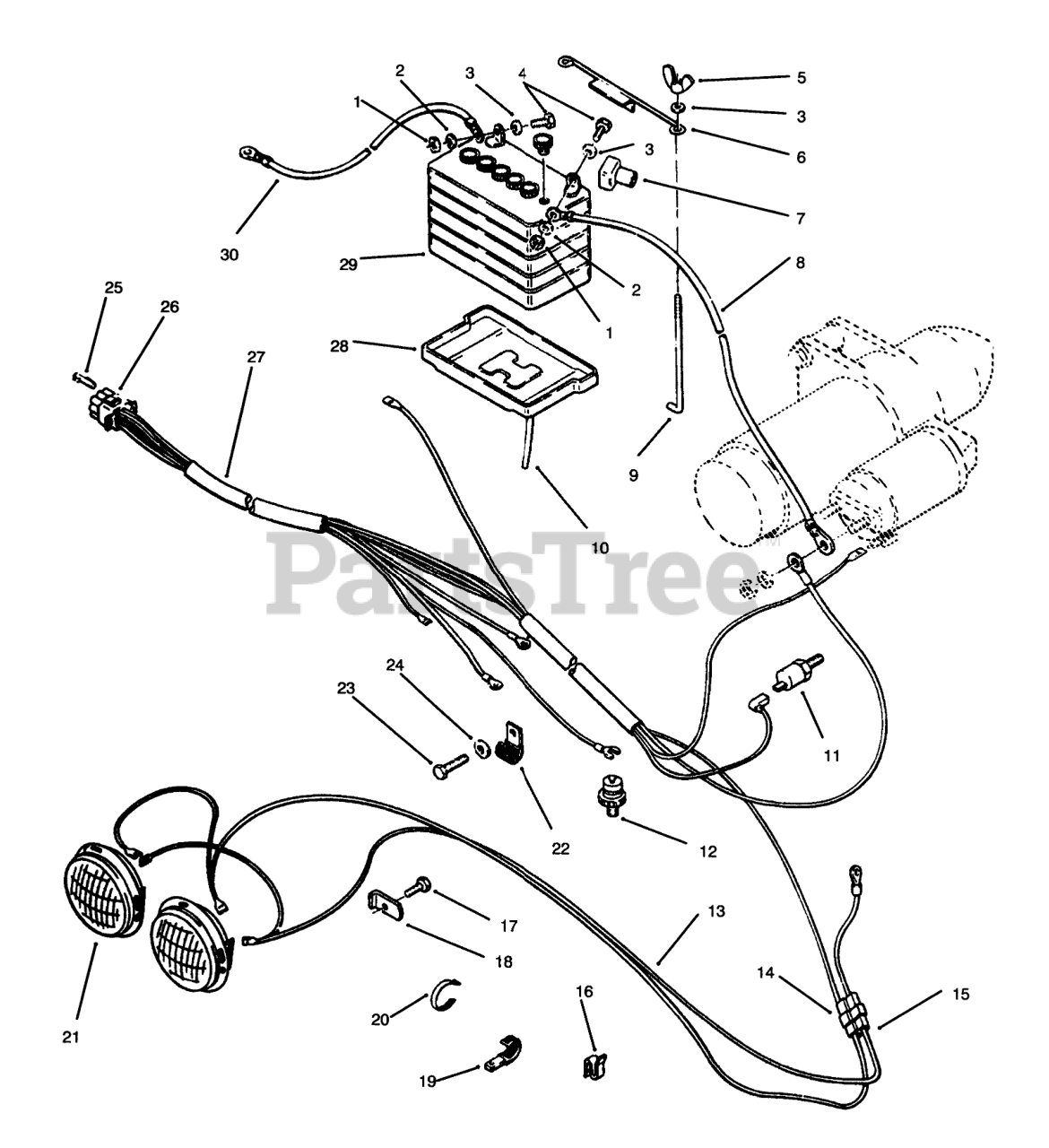

BATTERY & HEADLIGHTS ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 1 left!

0

6

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

7

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

8

Toro 113925

ASS'Y-WIRE

$73.99

$

Usually ships in 3-6 days

0

9

Toro 113969

HOOK-BATTERY RETAIN

$14.99

$

In Stock, only 3 left!

0

10

Toro 114720

TUBE-21" BATTERY DRAIN

$6.99

$

Usually ships in 3-6 days

0

11

Toro NN10274

HIGH TEMPERATURE

$

$

Not available

12

Toro 94-1845

SWITCH - OIL PRESSURE

$

$

Not available

13

Toro 114052

HARNESS-HEADLIGHT

$

$

Not available

14

Toro NN10278

MALE CONNECTOR

$

$

Not available

15

Toro 109357

CONNECTOR BODY

$

$

Not available

16

Toro 3023

SPEED CLIP

$

$

Not available

17

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

18

Toro 109459

LOCK-HEADLIGHT

$6.99

$

In Stock, Qty 7

0

19

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

20

Toro 100571

PLASTIC TIE

$

$

Not available

21

Toro 102881

HEADLAMP

$

$

Not available

22

Toro 71-6220

CLIP-WIRE

$

$

Not available

23

Toro 82-1540

SCREW-HWH

$

$

Not available

24

Toro NN10425

LOCKWASHER 1/4 IT

$

$

Not available

25

Toro NN10279

CONTACT SOCKET

$7.99

$

In Stock, only 2 left!

0

26

Toro NN10281

CONNECTOR CAP

$

$

Not available

27

Toro 94-1846

HARNESS - ENGINE WIRE

$

$

Not available

28

Toro 106498

THRUST WASHER

$130.99

$

Usually ships in 3-6 days

0

29

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

30

Toro 114210

ASS'Y-WIRE

$51.99

$

Usually ships in 3-6 days

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 14

0
