73520 (520-H) - Toro Garden Tractor (SN: 059000178 - 059999999) (1995) FRONT AXLE AND WHEEL ASSEMBLY Parts Diagram

Garden Tractor

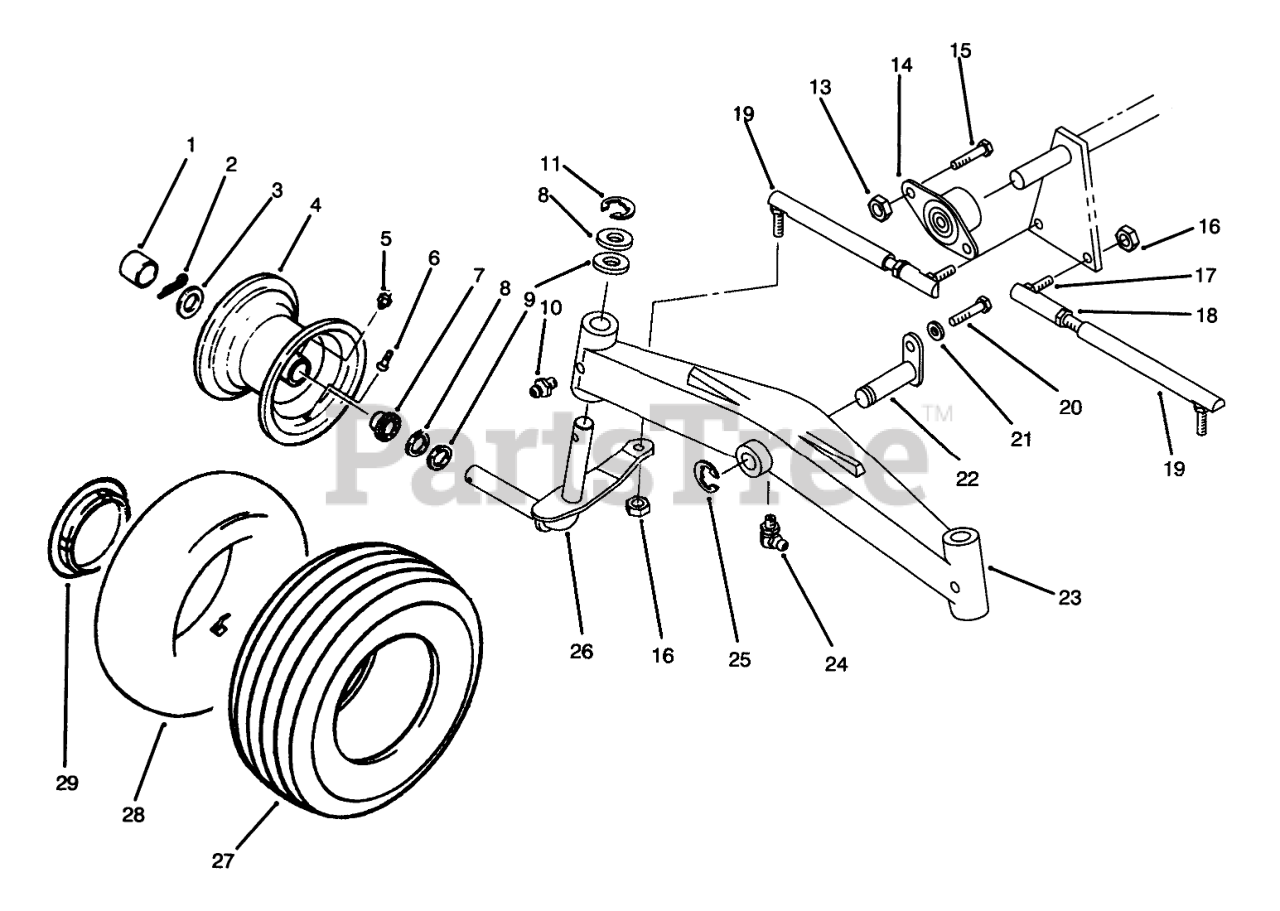

FRONT AXLE AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 111951

HUBCAP

$14.99

$

In Stock, Qty 5

0

2

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

3

Toro 111952

WASHER WHEEL

$6.49

$

In Stock, Qty 5

0

4

Toro 93-9802

Assembly-Wheel (Incl. Ref. #5-7)
(Superseded to 93-9801)

$257.99

$

Usually ships in 3-6 days

0

5

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

6

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

7

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, Qty 12

0

8

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

9

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

10

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

11

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 6472

BEARING-FLANGED

$21.99

$

In Stock, only 2 left!

0

15

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

17

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 4 left!

0

18

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

19

Toro 78-2900

Assembly-Tie Rod (Incl.Ref.#17&18)

$64.99

$

In Stock, only 4 left!

0

20

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 6216

PIN AND PLATE ASM

$44.99

$

In Stock, only 1 left!

0

23

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

24

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, only 4 left!

0

25

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

26

Toro 113382

RH SPINDLE WA
(Superseded to 113382-01)

$95.99

$

In Stock, only 1 left!

0

Toro 113381

LH SPINDLE ASM
(Superseded to 113381-01)

$95.99

$

In Stock, only 1 left!

0

27

Toro 117127

Tire (16 x 6.5-8) 2-Ply -2 Wheel Axel

$

$

Not available

28

Toro 100079

TUBE

$

$

Not available

29

Toro 114427

8"-HUB CAP LOGO

$

$

Not available
