73590 (523 Dxi) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

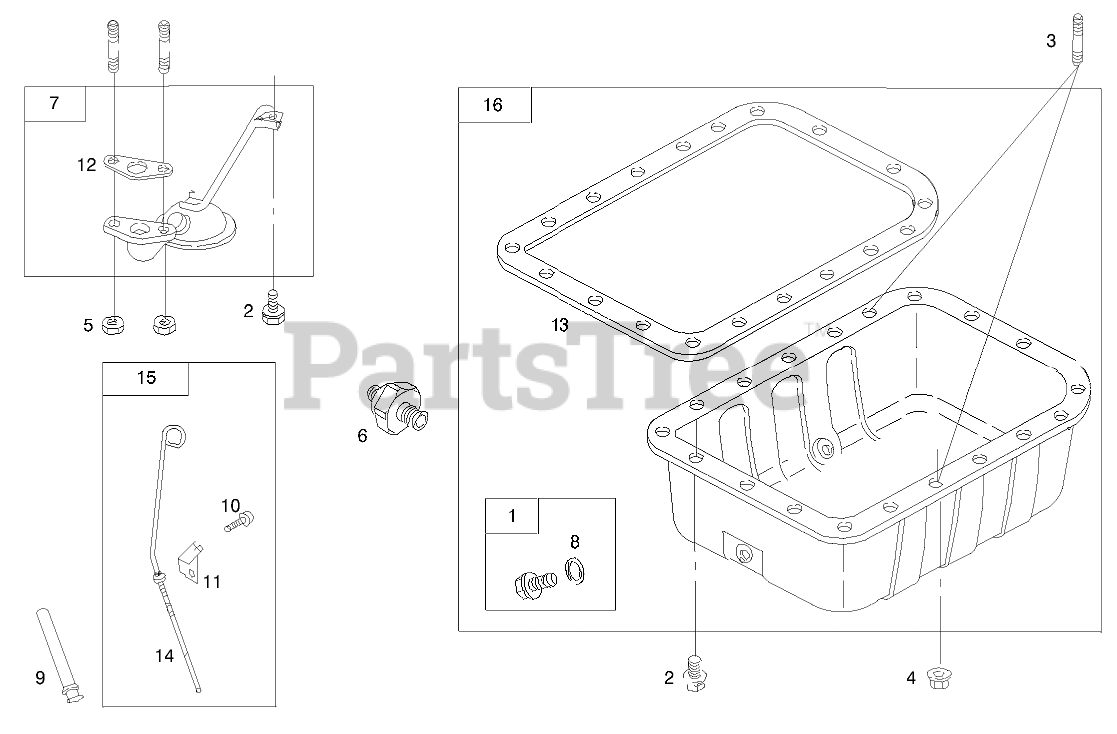

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9247

PLUG-DRAIN, OIL

$26.99

$

In Stock, only 1 left!

0

2

Toro 99-9111

SCREW-HEX

$15.99

$

Usually ships in 3-6 days

0

3

Toro 99-9112

STUD-METRIC

$17.99

$

Usually ships in 3-6 days

0

4

Toro 99-9113

NUT-HEX, METRIC

$10.99

$

Usually ships in 3-6 days

0

4

Toro 100-5222

NIPPLE ASM

$

$

Not available

5

Toro 99-9114

NUT-HEX, METRIC

$15.99

$

Usually ships in 3-6 days

0

5

Toro 100-5230

VALVE ASM

$

$

Not available

6

Toro 99-9115

SWITCH-PRESSURE, OIL

$66.99

$

Usually ships in 3-6 days

0

7

Toro 99-9116

SCREEN-PUMP, OIL

$111.99

$

Usually ships in 3-6 days

0

8

Toro 99-9249

WASHER-SEAL

$10.99

$

In Stock, only 3 left!

0

9

Toro 99-9118

TUBE-DIPSTICK

$21.99

$

Usually ships in 3-6 days

0

9

Toro 99-9667

GASKET-SET

$545.99

$

Usually ships in 3-6 days

0

10

Toro 99-9623

SCREW-HEX

$11.99

$

Usually ships in 3-6 days

0

11

Toro 99-9627

Bracket-Support
(Superseded to 99-9647)

$30.99

$

In Stock, Qty 16

0

12

Toro 99-9120

GASKET-STRAINER, OIL

$

$

Not available

13

Toro 99-9121

GASKET-PAN, OIL

$71.99

$

In Stock, only 1 left!

0

14

Toro 99-9122

DIPSTICK

$

$

Not available

14

Toro 99-9668

VALVE OVERHAUL KIT

$313.99

$

Usually ships in 3-6 days

0

15

Toro 99-9648

DIPSTICK

$

$

Not available

15

Toro 99-9039

SHAFT-GEAR

$180.99

$

Usually ships in 3-6 days

0

16

Toro 99-9241

PAN-OIL
(Superseded to 99-9649)

$492.99

$

Usually ships in 3-6 days

0
