73590 (523 Dxi) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

Garden Tractor

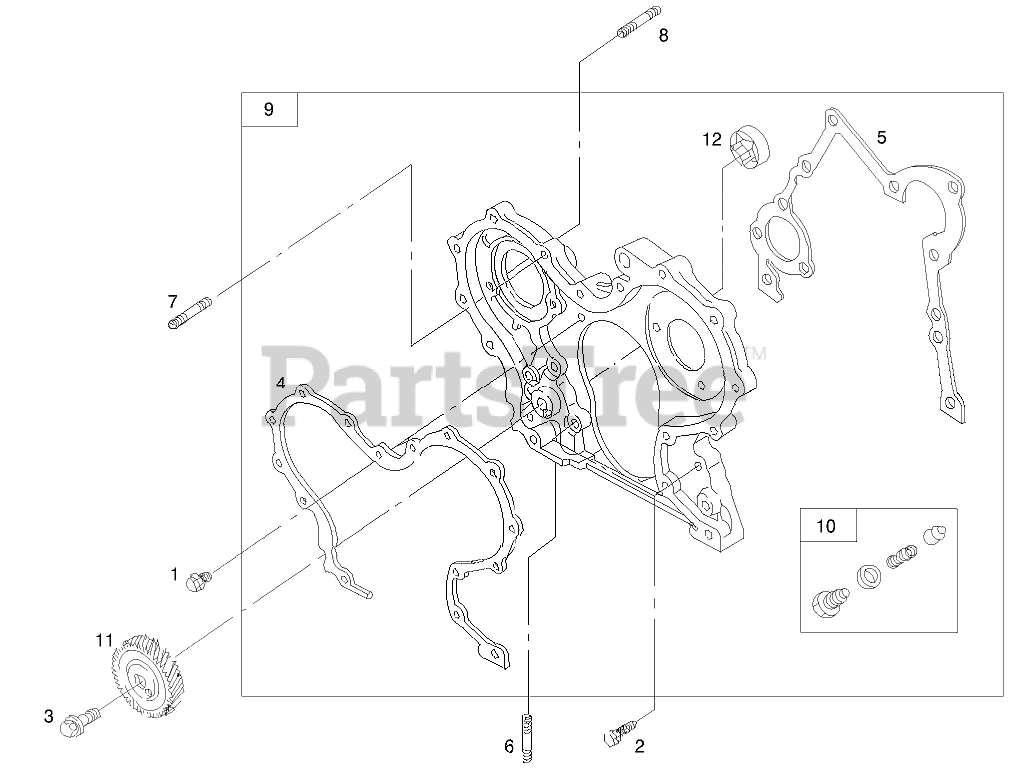

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9134

SCREW-HEX

$5.49

$

Usually ships in 3-6 days

0

2

Toro 99-9133

SCREW-HEX

$11.99

$

Usually ships in 3-6 days

0

3

Toro 99-9135

SCREW-HEX

$5.49

$

Usually ships in 3-6 days

0

4

Toro 99-9653

GASKET-COVER, GEAR

$39.99

$

Usually ships in 3-6 days

0

4

Toro 100-5222

NIPPLE ASM

$

$

Not available

5

Toro 99-9136

GASKET-COVER, GEAR

$44.99

$

Usually ships in 3-6 days

0

5

Toro 100-5230

VALVE ASM

$

$

Not available

6

Toro 99-9007

STUD-METRIC

$6.99

$

Usually ships in 3-6 days

0

7

Toro 99-9137

STUD-METRIC

$5.49

$

Usually ships in 3-6 days

0

8

Toro 99-9654

STUD-METRIC

$5.49

$

Usually ships in 3-6 days

0

9

Toro 99-9655

HOUSING-GEAR

$844.99

$

Usually ships in 3-6 days

0

9

Toro 99-9667

GASKET-SET

$545.99

$

Usually ships in 3-6 days

0

10

Toro 99-9142

VALVE-RELIEF, OIL

$64.99

$

Usually ships in 3-6 days

0

11

Toro 99-9656

GEAR-DRIVE

$237.99

$

Usually ships in 3-6 days

0

14

Toro 99-9668

VALVE OVERHAUL KIT

$313.99

$

Usually ships in 3-6 days

0

15

Toro 99-9039

SHAFT-GEAR

$180.99

$

Usually ships in 3-6 days

0
