73590 (523 Dxi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) CRUISE CONTROL ASSEMBLY Parts Diagram

Garden Tractor

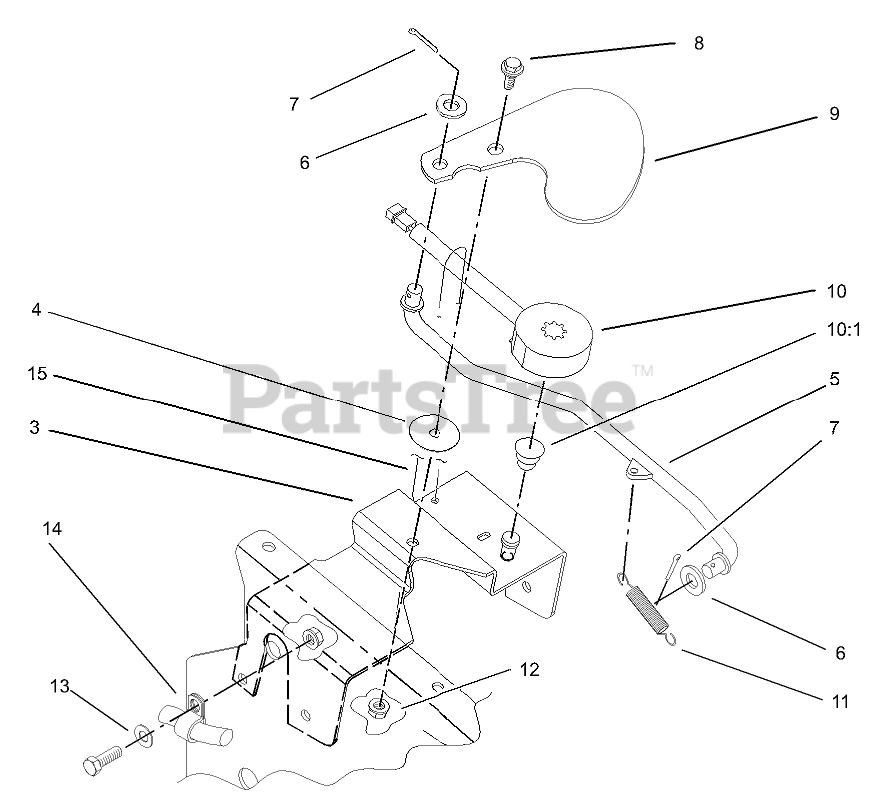

CRUISE CONTROL ASSEMBLY Parts Diagram

  • Title

3

Toro 99-6097-03

BRKT-CRUISE

$82.99

$

Usually ships in 3-6 days

0

4

Toro 94-7575

SPACER-CRUISE

$

$

Not available

5

Toro 94-7980

ROD-CONTROL, CRUISE

$

$

Not available

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

8

Toro 94-7582

BOLT-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

9

Toro 99-5309

PLATE-MAGNET

$

$

Not available

10

Toro 99-8090

MAGNET ASM

$301.99

$

Usually ships in 3-6 days

0

10:1

Toro 93-6601

SPRING-COMPRESSION

$2.49

$

Usually ships in 3-6 days

0

11

Toro 66-4160

SPRING-SOLENOID, UPPER

$

$

Not available

12

Toro 108881

NUT

$6.49

$

In Stock, Qty 10

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 98-2358

CLAMP - R

$

$

Not available

15

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0
