73590 (523 Dxi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) HOOD & HEADLIGHT ASSEMBLY Parts Diagram

Garden Tractor

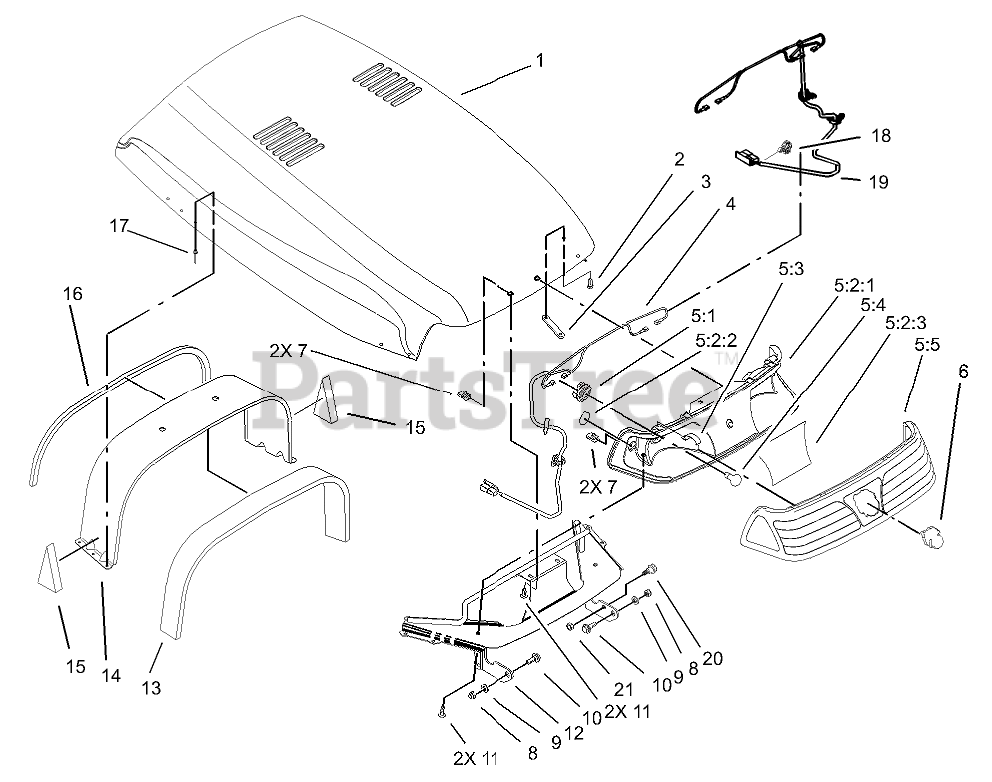

HOOD & HEADLIGHT ASSEMBLY Parts Diagram

  • Title

1

Toro 98-7205

HOOD ASM

$

$

Not available

2

Toro 63-8590

SCREW

$1.49

$

In Stock, Qty 6

0

3

Toro 99-2323

PLATE-NUT

$

$

Not available

5:1

Toro 98-3591

SEALED SOCKET ASM

$

$

Not available

5:2:1

Toro 94-2098

REFLECTOR-HEADLIGHT
(Superseded to 95-4166)

$

$

Not available

5:2:2

Toro 98-1602

DECAL-SIDELIGHT

$

$

Not available

5:2:3

Toro 98-3597

DECAL-REFLECTOR, HEADLIGHT

$47.99

$

Usually ships in 3-6 days

0

5:3

Toro 95-4129

CLIP-RETAINER

$3.99

$

Usually ships in 3-6 days

0

5:4

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

5:5

Toro 94-2099

LENS-HEADLIGHT

$143.99

$

Usually ships in 3-6 days

0

5:2

Toro 98-7210

LIGHT REFLECTOR ASM
(Superseded to 95-4166)

Note: Not illustrated

$

$

Not available

5

Toro 95-4166

HEADLIGHT ASM

Note: Not illustrated

$

$

Not available

6

Toro 95-4248

EMBLEM

$28.99

$

Usually ships in 3-6 days

0

7

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

11

Toro 92-7020

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

12

Toro 99-4962-03

BULKHEAD-FRONT

$

$

Not available

13

Toro 95-4078

SEAL-FOAM, REAR

$

$

Not available

14

Toro 95-3902-03

Bulkhead-Rear
(Superseded to 98-7204)

$

$

Not available

15

Toro 95-4259

FOAM-BULKHEAD, LOWER

$

$

Not available

16

Toro 95-4233

FOAM-TAPE

$

$

Not available

17

Toro 3269-12

RIVET-POP

$

$

Not available

18

Toro 98-1810

CLIP - CONVOLUTED

$2.99

$

Usually ships in 3-6 days

0

19

Toro 95-0691

HARNESS-WIRE, LIGHTS

$

$

Not available

20

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

21

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0
