74-0980 - Toro Electric Starter, Wide Area Mower BATTERY ASSEMBLY Parts Diagram

Electric Starter, Wide Area Mower

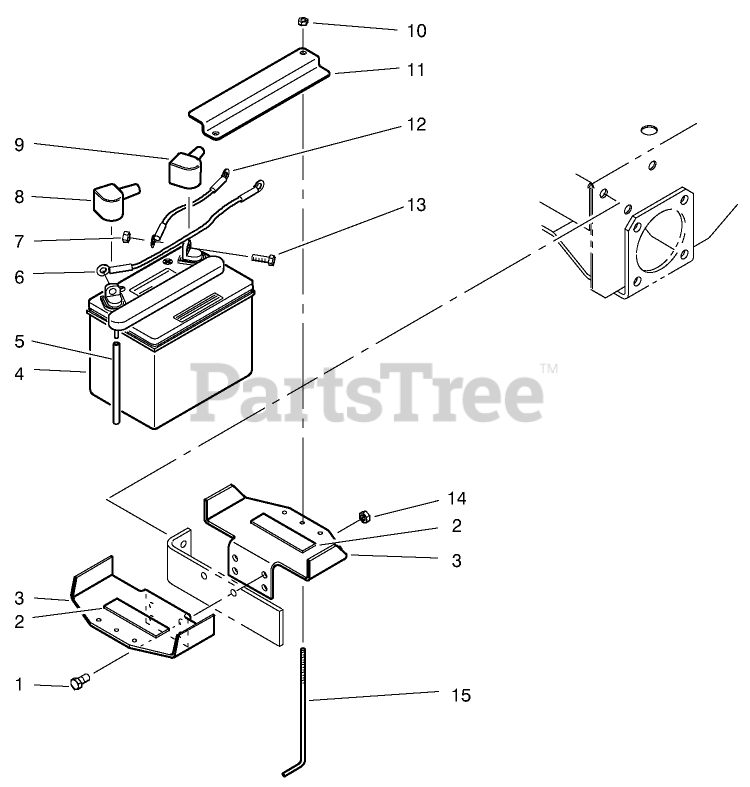

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 51-4210

PAD-TANK, FUEL

$

$

Not available

3

Toro 92-2350-01

HOLDER-BATTERY

$

$

Not available

4

Toro 92-1678

BATTERY
(Superseded to 104-8162)

$

$

Not available

5

Toro 68-3810

TUBE-VENT

$

$

Not available

6

Toro 54-3093

CABLE-BATTERY, NEGATIVE

$35.99

$

Usually ships in 3-6 days

0

7

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

8

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

9

Toro 77-0981

BOOT-TERMINAL, RED

$16.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 82-4620-01

STRAP - BATTERY

$57.99

$

Usually ships in 3-6 days

0

12

Toro 28-3893

WIRE ASM

$24.99

$

Usually ships in 3-6 days

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0
