74145 (2000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) DECK ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

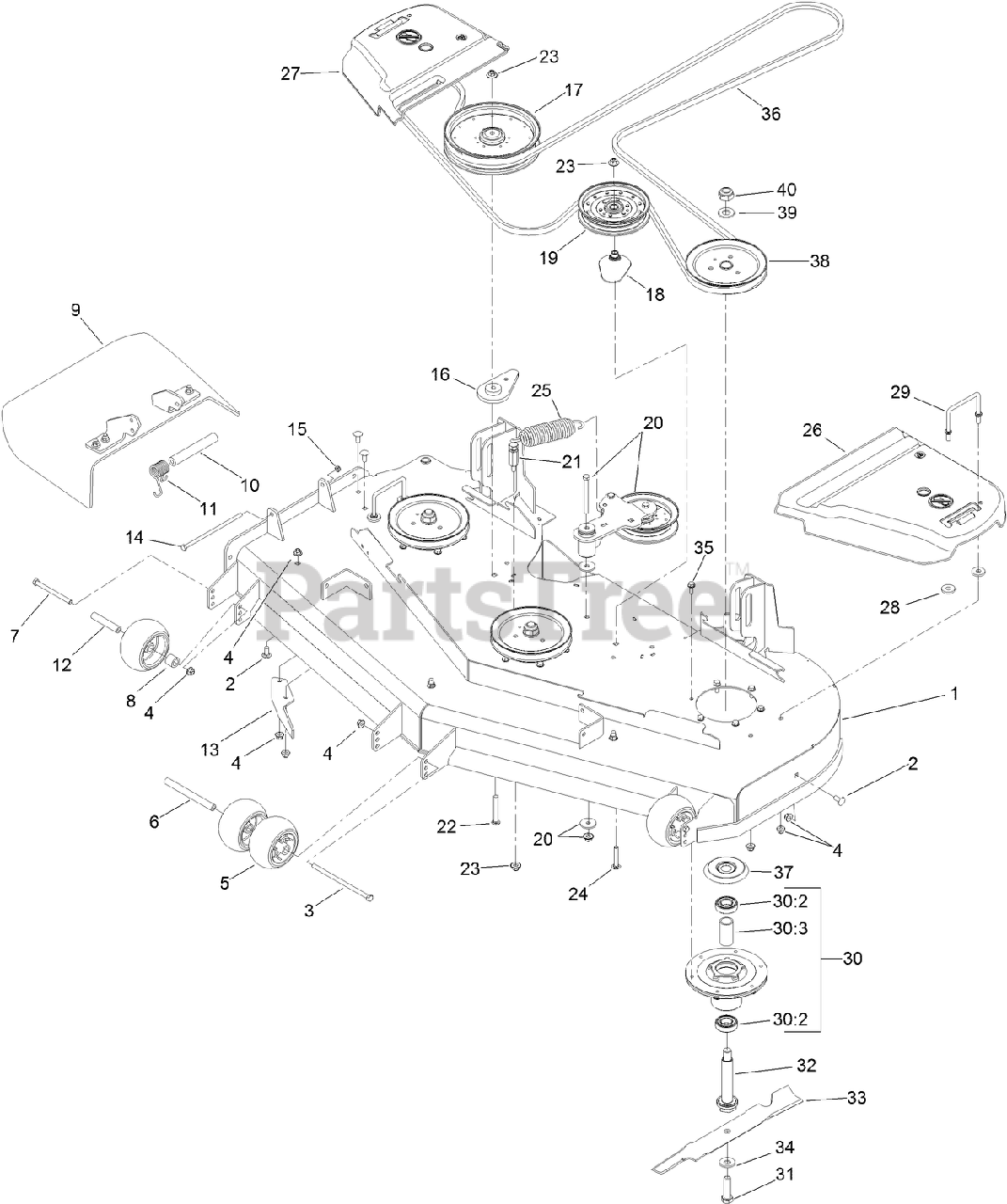

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 120-2461

DECK DECAL ASM

$2133.99

$

Usually ships in 3-6 days

0

2

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

3

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, Qty 20+

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

6

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

7

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

8

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

9

Toro 120-2451

DEFLECTOR ASM

$232.99

$

Usually ships in 3-6 days

0

10

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0

11

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, Qty 7

0

12

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

13

Toro 106-3216-01

BAFFLE-DISCHARGE

$23.99

$

Usually ships in 3-6 days

0

14

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

16

Toro 109-9416

SPACER-IDLER

$67.99

$

In Stock, Qty 11

0

17

Toro 109-8590

PULLEY-IDLER

$188.99

$

In Stock, Qty 10

0

18

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

19

Toro 116-4670

PULLEY-IDLER, FLAT
(Superseded to 136-5404)

$60.99

$

In Stock, Qty 14

0

20

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

21

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

22

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

23

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

0

25

Toro 116-6317

SPRING-EXTENSION

$27.99

$

In Stock, Qty 20+

0

26

Toro 109-6938

COVER-BELT, LH

$94.99

$

In Stock, Qty 13

0

27

Toro 116-0094

COVER-BELT, RH

$84.99

$

In Stock, Qty 17

0

28

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

29

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 7

0

30

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$101.99

$

In Stock, Qty 20+

0

30:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

30:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, Qty 11

0

31

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

32

Toro 120-2505

SPINDLE-SHAFT

$56.99

$

In Stock, Qty 5

0

33

Toro 115-9649-03

BLADE-HI FLOW, 20.5 INCH

$31.99

$

In Stock, Qty 20+

0

34

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, Qty 20+

0

35

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

36

Toro 114-5858

BELT-V

$159.99

$

In Stock, only 2 left!

0

37

Toro 117-7210

SHIELD-BEARING

$9.99

$

In Stock, Qty 20+

0

38

Toro 120-7856

PULLEY B SECTION

$73.99

$

Usually ships in 3-6 days

0

39

Toro 92-5836

WASHER

$5.49

$

In Stock, Qty 6

0

40

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0
