Toro 74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230005001 - 230006000) (2003) HYDRAULIC SYSTEM ASSEMBLY Parts Lookup with Diagrams

1

Toro 103-1942

PUMP-HYD

$1071.99

$

In Stock, only 3 left!

1:10

Toro 103-2666

CYLINDER BLOCK KIT

Note: Not illustrated

$488.99

$

Usually ships in 3-6 days

1:14

Toro 106-2053

SHOCK VALVE KIT

Note: Not illustrated

$368.99

$

Usually ships in 3-6 days

1:1

Toro 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$79.99

$

In Stock, Qty 18

1:2

Toro 105-6185

Plate-Valve

Note: Not illustrated

$101.99

$

Usually ships in 3-6 days

1:8

Toro 103-2664

INPUT SHAFT KIT

Note: Not illustrated

$771.99

$

Usually ships in 3-6 days

1:9

Toro 94-6922

BEARING-THRUST

Note: Not illustrated

$61.99

$

In Stock, only 3 left!

3

Toro 103-1799

ELBOW-90 DEG

$28.99

$

In Stock, only 1 left!

3:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

5

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

7

Toro 1-653156

PULLEY

$71.99

$

In Stock, only 3 left!

8

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 13

9

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 10

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

15

Toro 103-2644

DECAL-EXHAUST

$2.99

$

In Stock, only 2 left!

16

Toro 103-1802

FITTING-ELBOW, 90 DEG

$22.99

$

In Stock, Qty 5

16:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

17

Toro 103-1940

ADAPTER-HYD, STRAIGHT

$23.99

$

In Stock, only 4 left!

17:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

17:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

18

Toro 1-633605

FITTING-HYD, 90 DEG

$47.99

$

In Stock, only 2 left!

18:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

18:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

19

Toro 1-653186

HOSE-FRONT

$75.99

$

In Stock, only 1 left!

20

Toro 1-653187

HOSE-REAR, RH

$76.99

$

In Stock, only 3 left!

21

Toro 103-2357

HYD HOSE ASM

$52.99

$

In Stock, only 3 left!

22

Toro 103-1801

Adapter-Straight

$29.99

$

In Stock, only 2 left!

22:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

23

Toro 103-1912

ADAPTER-STRAIGHT

$21.99

$

Usually ships in 3-6 days

23:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

24

Toro 103-1947

HYD Reservoir ASM

$257.99

$

Usually ships in 3-6 days

24:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 20+

24:1:2

Toro 103-1949

GASKET-CAP

$6.49

$

In Stock, only 4 left!

24:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 16

24:1

Reservoir-HYD

Note: Not serviced separately

$

Not available 

25

Toro 103-3071-03

STAND-RESERVOIR

$55.99

$

Usually ships in 3-6 days

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

27

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

29

Toro 103-3077

HYD HOSE ASM

$11.99

$

In Stock, only 1 left!

30

Toro 103-2930

HYD HOSE ASM

$87.99

$

In Stock, Qty 7

32

Toro 103-2889

Filter Head ASM

$103.99

$

Usually ships in 3-6 days

32:1

Toro 103-1912

ADAPTER-STRAIGHT

$21.99

$

Usually ships in 3-6 days

32:1:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

34

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 20+

34

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

In Stock, only 1 left!

35

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

36

Toro 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

37

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 20+

38

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

39

Toro 103-3809

HOSE-LH

$111.99

$

In Stock, only 2 left!

40

Toro 1-603991

Fitting-Straight

$20.99

$

In Stock, Qty 10

40:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

40:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

45

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

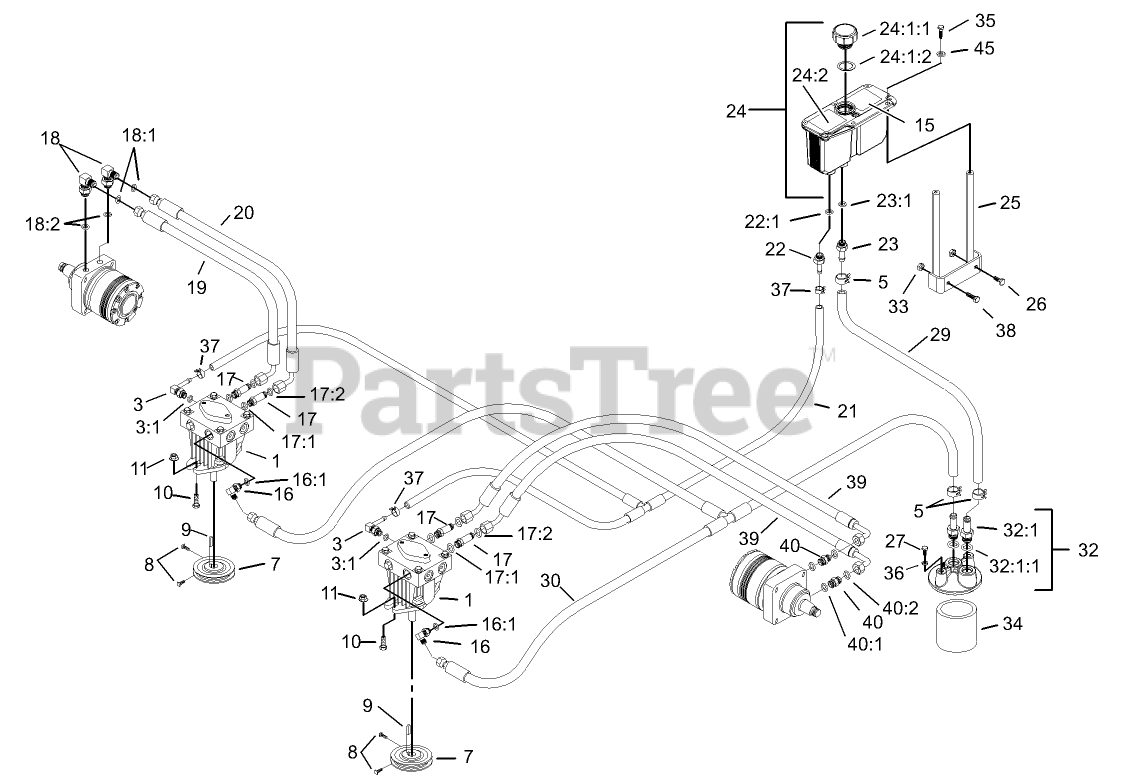

74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230005001 - 230006000) (2003) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram
