74179 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000389 - 220010042) (2002) CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH601V-CS06 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

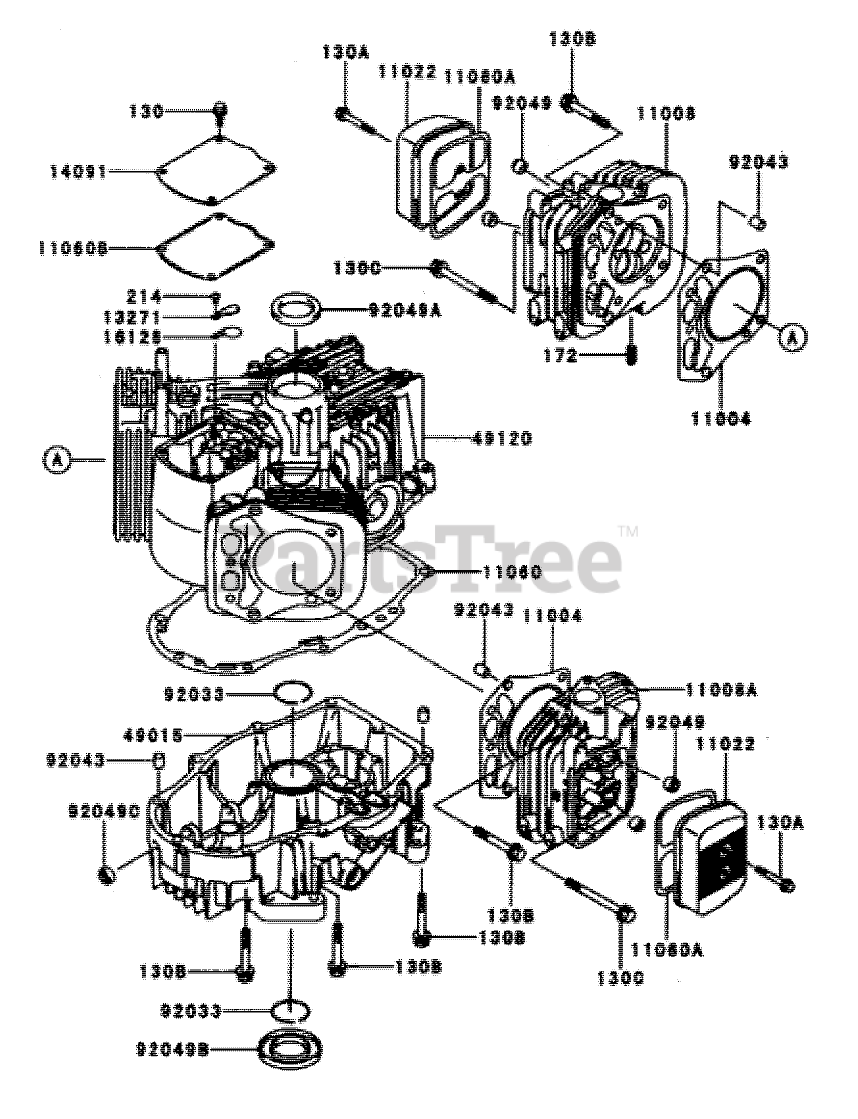

CYLINDER/CRANKCASE ASSEMBLY KAWASAKI FH601V-CS06 Parts Diagram

  • Title

11004

Kawasaki 11004-7004

Gasket-Head
(Superseded to 11004-7006)

$10.99

$

In Stock, Qty 20+

0

11008

Toro 11008-7003

Head-Comp-Cylinder No. 1

$

$

Currently unavailable

11008A

Toro 11008-7004

Head-Comp-Cylinder No. 2

$

$

Currently unavailable

11022

Toro 11022-7002

Case-Rocker

$

$

Currently unavailable

11060

Kawasaki 11060-7012

Gasket-Cover, Crankcase
(Superseded to 11061-7098)

$45.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7013

Gasket-Case, Rocker

$5.99

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-7014

Gasket-Breather

$6.49

$

In Stock, only 1 left!

0

13271

Kawasaki 13271-7006

Plate

$1.49

$

In Stock, Qty 18

0

14090

Kawasaki 14091-7004

Cover

$3.99

$

In Stock, only 1 left!

0

16126

Kawasaki 16126-7001

Valve

$2.49

$

In Stock, Qty 19

0

49015

Toro 49015-6220

Cover-Crankcase

$

$

Currently unavailable

49120

Kawasaki 49120-6122

Crankcase-Comp
(Superseded to 49120-6130)

$

$

Not available

92033

Kawasaki 92033-7004

Ring-Snap

$0.99

$

In Stock, Qty 20+

0

92043

Kawasaki 92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

$8.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-7002

Seal-Oil
(Superseded to 92049-7010)

$3.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7004

Seal-Oil
(Superseded to 92049-7011)

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

$0.99

$

In Stock, Qty 14

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

$2.49

$

In Stock, Qty 11

0

172

Toro 172G0818

Bolt-Stud (8X18)

$

$

Currently unavailable

214

Kawasaki 214B0408

SCREW-PAN (4X8)
(Superseded to 214AA0408)

$3.99

$

In Stock, only 4 left!

0
