74179 (Z 149) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000389 - 220010042) (2002) DECK ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

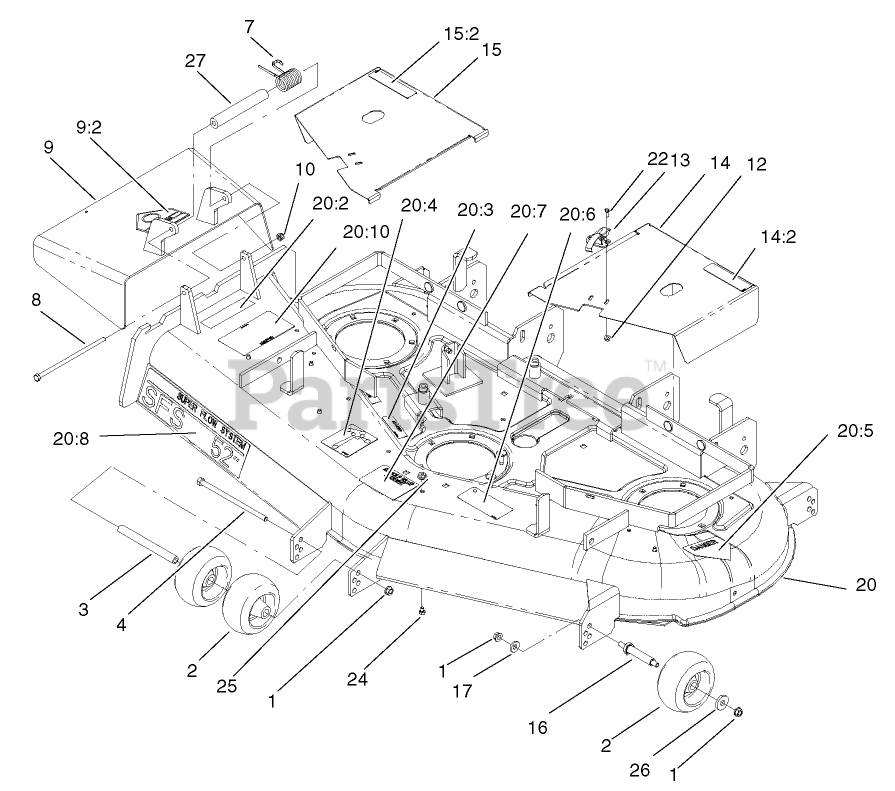

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

3

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

4

Toro 323-28

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

7

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

8

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

9

Toro 105-4623

Deflector ASM

$313.99

$

Usually ships in 3-6 days

0

9:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

13

Toro 249-21

CLAMP-SLOTTED

$19.99

$

In Stock, only 2 left!

0

14

Toro 99-3896

LH COVER ASM

$148.99

$

Usually ships in 3-6 days

0

14:2

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

15

Toro 99-3895

RH COVER ASM

$

$

Not available

15:2

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

16

Toro 99-2842

SPACER
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 20+

0

17

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

20

Toro 105-1695

DECK SERVICE ASM (52, 100 SERIES)
(Superseded to 106-5876)

$

$

Not available

20

Deck ASM W/ Decals

Note: Not serviced separately

$

$

Not available

20:2

Toro 104-8569

DECAL-WARNING

$

$

Not available

20:3

Toro 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 10

0

20:4

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 3 left!

0

20:5

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

20:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

20:7

Toro 98-3798

DECAL-WHEEL, GAGE

$13.99

$

Usually ships in 3-6 days

0

20:8

Toro 98-5953

DECAL

$54.99

$

Usually ships in 3-6 days

0

20:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

22

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

24

Toro 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

27

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0
