74214 (Z 287 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) TANK AND FUEL LINES ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

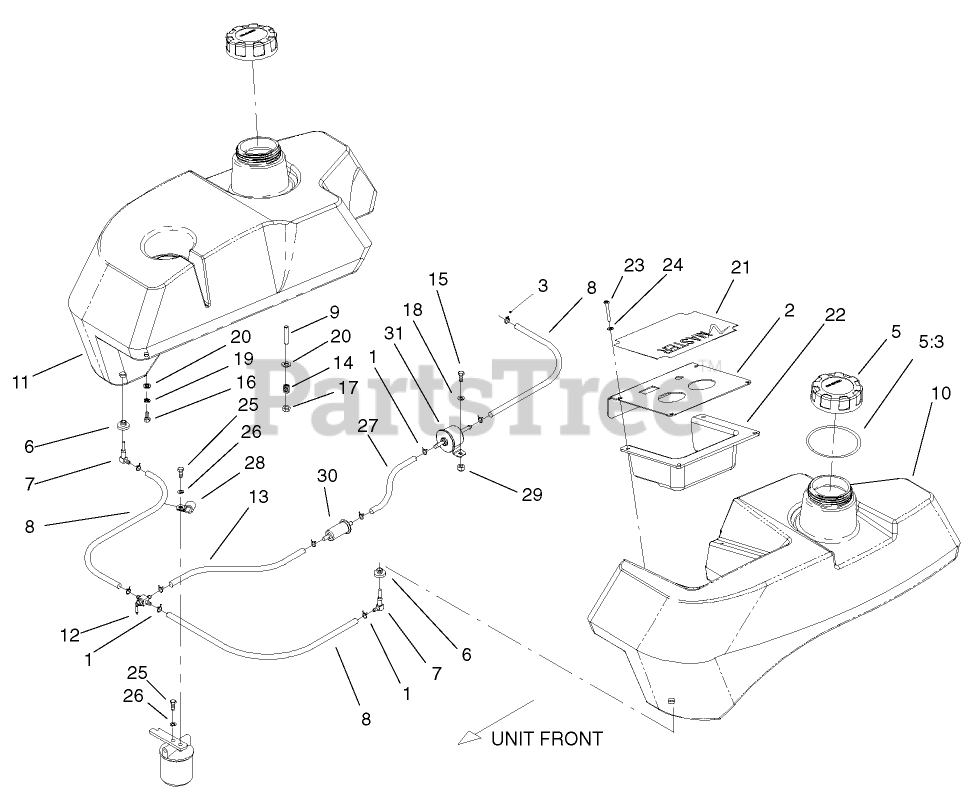

TANK AND FUEL LINES ASSEMBLY Parts Diagram

  • Title

1

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Toro 99-4617-03

PANEL-CONTROL

$

$

Not available

3

Toro 1-303308

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

5

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 10

0

5:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, Qty 5

0

6

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

7

Toro 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 20+

0

8

Toro 1-543456

HOSE-FUEL

$12.99

$

In Stock, Qty 7

0

9

Toro 1-633023

STUD

$6.49

$

In Stock, only 3 left!

0

10

Toro 104-5100

TANK-FUEL, LH
(Superseded to 105-3644)

$771.99

$

Usually ships in 3-6 days

0

11

Toro 104-5101

TANK-FUEL, RH
(Superseded to 105-3643)

$771.99

$

Usually ships in 3-6 days

0

12

Toro 1-633347

VALVE-FUEL

$74.99

$

In Stock, Qty 12

0

13

Toro 1-303426

HOSE-FUEL LINE

$9.49

$

In Stock, only 1 left!

0

14

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 10

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 99-4612

DECAL-CONTROL PANEL

$50.99

$

Usually ships in 3-6 days

0

22

Toro 99-4940

SHIELD-PANEL, CONTROL

$83.99

$

Usually ships in 3-6 days

0

23

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

26

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-643270

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

28

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 49019-1055

Filter-Fuel

Note: Obtain locally.

$

$

Not available

31

Toro 49040-2065

PUMP-FUEL

Note: Obtain locally.

$

$

Not available
