74214 (Z 287 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) ENGINE, CLUTCH AND AIR CLEANER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

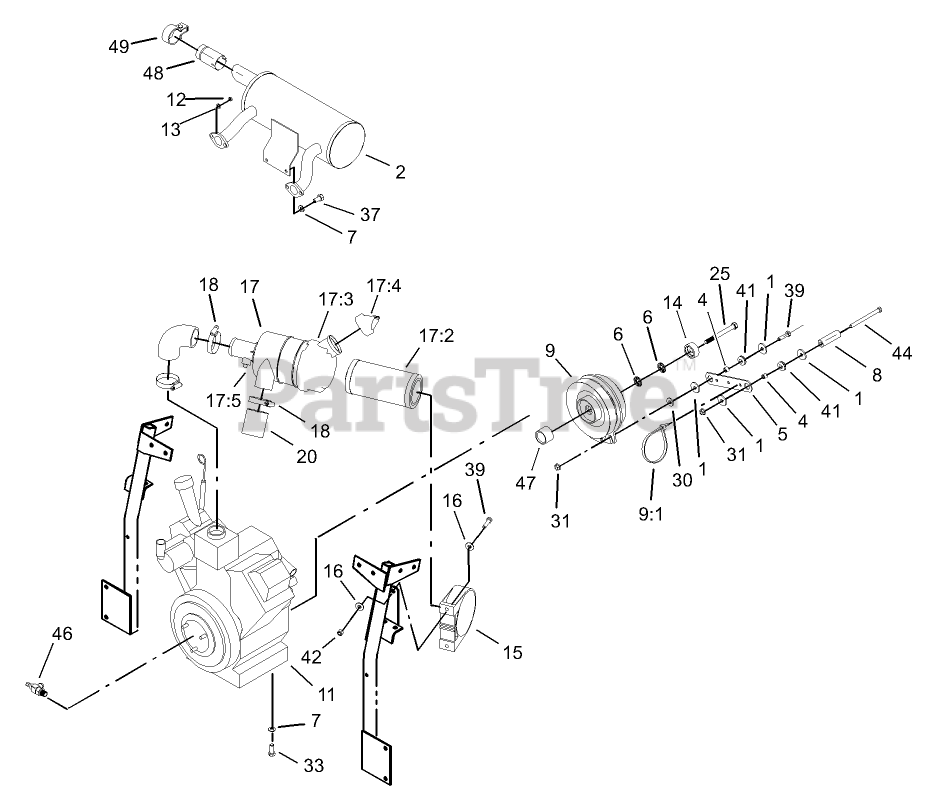

ENGINE, CLUTCH AND AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

2

Toro 103-2759

MUFFLER

$314.99

$

Usually ships in 3-6 days

0

4

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

5

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 4 left!

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

8

Toro 1-643008

SPACER-ANCHOR, CLUTCH

$14.99

$

Usually ships in 3-6 days

0

9

Toro 103-1364

Clutch

$711.99

$

Usually ships in 3-6 days

0

9:1

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

11

Engine-Kawasaki, Fd750d-As03

Note: Not serviced separately

$

$

Not available

12

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 4 left!

0

13

Toro 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

14

Toro 103-0152

KEEPER-CLUTCH

$12.99

$

In Stock, only 4 left!

0

15

Toro 95-5806

BRACKET-MOUNTING

$28.99

$

Usually ships in 3-6 days

0

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 95-5805

AIR CLEANER ASM

$161.99

$

In Stock, only 1 left!

0

17:2

Toro 93-2195

FILTER
(Superseded to 108-3811)

$23.99

$

In Stock, Qty 20+

0

17:3

Toro 94-3652

COVER ASM

$96.99

$

In Stock, only 4 left!

0

17:4

Toro 94-1414

VALVE-VACUATOR

$

$

Currently unavailable

17:5

Toro 285-17

PLUG-PIPE

$2.99

$

Usually ships in 3-6 days

0

18

Toro 1-643009

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

20

Toro 1-643084

HOSE-INLET, AIR

$23.99

$

Usually ships in 3-6 days

0

25

Toro 48-7570

SCREW-HH

$9.49

$

In Stock, only 1 left!

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

37

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

41

Toro 1-633630

GROMMET

$5.49

$

In Stock, Qty 20+

0

42

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 3 left!

0

46

Toro 103-3068

Valve-Drain, Oil

$108.99

$

Usually ships in 3-6 days

0

47

Toro 103-0114

SPACER-CLUTCH

$33.99

$

Usually ships in 3-6 days

0

48

Toro 103-1511

ARRESTOR-SPARK

$

$

Not available

49

Toro 103-1512

CLAMP-MUFFLER

$28.99

$

Usually ships in 3-6 days

0
