74228 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) ENGINE CONTROLS ASSEMBLY (ENGINE: KOHLER CH25S PS-68606) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

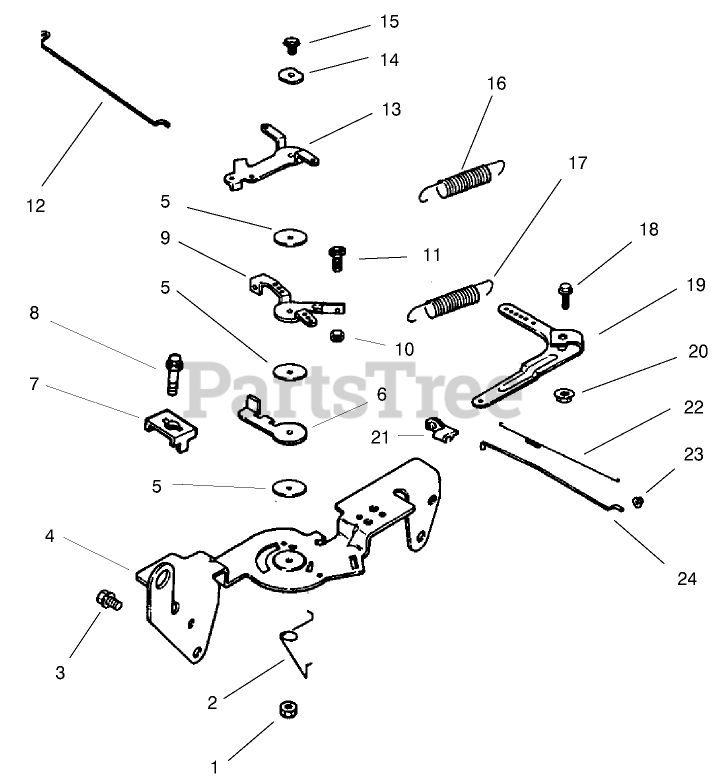

ENGINE CONTROLS ASSEMBLY (ENGINE: KOHLER CH25S PS-68606) Parts Diagram

  • Title
1

Kohler M-0547050

Nut
(Superseded to M-547050-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 10

0

2

2408903

Spring-Choke Return

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler M-0645016

Screw
(Superseded to M-645016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 20+

0

4

Kohler 24 126 56

Bracket-Control
(Superseded to 24 126 56-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.99

$

Usually ships in 2-5 days

0

5

Kohler 24 468 01

Washer
(Superseded to 24 468 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 10

0

6

Kohler 24 090 07

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 5

0

7

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 7

0

8

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 15

0

9

2409003

Lever-Throttle Control

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler M-0446030

Nut
(Superseded to M-446030-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 12

0

11

Kohler M-0401030

Screw
(Superseded to M-401030-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 4 left!

0

12

Kohler 24 079 02

Linkage-Choke
(Superseded to 24 079 66-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 11

0

13

Kohler 24 090 05

Lever-Choke
(Superseded to 24 090 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 10

0

14

Kohler 41 468 03

Washer-Wave
(Superseded to 41 468 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 9

0

15

Kohler M-0545020

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

2408938

Spring-Throttle Limiter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

Kohler 24 089 15

Carriage Bolt
(Superseded to 24 089 15-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 1 left!

0

18

Kohler SM-0642025

Screw
(Superseded to SM-642025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

19

2409014

Lever-Govenor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler M-0641060

Nut
(Superseded to M-641060)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 19

0

21

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 20+

0

22

Kohler 24 089 01

Spring-Linkage
(Superseded to 24 089 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, Qty 8

0

23

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 20+

0

24

Kohler 24 079 01
