74228 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) EXHAUST ASSEMBLY (ENGINE: KOHLER CH25S PS-68606) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

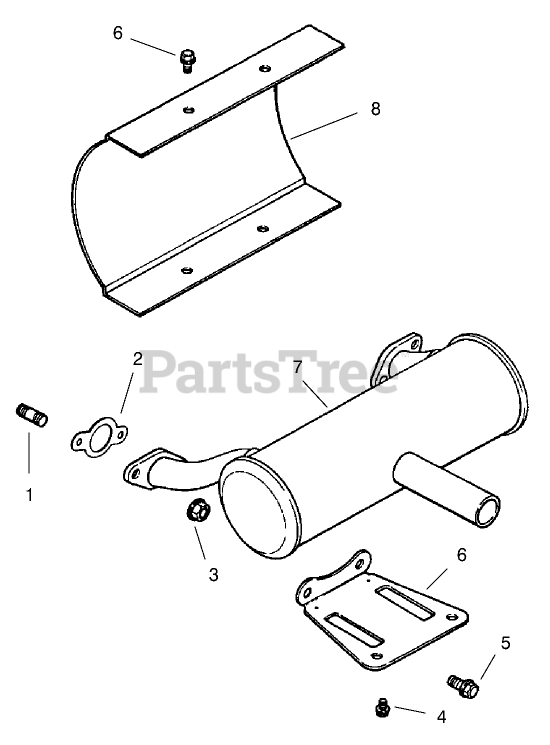

EXHAUST ASSEMBLY (ENGINE: KOHLER CH25S PS-68606) Parts Diagram

  • Title

1

Kohler 25 072 04

Stud
(Superseded to 25 072 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 20+

0

2

Kohler 24 041 02

Gaskt-Exhaust
(Superseded to 24 041 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler M-0841080

Nut
(Superseded to M-841080)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

4

Kohler M-0650012

Screw
(Superseded to M-650012-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

5

Kohler M-0839020

Screw, tank bracket - starter end
(Superseded to M-839020-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

6

2412612

Bracket-Muffler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

2406817

Screw-M5X1.25X45

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 24 314 04

Shield-Heat
(Superseded to 24 314 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$40.99

$

In Stock, only 1 left!

0

Kohler 24 522 85

Block-Short
(Superseded to 24 522 200)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2103.99

$

Usually ships in 2-5 days

0

Kohler 24 522 85

Block-Short
(Superseded to 24 522 200)

Note: Not illustrated

$2103.99

$

Usually ships in 2-5 days

0

2478201

Miniblock

Note: Not illustrated

$

$

Not available

2478201

Miniblock

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 54 755 23

Gasket Set
(Superseded to 54 755 23-S)

Note: Not illustrated

$205.99

$

Usually ships in 2-5 days

0

Kohler 54 755 23

Gasket Set
(Superseded to 54 755 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$205.99

$

Usually ships in 2-5 days

0
